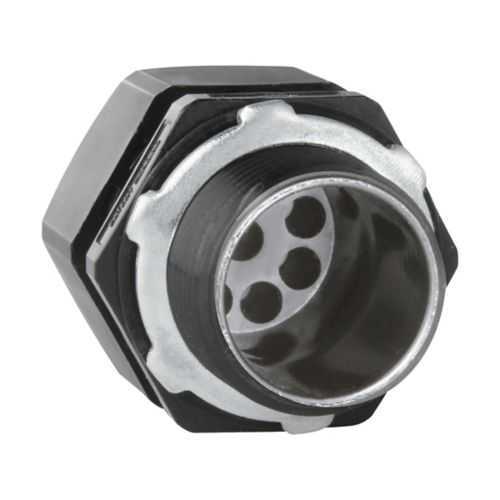

Eaton NCGS5117 Solar Cord Grip - IP68, 1-1/2 in
Part Number: NCGS5117
Quick Summary
NCGS5117 is a solar cord grip designed to seal and strain-relieve PV cables in outdoor photovoltaic installations. Users frequently contend with ingress protection and cable movement in harsh outdoor environments, risking electrical faults and downtime. It meets IP68 ingress protection, NEC/CEC standards for PV wiring, and UL certification signals for non-metallic portable cord connectors, enhancing compliance confidence. The nylon construction and eleven-hole entry support 1000V PV cable configurations, while the 1-1/2 inch trade size and accepts #10–#12 AWG wires simplify installation, reduce field adjustments, and lower total cost of ownership over the system life. This combination supports faster commissioning, reduced maintenance, and longer service life for commercial solar projects.
Product Information
Extended Description
NCGS5117 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCGS solar cord grip, Hole cable diameter: 7 mm, Nylon, 11 holes, 1-1/2", #12 AWG, #10 AWG, 1000V PV cable
Product Name
Eaton Crouse-Hinds series NCGS solar cord grip
Catalog Number
NCGS5117
UPC
662277077361
Product Length/Depth
2.81 in
Product Height
2.48 in
Product Width
2.73 in
Product Weight
0.23 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP68
Trade size
1-1/2"
Material
Nylon
Number of holes
Eleven-hole
Hole cable diameter
7 mm
Wire type
1000V PV cable
Wire size
#10 AWG #12 AWG
Crouse-Hinds series NCGS catalog page
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
Eaton Specification Sheet - NCGS5117
Feature: Nylon construction provides rugged durability with UV and environmental resistance. Business Impact: In outdoor solar arrays, this reduces cracking and deterioration, cutting field service time. Application: Ideal for 1000V PV cable configurations using #10–#12 AWG wires. Feature: Eleven-hole entry design enables flexible wiring layouts. Business Impact: Streamlines complex string connections, lowering installation time and errors. Application: Suitable for multi-cable PV string connections in tight enclosures. Feature: IP68 ingress protection guarantees water and dust exclusion. Business Impact: Improves uptime in harsh climates, reducing unplanned outages. Application: Outdoor installations exposed to rain, dust, and humidity. Feature: NEC/CEC standards compliance. Business Impact: Supports code-compliant installations, easing audits and permit processes. Application: Commercial and utility-scale PV projects requiring formal code adherence. Feature: UL certification for non-metallic portable cord connectors. Business Impact: Simplifies procurement and qualification processes, reducing vendor risk. Application: Safe integration in construction and service work environments. Feature: Nylon material with 1-1/2 inch trade size and 7 mm hole cable diameter compatibility. Business Impact: Facilitates fast, vibration-resistant mounting and reliable strain relief. Application: Standardized PV cabling practices in outdoor systems.
Get a Quick Quote for a Eaton Crouse-Hinds NCGS5117
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCGS5117?
Enquire Now
FAQs
NCGS5117 is specifically designed for a 1-1/2 inch trade size and accepts #10 and #12 AWG conductors, making it straightforward to pair with common 1000V PV cable assemblies. The eleven-hole head supports flexible termination options, reducing field rewiring and charge times during commissioning.
IP68 delivers premium ingress protection against dust and water ingress, which translates to lower risk of cable corrosion, reduced maintenance cycles, and higher uptime for outdoor photovoltaic deployments in rain, humidity, or dusty environments.
NEC/CEC compliance ensures PV wiring practices meet regional electrical codes, facilitating permitting and safe operation, while UL certification validates safety for non-metallic portable cord connectors, reducing procurement risk and supporting faster project approvals.
The eleven-hole configuration allows multiple cables to be routed through a single grip, enabling simpler string connections and future expansion. This reduces the number of termination points and speeds up maintenance without sacrificing strain relief or protection.
Ensure proper cable diameter compatibility (7 mm entry) and secure the grip to a correctly sized conduit or enclosure. Use fresh seals and verify IP68 integrity after mechanical stress, periodic re-torqueing as per service guidelines, and inspect for UV or weather-induced wear during routine maintenance.
