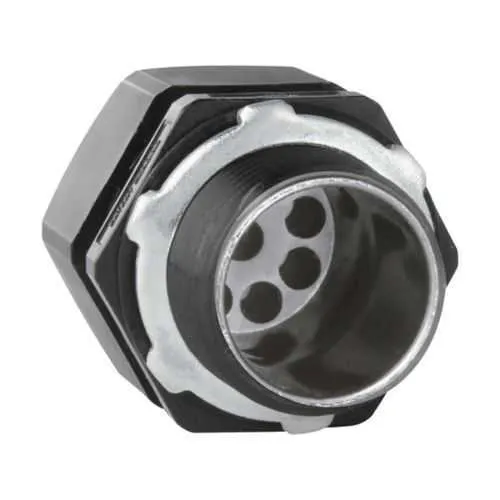

Eaton NCGS521 Solar Cord Grip - IP68, Nylon, 1-1/2"
Part Number: NCGS521
Quick Summary
NCGS521 solar cord grip secures solar cable entries in outdoor electrical enclosures. For engineers wrestling with weatherproofing, strain relief, and reliable IP protection in harsh environments, installation can be time consuming without a proven solution. IP68 ingress protection, NEC/CEC compliance, and suitability for ordinary/non-hazardous locations ensure robust field performance. This nylon, 1-1/2" trade-size cord grip reduces maintenance and downtime by providing durable sealing for USE-2 cables (#12/#10 AWG), while simplifying installation in dense solar arrays. Its non-metallic body aids electrical insulation and reduces galvanic corrosion when paired with aluminum components. By standardizing on NCGS521, procurement teams gain consistency across projects and improve compliance tracking.
Product Information
Extended Description
NCGS521 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCGS solar cord grip, Hole cable diameter: 5 mm, Nylon, 21 holes, 1-1/2", #12 AWG, #10 AWG, USE-2
Product Name
Eaton Crouse-Hinds series NCGS solar cord grip
Catalog Number
NCGS521
UPC
662277077354
Product Length/Depth
2.81 in
Product Height
2.48 in
Product Width
2.73 in
Product Weight
0.42 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP68
Trade size
1-1/2"
Material
Nylon
Number of holes
Twenty one-hole
Hole cable diameter
5 mm
Wire type
USE-2
Wire size
#12 AWG #10 AWG
Crouse-Hinds series NCGS catalog page
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
Eaton Specification Sheet - NCGS521
Feature: Nylon construction provides excellent electrical insulation and corrosion resistance. Business Impact: Longer service life in outdoor, dusty, or wet environments translates to fewer field replacements and lower maintenance costs. Application: Ideal for outdoor solar enclosures where reliable, weatherproof cord entry is essential. Feature: 21-hole configuration supports multiple cables. Business Impact: Enables consolidated strain relief and cleaner junctions, reducing assembly time. Application: Suitable for complex solar combiner boxes and string infeed connections. Feature: 5 mm hole diameter and USE-2 compatibility. Business Impact: Supports common solar cables (#12 AWG, #10 AWG), enabling plug-and-play wiring and easier field terminations. Application: Streamlines connector design in PV installations. Feature: IP68 rating. Business Impact: Provides high-level protection against water ingress in rain, wash-downs, and dusty sites. Application: Outdoor PV racks and field-mounted equipment. Feature: 1-1/2" trade size. Business Impact: Aligns with standard conduit and gland fittings, simplifying procurement and installation. Application: New builds and retrofit projects alike. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location suitability. Business Impact: Reduces regulatory risk and accelerates approvals for utility-scale and commercial deployments. Application: Widely accepted in commercial and solar-industrial projects. These combined attributes support lower lifecycle costs, fewer site visits, and predictable performance across diverse operating conditions.
Get a Quick Quote for a Eaton Crouse-Hinds NCGS521
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCGS521?
Enquire Now
FAQs
Install the NCGS521 by selecting the 1-1/2" trade-size grip, routing USE-2 cables (#12 or #10 AWG) through the 21-hole pattern, and securing with appropriate gland hardware. Ensure cable entries are clean and the seal is seated completely to maintain IP68 protection. Use compatible connectors and verify NEC/CEC compliance before commissioning.
IP68 ensures robust protection against water ingress and dust ingress in harsh outdoor conditions, which is critical for solar enclosures exposed to rain, wash-downs, and desert dust. This rating translates to lower maintenance costs and fewer moisture-related faults over the system’s lifetime.
Yes. The NCGS521 is designed for 1-1/2" trade-size applications and supports multiple wires through its 21-hole array. Its nylon body provides insulation and resistance to environmental stress, making it compatible with standard conduit and gland fittings used in solar installations.
NCGS521 is NEC/CEC compliant and rated for Ordinary/Non-Hazardous Locations. Its UL-related certifications can be referenced via the provided UL certification pages, and it is designed to meet typical solar field safety and performance requirements.
The nylon construction and IP68 sealing reduce maintenance visits and extend component life in outdoor environments. The 21-hole pattern allows consolidated cable management, lowering assembly time, while NEC/CEC compliance minimizes regulatory risk, leading to faster project approvals and lower total cost of ownership.
