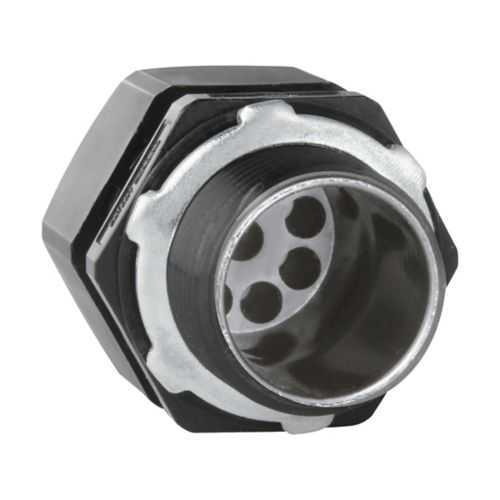

Eaton NCGS598 Solar Cord Grip - IP68, 1000V PV
Part Number: NCGS598
Quick Summary
NCGS598 provides a rugged solar cord grip for secure cable entry in PV junctions. Professionals often face sealing challenges and field downtime when outdoor cabling is exposed to weather, vibration, and UV. It meets IP68 ingress protection and NEC/CEC standards, with UL Canadian certification, ensuring safe, code-compliant solar installations across varied climates. The nylon construction with a nine-hole design and a 1-1/2 inch trade size accommodates 8 mm cables and 1000V PV conductors, delivering reliable strain relief and simplified termination. By optimizing seal engagement and cable retention, it reduces maintenance costs and downtime while improving system reliability and worker safety in rooftop and ground-mount arrays.
Product Information
Extended Description
NCGS598 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCGS solar cord grip, Hole cable diameter: 8 mm, Nylon, 9 holes, 1-1/2", #12 AWG, #10 AWG, #8 AWG, 1000V PV cable
Product Name
Eaton Crouse-Hinds series NCGS solar cord grip
Catalog Number
NCGS598
UPC
662277077347
Product Length/Depth
2.81 in
Product Height
2.48 in
Product Width
2.73 in
Product Weight
0.31 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP68
Trade size
1-1/2"
Material
Nylon
Number of holes
Nine-hole
Hole cable diameter
8 mm
Wire type
1000V PV cable
Wire size
#10 AWG #12 AWG #8 AWG
Crouse-Hinds series NCGS catalog page
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors Canadian certification
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors Canadian certification
Eaton Specification Sheet - NCGS598
Feature: Nylon nine-hole solar cord grip with 1-1/2 inch trade size and 8 mm hole diameter. Business Impact: Provides versatile wire compatibility (#8, #10, #12 AWG) and robust seal integrity, reducing field replacements and project delays. Application: Ideal for PV cabling entering outdoor enclosures, minimizing rework and enabling faster commissioning. Feature: IP68 ingress protection combined with NEC/CEC compliance. Business Impact: Delivers reliable performance in weather-exposed locations and non-hazardous environments, meeting critical safety and code requirements. Application: Suitable for rooftop and ground-mount solar arrays where environmental exposure is expected. Feature: Nylon body provides corrosion resistance and lightweight handling. Business Impact: Lowers total cost of ownership by easing installation, reducing tool wear, and aiding long-term durability. Application: Works well in maintenance routines and retrofit projects where weight and ease of handling matter. Feature: Nine-hole design supports multiple conductors, including 1000V PV cables. Business Impact: Streamlines termination and reduces the need for multiple connectors, saving labor costs. Application: Connects high-voltage solar arrays securely in industrial settings. Feature: Comprehensive compatibility with #8, #10, #12 AWG wires. Business Impact: Enhances flexibility for mixed cable configurations and future upgrades. Application: Useful in modular PV systems where wire gauge may vary between runs.
Get a Quick Quote for a Eaton Crouse-Hinds NCGS598
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCGS598?
Enquire Now
FAQs
NC GS598 is designed for a 1-1/2 inch trade size opening and a nine-hole nylon body, accommodating 8 mm cable diameters. It accepts wire sizes #8, #10, and #12 AWG, streamlining installation in standard PV enclosures and reducing the need for multiple grip variants.
Key specs include IP68 ingress protection, 1000V PV cable rating, nylon material, nine-hole configuration, and hole diameter of 8 mm. The product supports #8, #10, and #12 AWG conductors and is rated for ordinary/non-hazardous locations per NEC/CEC standards.
Yes. With IP68 sealing, nylon construction, and 1000V PV cable compatibility, this cord grip is well-suited for roof-mounted and ground-mounted solar installations in harsh environments, providing reliable strain relief and weather sealing for outdoor enclosures.
NCGS598 carries NEC/CEC standards compliance, IP68 ingress protection, ordinary/non-hazardous area classification, and UL Canada certification, ensuring code-compliant operation and cross-border approval for utility-scale and commercial PV projects.
The nylon nine-hole design simplifies cable termination, reduces labor during installation, and improves long-term durability in outdoor conditions. Its reliable seal minimizes seal degradation and downtime, contributing to lower maintenance costs and higher system availability in solar arrays.
