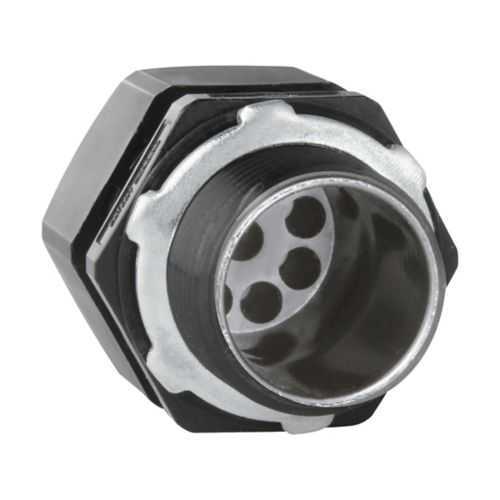

Eaton Crouse-Hinds NCGS6197 Solar Cord Grip - IP68
Part Number: NCGS6197
Quick Summary
NCGS6197 solar cord grip provides rugged cable entry protection for PV installations in outdoor, harsh environments. Engineers often struggle with sealing, cable strain, and space constraints in compact solar junction boxes, leading to leaks or downtime. IP68 ingress protection, NEC/CEC compliance, and Ordinary/Non-Hazardous area classification help ensure reliable operation and code adherence in the field. Designed for a 2-inch nylon body with nineteen holes and a 7 mm cable entry, it accommodates 12 AWG and 10 AWG PV conductors while supporting up to 1000V. The design simplifies installation, reduces field failures, and lowers maintenance costs over the system lifecycle.
Product Information
Extended Description
NCGS6197 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCGS solar cord grip, Hole cable diameter: 7 mm, Nylon, 19 holes, 2", #12 AWG, #10 AWG, 1000V PV cable
Product Name
Eaton Crouse-Hinds series NCGS solar cord grip
Catalog Number
NCGS6197
UPC
662277054584
Product Weight
0.424 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP68
Trade size
2"
Material
Nylon
Number of holes
Nineteen-hole
Hole cable diameter
7 mm
Wire type
1000V PV cable
Wire size
#12 AWG #10 AWG
Crouse-Hinds series NCGS catalog page
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
NCG, NCGB and NCGS Non-metallic Portable Cord Connectors UL certification
Eaton Specification Sheet - NCGS6197
Feature: 2-inch trade size nylon body for a compact, durable entry point. Business Impact: Improves space utilization in crowded outdoor enclosures while delivering reliable mechanical protection against moisture and dust. Application: PV combiner boxes, outdoor inverters, and racking systems where a robust cord grip is required. Feature: Nineteen-hole configuration with a 7 mm hole diameter and compatibility with #12 AWG and #10 AWG wires. Business Impact: Supports multiple conductor arrangements in a single entry, reducing parts inventory and installation time. Application: Large-diameter PV cable runs and multi-string arrays where diverse conductors converge. Feature: 1000V PV cable rating with IP68 ingress protection. Business Impact: Enables safe, code-compliant outdoor installations in harsh weather, minimizing ingress-related failures and service calls. Application: Outdoor PV arrays, weather-exposed equipment, and field junctions. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous area classification. Business Impact: Streamlines project approval, reduces risk of non-compliance penalties, and simplifies contractor qualification. Application: North American solar projects in non-hazardous locations. Feature: Lightweight construction and UL-certification for non-metallic portable cord connectors. Business Impact: Lower handling effort during installation and verified reliability for field technicians. Application: Routine maintenance where ease-of-use matters. Feature: 7 mm hole diameter and 2-inch trade size coupled with 0.424 lb weight. Business Impact: Easy fitment into standard enclosures without rework or oversizing. Application: Retrofit installations and new builds seeking standardization across equipment fleets.
Get a Quick Quote for a Eaton Crouse-Hinds NCGS6197
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCGS6197?
Enquire Now
FAQs
To install NCGS6197, ensure the entering cables meet the 7 mm diameter specification and align them with the 2-inch trade-size body. Route the PV conductors through the nineteen-hole pattern, tighten the grip mechanisms securely, and verify IP68 sealing after assembly. Check that the conductors used are #12 or #10 AWG and rated for 1000V PV service. Perform a leak-and-dust test before commissioning.
Yes. The NCGS6197 is rated IP68 for ingress protection and is intended for Ordinary/Non-Hazardous Locations per NEC/CEC. Its nylon body provides UV resistance and weather durability, making it well-suited for outdoor PV arrays, inverters, and field junction boxes where moisture, dust, and temperature cycling are concerns.
NCGS6197 supports 12 AWG and 10 AWG PV cables with a 7 mm entry. It is designed for up to 1000V PV applications and uses a nineteen-hole configuration to accommodate multiple conductors, simplifying multi-string connections in solar assemblies.
Yes. The product is designed to be NEC/CEC compliant and suitable for Ordinary/Non-Hazardous locations. It is also documented with UL certifications for related non-metallic portable cord connectors, supporting regulatory qualification and project approvals in North American solar deployments.
The NCGS6197 reduces maintenance through robust IP68 sealing and a durable nylon body, lowering ingress-related field failures. Its compatibility with standard 2-inch enclosures and easy installation can shorten labor time, while its long service life and adherence to NEC/CEC standards contribute to favorable total cost of ownership in solar projects.
