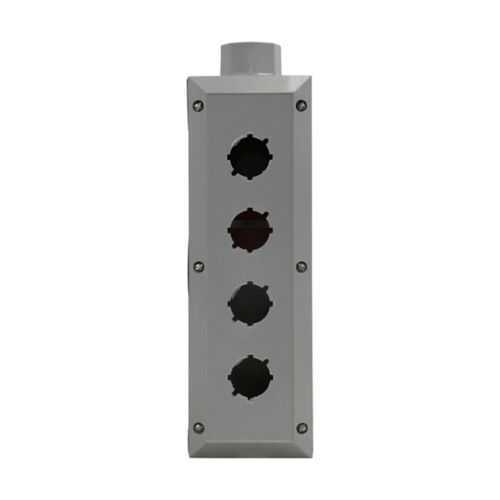

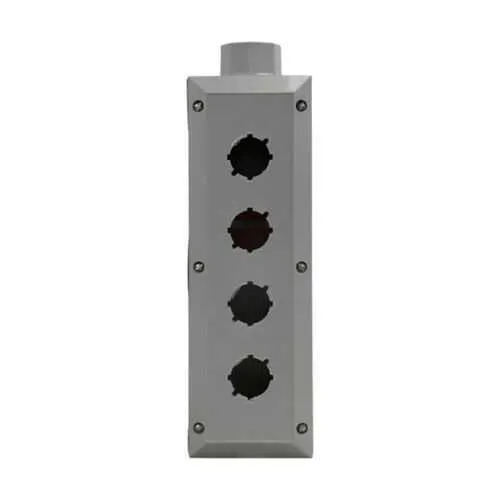

Eaton Crouse-Hinds NCS22 Enclosure - Hazardous Locations
Part Number: NCS22
Quick Summary
Eaton Crouse-Hinds NCS22 enclosure protects electrical components in hazardous locations, enabling safe, compliant control systems for harsh industrial environments. In field deployments, downtime from ingress, corrosion, or miswired terminations can derail production schedules; this enclosure mitigates those risks with robust shielding and precise terminations. It carries NEC/CEC compliance with Class I, Division 2 ratings and a demanding NEMA profile that includes 3, 4X, 7, and 12 protection. Designed for two circuits at a 3/4" trade size, it supports compact automation layouts while preserving accessibility for maintenance. This combination translates to reduced outage windows, lower maintenance costs, and predictable performance across multiple sites. For engineers and procurement teams, it simplifies sourcing without compromising safety or reliability.
Product Information
Extended Description
NCS22 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCS enclosure, 2, Dead end, 3/4"
Product Name
Eaton Crouse-Hinds series NCS enclosure
Catalog Number
NCS22
UPC
782274088686
Product Length/Depth
3.81 in
Product Height
7.25 in
Product Width
4.38 in
Product Weight
2.05 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3 4X 7 12
Number of circuits
2
Style
Dead end
Trade size
3/4"
N2S and N2SC Series Non-metallic Control Stations catalog page
N2S and N2SC Non-metallic Hazardous Area Control Stations Canadian certification
N2S and N2SC Non-metallic Hazardous Area Control Stations Canadian certification
Eaton Specification Sheet - NCS22
Hazardous-location integrity → Reduces risk of arc events and ingress, translating to safer operations and lower incident costs. In practice, the NCS22 enclosure protects two circuits in Class I, Division 2 environments, delivering reliable containment for control components in chemical plants and refining facilities. The business impact is clear: extended equipment life, fewer field repairs, and lower total cost of ownership in regulated sites. Application: ideal for compact control panels where space is limited but safety and compliance cannot be compromised. 3/4" trade size compatibility and dead-end style simplify field terminations while maintaining robust protection against dust, moisture, and corrosive atmospheres. Installation is straightforward, supporting quick panel upgrades and consistent performance across shifts. 2 circuits and modular access improve maintenance planning and reduce downtime during routine inspections.
Get a Quick Quote for a Eaton Crouse-Hinds NCS22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCS22?
Enquire Now
FAQs
To install the NCS22 in a hazardous location, follow the NEC/CEC guidelines for Class I, Division 2 environments. Mount the enclosure securely to a rated support surface, route conduit through approved entries, and terminate conductors with appropriate rated fittings. Verify NEMA protection (3, 4X, 7, 12) is maintained by sealing all joints and using gaskets designed for hazardous locations. Confirm compatibility with 3/4" trade size components and ensure proper labeling for safety compliance.
NCS22 carries NEC/CEC compliance and a NEC hazardous rating of Class I, Division 2. It is rated by NEMA for 3, 4X, 7, and 12 service, providing protection from dust, moisture, corrosion, and possible explosive atmospheres. The enclosure is designed for hazardous location installations, reducing regulatory risk and helping streamline audit reviews for industrial facilities.
Yes. The NCS22 is specifically rated for Class I, Division 2 environments, aligning with NEC/CEC requirements for hazardous locations. This suitability ensures safe operation of electrical components inside the enclosure in areas where flammable atmospheres may be present, while still enabling reliable access for maintenance and inspection.
The NCS22 enclosure dimensions are 3.81 in depth, 7.25 in height, and 4.38 in width, with a weight of 2.05 lb. These compact measurements support tight panel layouts while maintaining sufficient internal space for two circuits and standard terminations in hazardous locations.
The NCS22 delivers safety, compliance, and reliability in hazardous locations, reducing downtime and maintenance costs through robust protection and dependable performance. Its compact size, two-circuit capacity, and 3/4" trade size simplify installation and future upgrades, while NEC/CEC and NEMA ratings help meet regulatory requirements and improve project ROI across multiple sites.
