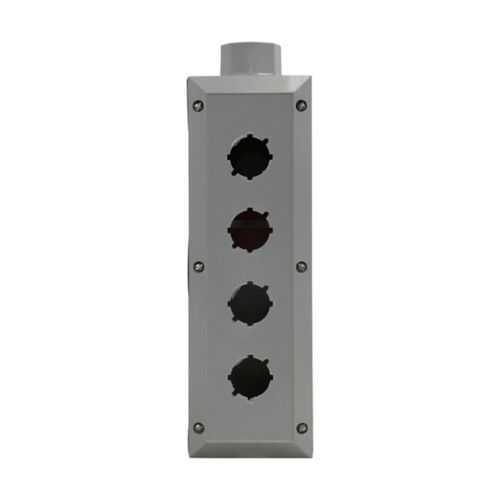

Eaton Crouse-Hinds NCS23 Enclosure - Class I Division 2
Part Number: NCS23
Quick Summary
NCS23 enclosure provides rugged protection for electrical control components in hazardous environments. This compact dead-end enclosure is designed for 3/4 inch trade-size conductors, delivering reliable enclosure integrity in demanding automation applications. For engineers and maintenance teams, the challenge is meeting NEC/CEC compliance while keeping installation straightforward and downtime to a minimum. The NCS23 supports NEC Class I, Division 2 ratings and NEMA ratings of 3, 4X, 7, and 12, aligning with industry best practices for hazardous locations and corrosive environments. By combining certified protection with a compact footprint, it enables faster panel builds, easier field service, and safer operations. This enclosure also integrates smoothly with standard control stations, reducing lifecycle costs and improving uptime for critical processes.
Product Information
Extended Description
NCS23 Eaton Crouse-Hinds: Eaton Crouse-Hinds series NCS enclosure, 3, Dead end, 3/4"
Product Name
Eaton Crouse-Hinds series NCS enclosure
Catalog Number
NCS23
UPC
782274088693
Product Length/Depth
3.81 in
Product Height
11.75 in
Product Width
4.38 in
Product Weight
2.35 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2
NEMA Rating
3 4X 7 12
Number of circuits
3
Style
Dead end
Trade size
3/4"
N2S and N2SC Series Non-metallic Control Stations catalog page
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
N2S and N2SC Non-metallic Hazardous Area Control Stations UL certification
Eaton Specification Sheet - NCS23
Feature: Compact 3/4 in trade-size dead-end enclosure enables tight panel layouts. Business Impact: Frees space in control cabinets, reduces wiring congestion, and simplifies field terminations. Application: Ideal for compact automation panels in hazardous locations requiring Class I, Division 2 compliance and NEC/CEC alignment. Feature: NEMA ratings including 3, 4X, 7, 12 provide robust environmental protection. Business Impact: Enhances uptime in wet, corrosive, and demanding environments, lowering maintenance costs. Application: Chemical, oil and gas, and offshore facilities where enclosure integrity is critical. Feature: 3 circuits in a 4X-rated enclosure support modular control wiring with durable dead-end style design. Business Impact: Streamlines panel expansions and upgrades, reducing per-circuit wiring time. Application: Industrial automation stations with multiple control relays and sensors. Feature: Clear installation footprint with defined dimensions and weight (11.75 in H, 4.38 in W, 3.81 in D, 2.35 lb). Business Impact: Predictable fitment, easier mounting, and safer handling during field installs. Application: Retrofit and new installations in restricted spaces. Feature: NEC/CEC compliance and Class I, Division 2 rating. Business Impact: Ensures regulatory alignment, simplifies approval cycles, and minimizes risk of non-compliance. Application: Panels serving hazardous locations in regulated facilities. Feature: Compatible with standard control components and fast assembly practices. Business Impact: Reduces commissioning time and training needs, improving project timelines. Application: OEMs and integrators building hazardous-area control systems.
Get a Quick Quote for a Eaton Crouse-Hinds NCS23
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NCS23?
Enquire Now
FAQs
NCS23 installs as a dead-end, 3/4 in trade-size enclosure designed for Class I Division 2. Mounting should follow standard enclosure practices with appropriate seals, gaskets, and proper strain-relief for wiring. Maintain minimum clearance per NEC/CEC guidelines and use compatible conduit fittings to preserve NEMA ratings. Ensure wiring conforms to the 3-circuit configuration and dead-end design for optimal performance.
NCS23 supports 3 circuits in a 3/4 inch trade-size dead-end enclosure, with dimensions of 11.75 inches in height, 4.38 inches in width, and 3.81 inches in depth, weighing 2.35 pounds. It carries NEC/CEC compliance and a Class I Division 2 hazardous location rating, with NEMA protection ratings of 3, 4X, 7, and 12 for versatile industrial use.
Yes. The NCS23 enclosure is designed to meet NEC/CEC standards and a Class I, Division 2 hazardous location rating, along with NEMA ratings 3, 4X, 7, 12. This combination ensures regulatory compliance and robust protection for automation panels operating in hazardous environments.
NCS23 is ideal for hazardous-location control panels in chemical processing, oil and gas facilities, and other industrial settings requiring Class I Division 2 protection. Its compact form factor and 3/4 in trade-size capability suit small to medium control circuits, while its NEMA ratings support rugged, outdoor or corrosive environments.
The NCS23 delivers improved uptime by reducing exposure risk in hazardous locations and simplifying maintenance through its compact, durable design. Regular inspections of seals and gaskets, plus compliance with NEC/CEC requirements, lower compliance risk and potential downtime costs. The enclosure’s efficiency also shortens installation time and minimizes field reworks, improving overall return on investment.
