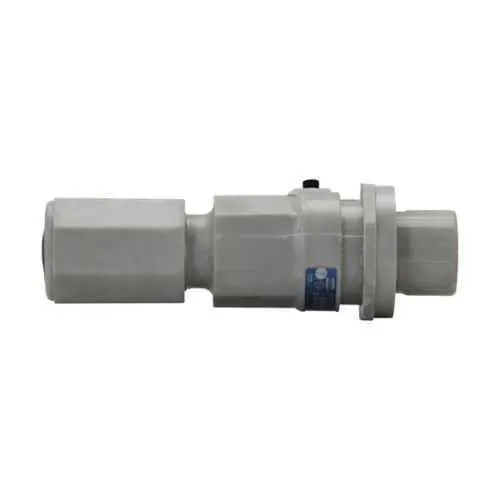

Eaton Crouse-Hinds NPJ3483 Plug - 30A, 4X rating
Part Number: NPJ3483
Quick Summary
NPJ3483 plug from Eaton Crouse-Hinds delivers rugged, three-wire four-pole power connections for harsh industrial environments. Maintenance teams often battle moisture, dust, and vibration that threaten uptime and safety; a reliable plug-and-receptacle solution is essential. This NPJ3483 carries critical certifications including NEC/CEC compliance, a NEMA 4X enclosure rating, and UL certification for NPJ/NPQ/NPR families, providing peace of mind in demanding plants. Built with Krydon fiberglass-reinforced polyester, it combines durability with lightweight handling, reducing crew fatigue during install. For manufacturers and end users, the combination of a robust housing, wide voltage capabilities, and straightforward installation translates to lower replacement costs and improved line uptime, especially in compact control panels and feed-through assemblies.
Product Information
Extended Description
NPJ3483 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite NPJ plug, 30A, Three-wire, four-pole, 0.55-0.70", 50-400 Hz, Style 2, Krydon fiberglass-reinforced polyester, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite NPJ plug
Catalog Number
NPJ3483
UPC
782274746074
Product Length/Depth
8.5 in
Product Height
3.19 in
Product Width
3.19 in
Product Weight
1.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Amperage Rating
30A
Grounding type
Style 2
Configuration
Three-wire, four-pole
Cord diameter
0.55-0.70"
Material
Krydon fiberglass-reinforced polyester
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Eaton Crouse-Hinds NPJ3483 3D drawing
Arktite Nonmetallic Plugs, Receptacles and Connectors catalog page
Arktite Nonmetallic Plugs, Receptacles and Connectors UL certification (NPJ, NPQ and NPR)
IF 865 - NPJ Series Arktite Heavy Duty Plug, Model M1, Style 2, 30, 60, 100 Amp
Eaton Specification Sheet - NPJ3483
Feature → Business Impact → Application: Krydon fiberglass-reinforced polyester housing delivers superior chemical and impact resistance while remaining lighter than metal alternatives, reducing labor time during installation and minimizing corrosion-related maintenance in washdown zones; Application includes meat processing and chemical plants where enclosure integrity is critical. Feature → Three-wire, four-pole configuration provides a proven grounding scheme and simplified wiring, lowering miswiring risk and speeding electrical panel assembly; Application spans motor starters and automated conveyors in packaging lines. Feature → 30A amperage rating supports substantial loads without overdesign, improving energy efficiency and reducing unnecessary circuit protection complexity; Application suitable for smaller drives and high-current feeders in machining centers. Feature → 600 Vac/250 Vdc voltage rating enables compatibility with varied power systems across regions, supporting global OEMs and site upgrades; Application includes multi-voltage installations in international facilities. Feature → 50 to 400 Hz frequency rating covers broad electrical standards, ensuring compatibility with both steady-state and variable-frequency drive applications; Application includes HVAC and process lines with mixed-frequency requirements. Feature → 0.55–0.70 inch cord diameter compatibility ensures dependable mating with common industrial cables, reducing installation rework and inventory gaps; Application includes retrofit projects and new line builds where cable sizing is a constraint. Feature → NEMA 4X enclosure rating and ordinary/non-hazardous area classification provide reliable protection in wet, dusty environments while preserving ease of maintenance; Application suits washdown zones and general purpose industrial environments where cleanup is frequent. The NPJ3483’s combination of a Krydon housing, Arktite nonmetallic design, and Style 2 grounding supports fast, safe field upgrades and consistent performance in demanding facilities.
Get a Quick Quote for a Eaton Crouse-Hinds NPJ3483
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NPJ3483?
Enquire Now
FAQs
The NPJ3483 is designed for use with Arktite nonmetallic plugs and receptacles in standard control panels and equipment enclosures. Its Krydon housing provides robust protection in ordinary/non-hazardous locations with a NEMA 4X enclosure, simplifying field mounting and mating with compatible NPJ-series receptacles.
NPJ3483 supports up to 30A with a voltage rating of 600 Vac / 250 Vdc and a frequency range of 50 to 400 Hz. This makes it suitable for high-current motor connections and global facilities that operate across different power standards.
Yes. The NEMA 4X rating provides ingress protection against dust and water in washdown environments, and the IP-safe Krydon housing resists harsh chemicals, making it a solid choice for outdoor feeders and plant floor equipment in ordinary locations.
NPJ3483 aligns with NEC/CEC standards and carries a NEMA 4X enclosure rating. UL certification is available for the NPJ/NPQ/NPR families, supporting compliance programs and procurement approval in regulated industries.
With a durable Krydon body, corrosion resistance, and simple three-wire four-pole wiring, NPJ3483 minimizes downtime and maintenance, reduces replacement cycles, and simplifies spares inventory, delivering measurable uptime gains and lower lifecycle costs for critical plant connections.
