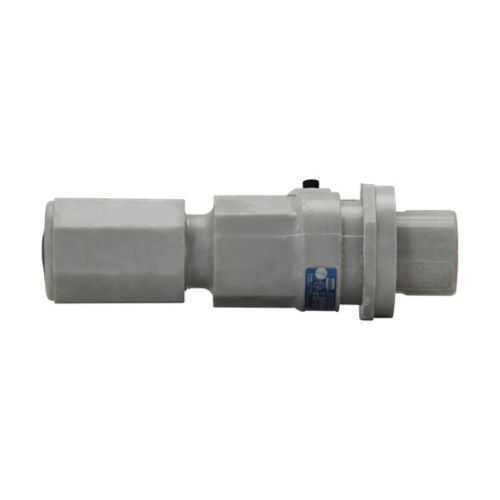

Eaton Crouse-Hinds NPJ6384 Arktite NPJ Plug - 4X 60A
Part Number: NPJ6384
Quick Summary
NPJ6384 plug from Eaton Crouse-Hinds Arktite is a rugged two-wire, three-pole connector for heavy-duty equipment. Engineers often battle moisture, dust, and impact in demanding locations, risking downtime and costly repairs. This NPJ6384 is NEMA 4X rated, NEC/CEC compliant, and UL listed for the NPJ family, ensuring reliable performance in ordinary and washdown environments. Designed for fast, safe installation and broad compatibility with Arktite nonmetallic plugs, receptacles, and connectors, it supports efficient maintenance programs.
Product Information
Extended Description
NPJ6384 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite NPJ plug, 60A, Two-wire, three-pole, 0.75-1.07", 50-400 Hz, Style 2, Krydon fiberglass-reinforced polyester, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series Arktite NPJ plug
Catalog Number
NPJ6384
UPC
782274746128
Product Length/Depth
9.5 in
Product Height
4 in
Product Width
4 in
Product Weight
2.65 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Amperage Rating
60A
Grounding type
Style 2
Configuration
Two-wire, three-pole
Cord diameter
0.75-1.07"
Material
Krydon fiberglass-reinforced polyester
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Eaton Crouse-Hinds NPJ6384 3D drawing
Arktite Nonmetallic Plugs, Receptacles and Connectors catalog page
Arktite Nonmetallic Plugs, Receptacles and Connectors UL certification (NPJ, NPQ and NPR)
IF 865 - NPJ Series Arktite Heavy Duty Plug, Model M1, Style 2, 30, 60, 100 Amp
Eaton Specification Sheet - NPJ6384
Feature → Business Impact → Application: The NPJ6384 delivers 60A amperage and accepts a 0.75-1.07" cord diameter, enabling secure, high-current connections that minimize heat buildup and failure risk while supporting demanding motor and control circuits in continuous operation. This translates to reduced downtime and predictable performance in manufacturing lines and material handling systems where every minute counts. Application: Heavy-duty power distribution for equipment with large cords in industrial environments. Feature → Business Impact → Application: Krydon fiberglass-reinforced polyester housing provides chemical and impact resistance, driving long service life in challenging settings. This improves maintenance intervals and lowers total cost of ownership for outdoor, washdown, or corrosive environments. Application: Outdoor installations and washdown areas requiring robust enclosure protection. Feature → Business Impact → Application: Voltage and frequency coverage of 600 Vac/250 Vdc and 50 to 400 Hz ensures broad compatibility with motors, drives, and control panels, reducing the need for multiple adapters. Application: General purpose power distribution across varied European and North American systems. Feature → Business Impact → Application: Style 2 grounding and NPJ configuration (Two-wire, Three-pole) simplify safety grounding and mating with compatible NPQ/ NPR receptacles, accelerating installation and enhancing safety. Application: Field assemblies and retrofit projects where quick, reliable connectivity matters. Feature → Business Impact → Application: NEMA 4X rating and Ordinary/Non-Hazardous Location classification provide design and compliance confidence for non-hazard environments, supporting regulatory alignment and faster audits. Application: Facilities with standard, non-hazardous duty locations aiming for durable, code-compliant plugs. Feature → Business Impact → Application: Availability of installation documentation (IF 865 instruction sheet, catalogs, datasheets) reduces field errors and service time. Application: Training and on-site commissioning to shorten project timelines and improve ROI.
Get a Quick Quote for a Eaton Crouse-Hinds NPJ6384
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NPJ6384?
Enquire Now
FAQs
NPJ6384 is a two-wire, three-pole plug designed to mate with Arktite NPQ and NPR nonmetallic components. It supports a cord diameter range of 0.75 to 1.07 inches and a 60 A rating, enabling straightforward field assemblies, safe grounding (Style 2), and consistent, code-compliant connections in industrial facilities.
NPJ6384 provides 60 A amperage, voltage rating of 600 Vac / 250 Vdc, and frequency range 50–400 Hz. It is housed in Krydon fiberglass-reinforced polyester, with a NEMA 4X enclosure suitable for ordinary/non-hazardous locations, ensuring reliable operation in harsh environments.
Yes. With a NEMA 4X enclosure and Ordinary/Non-Hazardous Locations rating, NPJ6384 is well-suited for outdoor, washdown, and non-explosive environments where moisture and ingress protection are critical, while avoiding hazardous locations requirements.
NPJ6384 aligns with NEC/CEC standards and is UL-listed for the Arktite NPJ family, supporting compliant installation in standard industrial settings and simplifying regulatory reviews during audits.
Eaton provides installation instructions (IF 865), catalogs, and the NPJ6384 specification sheet, along with 3D drawings and UL certification references, enabling accurate field installation, quicker commissioning, and better lifecycle cost management.
