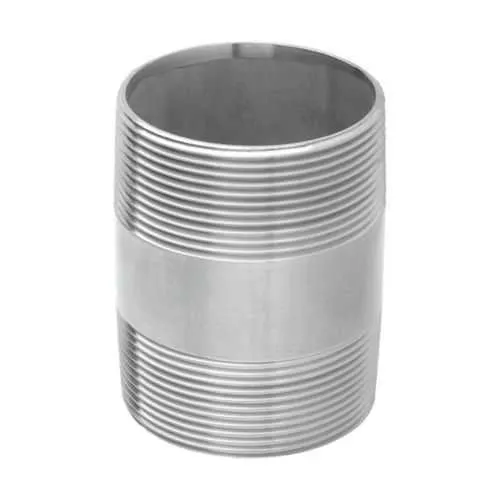

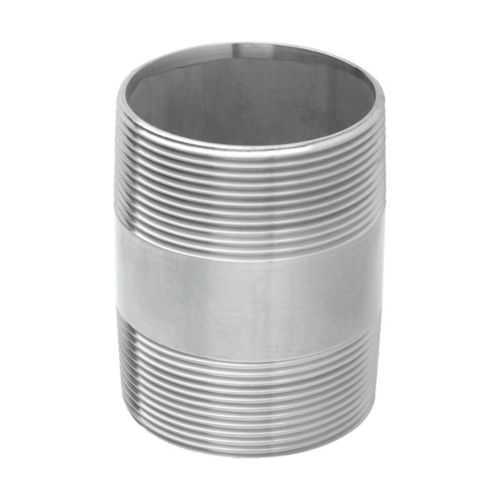

Eaton Crouse-Hinds NPL200500SA conduit nipple - NEC/CEC
Part Number: NPL200500SA
Quick Summary
Eaton Crouse-Hinds NPL200500SA conduit nipple provides a rigid aluminum connection for IMC installations in industrial electrical panels and equipment enclosures. Engineers and technicians often wrestle with finding a precise-fit nipple that installs quickly without compromising enclosure integrity or code compliance. It carries NEC/CEC standards and Ordinary/Non-Hazardous Locations ratings, streamlining audits and reducing field rework. The lightweight aluminum construction, combined with a compact 2 in x 5 in footprint, supports efficient multiple-run assemblies and predictable procurement across maintenance programs. This makes it a smart choice for panel builders and maintenance teams aiming to reduce total installed cost.
Product Information
Extended Description
NPL200500SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series NPL conduit nipple, Rigid/IMC, Aluminum, 2" x 5"
Product Name
Eaton Crouse-Hinds series NPL conduit nipple
Catalog Number
NPL200500SA
UPC
662276484757
Product Length/Depth
5 in
Product Height
2.38 in
Product Width
2.38 in
Product Weight
0.48 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Size and length
2" x 5"
Material
Aluminum
Crouse-Hinds series Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC catalog page
Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC Canadian certification
Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC Canadian certification
Eaton Specification Sheet - NPL200500SA
Feature aluminum construction → Business Impact reduced weight and improved corrosion resistance → Application panel assemblies and raceways; feature rigidity of IMC compatibility → Business Impact stronger mechanical protection and vibration tolerance → Application industrial environments with equipment movement or vibration. Feature 2" x 5" size → Business Impact fits typical enclosure spacings and short-run connections → Application tight panels and compact layouts. Feature catalog NPL200500SA for procurement traceability → Business Impact streamlined BOM management and fasteré‡‡č´ cycle → Application consistent sourcing across sites. Feature NEC/CEC compliance + Ordinary/Non-Hazardous Locations rating → Business Impact easier compliance, faster inspections, and reduced rework → Application commercial and light-industrial facilities needing clear code conformance. Feature aluminum weight 0.48 lb → Business Impact easier handling and reduced installation fatigue → Application field installs with long conduit runs. Feature 5" length and 2.38" width/height dimensions → Business Impact space optimization and simplified mounting → Application compact control panels and junctions with minimal clearance requirements.
Get a Quick Quote for a Eaton Crouse-Hinds NPL200500SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NPL200500SA?
Enquire Now
FAQs
The NPL200500SA is designed for rigid/IMC conduit connections in industrial electrical panels and equipment enclosures. Its 2 in x 5 in size and aluminum construction make it ideal for tight spaces where lightweight, corrosion-resistant fittings are needed, while maintaining NEC/CEC compliance and ordinary location ratings for straightforward inspections.
Key specifications include material aluminum, conduit type rigid/IMC, size and length 2 in x 5 in, product length 5 in, product weight 0.48 lb, catalog number NPL200500SA, UPC 662276484757, and NEC/CEC standards with Ordinary/Non-Hazardous Locations classification. These details support accurate BOM integration and field interoperability.
Yes. The NPL200500SA is listed under NEC/CEC standards and rated for Ordinary/Non-Hazardous Locations, which helps ensure code compliance during inspections and reduces field rework. Supporting documentation for certifications is available through Eaton’s resources and UL Canada certification references.
Aluminum provides corrosion resistance and weight savings, easing handling and reducing fatigue during installation. The lighter profile helps speed up multi-run assemblies, while robust material properties extend component life in demanding industrial environments, lowering maintenance costs and replacement frequency over the lifecycle.
Certification and datasheet documents for the NPL200500SA are available through Eaton’s official resources, including the specification sheet and Canadian certification references. These documents support compliance validation, provide installation guidance, and ensure you have official proof of NEC/CEC conformance and location ratings during audits.
