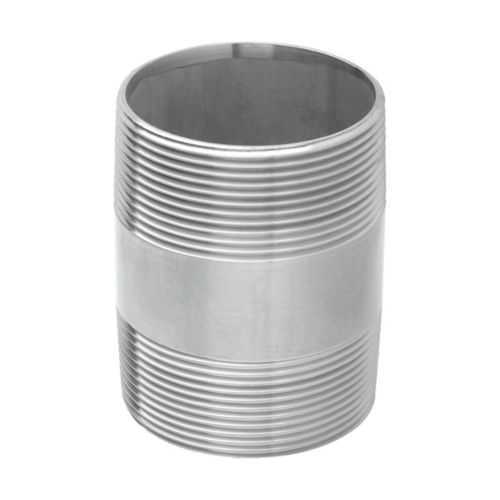

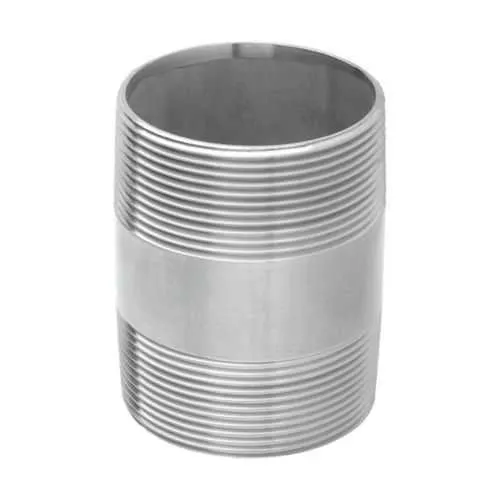

Eaton Crouse-Hinds NPL500800SA NPL conduit nipple - Rigid/IMC
Part Number: NPL500800SA
Quick Summary
NPL conduit nipple from Eaton Crouse-Hinds delivers a robust aluminum connection for rigid/IMC conduit in industrial installations. This solution addresses field challenges like heavy fittings, misalignment, and corrosion, slowing panel assembly and maintenance. The product is NEC/CEC compliant and suitable for Ordinary/Non-Hazardous Locations, with UL Canadian certification support. By choosing the NPL500800SA, electrical teams gain faster installation, predictable fit in compact enclosures, and long-term reliability, backed by compatible accessories and catalogs. In practice, contractors and design engineers benefit from standardized dimensions and a proven performance profile that spares project schedules and reduces lifecycle costs while supporting scalable wiring layouts.
Product Information
Extended Description
NPL500800SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series NPL conduit nipple, Rigid/IMC, Aluminum, 5" x 8"
Product Name
Eaton Crouse-Hinds series NPL conduit nipple
Catalog Number
NPL500800SA
UPC
662276485167
Product Length/Depth
8 in
Product Height
5.56 in
Product Width
5.56 in
Product Weight
2.81 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Size and length
5" x 8"
Material
Aluminum
Crouse-Hinds series Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC catalog page
Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC Canadian certification
Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC Canadian certification
Eaton Specification Sheet - NPL500800SA
Feature aluminum construction and weight of 2.81 lb reduces handling time and improves installation efficiency, especially in crowded electrical enclosures. Business impact: faster panel assembly and lower labor costs with less fatigue on crews; Application: control panels and field installations requiring rigid/IMC connections. Feature compatibility with rigid/IMC conduit ensures broad applicability across standard industrial wiring systems, delivering consistent performance and easier procurement. Business impact: reduced part substitutions and faster commissioning; Application: new builds and retrofits in manufacturing and process facilities. Feature precise 8 in length and 5 x 8 in overall footprint provides predictable fit in tight spaces. Business impact: minimized rework and better layout planning; Application: compact control panels and machine wiring where space is at a premium. Feature NEC/CEC compliance and Ordinary/Non-Hazardous Location suitability lowers regulatory risk. Business impact: simplified audit and safer installations; Application: compliance-driven projects and facilities with regulatory expectations. Feature UL Canadian certification support and availability through catalog resources enhances cross-border procurement. Business impact: smoother supply chain and verified safety standards; Application: multinational projects and distributor networks. Feature compatibility with Crouse-Hinds catalog offerings and standard locknuts, nipples, washers, reducers, and plugs accelerates install planning. Business impact: fewer part mismatches and faster field assembly; Application: modular wiring schemes and future expansions in industrial plants.
Get a Quick Quote for a Eaton Crouse-Hinds NPL500800SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NPL500800SA?
Enquire Now
FAQs
The NPL500800SA is aluminum and weighs 2.81 lb, designed for rigid/IMC conduit. Its 8 in length and 5.56 in width/height provide predictable fit in compact enclosures, enabling quicker alignment and fewer adjustments during panel wiring.
Yes. The conduit nipple is specified for rigid/IMC systems and is designed to mate with common NPL-series locknuts, washers, reducers, and plugs, ensuring reliable mechanical and electrical continuity.
It is NEC/CEC compliant for Ordinary/Non-Hazardous Locations and carries UL Canadian certification, with additional catalog and specification support available from Eaton.
Key dimensions are 8 in length with a 5.56 in width and height, and a product weight of 2.81 lb. These measurements help with enclosure footprint planning and routing within control panels.
The aluminum construction reduces weight and installation time, NEC/CEC compliance minimizes regulatory risk, and UL Canadian certification supports cross-border procurement. Together, these factors lower lifecycle costs and accelerate project timelines.
