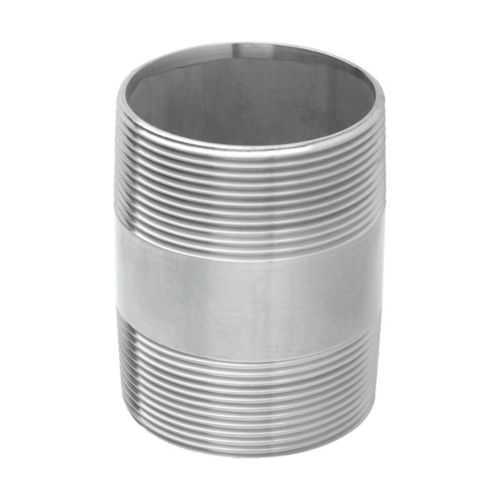

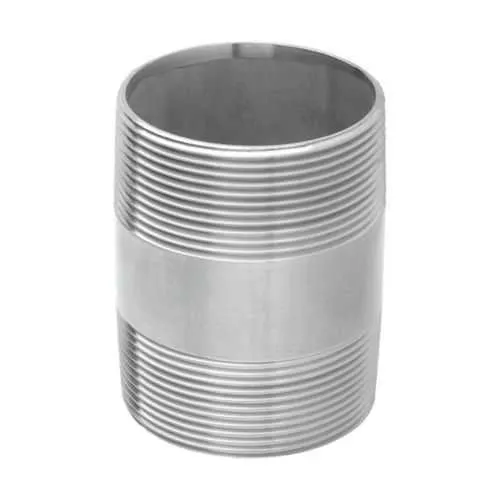

Eaton Crouse-Hinds NPL75200SA conduit nipple - Rigid/IMC
Part Number: NPL75200SA
Quick Summary
The Eaton Crouse-Hinds NPL75200SA conduit nipple is a rigid aluminum 3/4 in x 2 in connector for joining rigid and IMC conduit runs in industrial electrical systems. Engineers often face fit, corrosion, and installation time challenges; this part delivers precise dimensions and durable aluminum construction to minimize field adjustments and rework. It meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with UL certifications available for verification. By using lightweight aluminum, installers benefit from easier handling and faster assembly, while compatibility with standard locknuts and fittings simplifies procurement and maintenance in automation and manufacturing facilities. Choosing this component supports safer, cost-efficient conduit networks across plants and process lines.
Product Information
Extended Description
NPL75200SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series NPL conduit nipple, Rigid/IMC, Aluminum, 3/4" x 2"
Product Name
Eaton Crouse-Hinds series NPL conduit nipple
Catalog Number
NPL75200SA
UPC
662276484177
Product Length/Depth
2 in
Product Height
1.05 in
Product Width
1.05 in
Product Weight
0.05 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Size and length
3/4" x 2"
Material
Aluminum
Crouse-Hinds series Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC catalog page
Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC UL certification
Locknuts, Nipples, Washers, Reducers and Plugs - Rigid-IMC UL certification
Eaton Specification Sheet - NPL75200SA
Material and weight: The NPL75200SA is formed from aluminum, delivering excellent corrosion resistance in humid or dusty industrial environments while keeping weight to about 0.05 lb per unit. Business impact: Lighter components reduce shipping, handling costs, and fatigue during long conduit runs, contributing to lower total installed cost. Application: Ideal for frequent reconfigurations in automation panels where ease of movement matters. Size and dimensional stability: The 3/4 inch diameter and 2 inch length align with common conduit spacings, reducing misalignment and ensuring clean routing in tight control cabinets. Impact: Faster layout planning and fewer field cuts, improving project schedule adherence. Application: Suitable for compact machinery assemblies and panel interfaces where precise connectors are essential. Compatibility and interface: Designed for rigid/IMC conduit and compatible with standard locknuts, washers, and fittings from the Crouse-Hinds family. Impact: Streamlined procurement and reliable assemblies with fewer compatibility issues. Application: Useful across OEM builds and end-user automation upgrades. Compliance and certifications: NEC/CEC conformity with an Ordinary/Non-Hazardous Location rating supports regulatory approvals and baseline safety requirements. Impact: Regulatory confidence and smoother inspections in manufacturing plants. Application: Ideal for facility upgrades and new builds requiring UL documentation. Procurement and inventory: Catalog number NPL75200SA with UPC 662276484177 simplifies ordering and inventory control. Impact: Reduced mis-picks and faster replenishment for maintenance teams. Application: Suitable for large-scale projects and multi-site deployments where standardization matters.
Get a Quick Quote for a Eaton Crouse-Hinds NPL75200SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NPL75200SA?
Enquire Now
FAQs
For proper installation, align the nipple with the conduit run, tighten using standard locknuts and fittings intended for rigid/IMC systems, and follow Eaton's specification sheet for torque values. Ensure clean, burr-free conduit ends and verify that each connection is fully seated to prevent leaks and vibration-induced wear.
Key specs include 3/4 inch nominal size, 2 inch length, aluminum material, and a weight of 0.05 lb. Catalog number is NPL75200SA, UPC 662276484177, and it is intended for rigid/IMC conduit with an Ordinary/Non-Hazardous Location rating per NEC/CEC.
No. The NPL75200SA is rated for Ordinary/Non-Hazardous Locations. For hazardous environments, consult Eaton’s alternative fittings that meet appropriate explosion-proof or intrinsically safe standards and ensure compliance with local codes.
The product aligns with NEC/CEC standards and carries an Ordinary/Non-Hazardous Location rating. UL certification visibility is available through Eaton’s validation documents, which can be referenced in the downloadable datasheets and UL pages linked from the product page.
The nipple is designed to interface with standard rigid/IMC fittings and locknuts in the Crouse-Hinds family, promoting compatibility across Eaton components. This reduces part variety, supports quicker assemblies, and improves long-term maintenance through consistent component compatibility.
