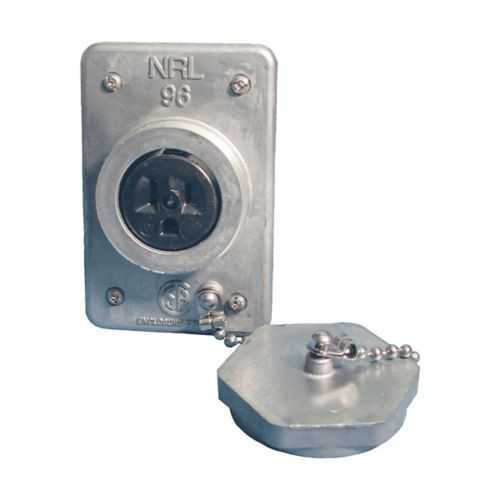

Eaton Crouse-Hinds NRL96-1 Receptacle - NEMA 4
Part Number: NRL96-1
Quick Summary
NRL96-1 receptacle from Eaton Crouse-Hinds is a robust, watertight power connection designed for industrial installations. Engineers often contend with corrosion, moisture, and compliance audits in harsh environments—this device helps reduce maintenance and risk. It adheres to NEC/CEC standards, features a NEMA 4 enclosure, and is rated for ordinary/non-hazardous locations, supporting safe, durable operation. By combining rugged construction with a compact form and clear wiring configuration, it delivers reliable performance while simplifying procurement and installation for capital projects and maintenance programs.
Product Information
Extended Description
NRL96-1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle, 15A, Die cast aluminum, 5-15R, Single-gang, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle
Catalog Number
NRL96-1
UPC
662276482098
Product Length/Depth
3 in
Product Height
4.5 in
Product Width
1.31 in
Product Weight
0.77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Voltage rating
125 Vac
Amperage Rating
15A
NEMA configuration
5-15R
Material
Die cast aluminum
Number of gangs
Single-gang
Pauluhn Industrial Watertight ANSI NEMA Wiring Devices catalog page
IF LBL 1562 - NRL80, NRL86, NRL96 Plugs and Receptacles
Eaton Specification Sheet - NRL96-1
Electrical specifications align with common North American wiring standards: 125 Vac, 15A, 5-15R configuration for reliable, plug-and-play connectivity in control panels, switchgear, and outlet strips. Business impact centers on compatibility and downtime reduction, enabling quick replacements and standardized spares in plant-wide initiatives. This receptacle uses a die cast aluminum body, delivering corrosion resistance and mechanical strength that extend service life in damp or outdoor environments. The NEMA 4 enclosure protects internal contacts from dust, water, and incidental splashes, reducing field service calls and warranty claims. With a compact 3 in length, 4.5 in height, and 1.31 in width, plus a light 0.77 lb weight, installation is straightforward in tight junction boxes and single-gang enclosures. Its Pauluhn lineage supports consistent mounting patterns, easing retrofit and cross-series compatibility across Pauluhn NRL 80/86/96 families. This combination addresses common objections about ruggedness, install time, and total cost of ownership while meeting NEC/CEC compliance requirements.
Get a Quick Quote for a Eaton Crouse-Hinds NRL96-1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NRL96-1?
Enquire Now
FAQs
NRL96-1 provides 125 Vac operation at 15 A with a 5-15R configuration suitable for single-gang installations. The unit uses a die cast aluminum enclosure, weighs 0.77 lb, and measures about 3 in in length, 4.5 in in height, and 1.31 in in width. It carries a UPC of 662276482098 and is rated for NEMA 4 and ordinary/non-hazardous locations.
NRL96-1 adheres to NEC/CEC standards and features a NEMA 4 enclosure. This combination ensures suitability for ordinary/non-hazardous locations while providing protection against dust and water intrusion. The application focus remains on reliable, code-compliant power connections for standard industrial environments.
Yes. The NRL96-1 uses a 5-15R receptacle configuration designed for standard North American 5-15P plugs and single-gang mounting. Its compact dimensions support installation in typical control panels, wall boxes, or surface-mmount enclosures, helping to simplify wiring schemes and spare part inventories for maintenance programs.
Eaton provides several downloads for NRL96-1, including the Pauluhn catalog page, instruction sheets (IF LBL 1562 for NRL80/NRL86/NRL96), and the Eaton specification sheet for NRL96-1. Access these resources at the provided links: Pauluhn catalog page, LBL1562 instruction sheet, and NRL96-1 specification sheet.
The NRL96-1 measures 3 in in length, 4.5 in in height, and 1.31 in in width, with a weight of approximately 0.77 lb. Its die cast aluminum body contributes to durability, while the compact form factor supports easy installation in single-gang enclosures and tight electrical closets.
