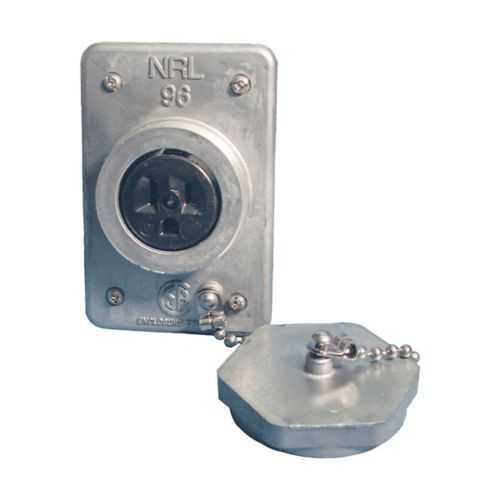

Eaton Crouse-Hinds NRL96-2 Receptacle - NEMA 4
Part Number: NRL96-2
Quick Summary
NRL96-2 is a Pauluhn receptacle designed for reliable 250 V AC connections in general-purpose industrial environments. When equipment needs a robust, simple plug-and-receptacle solution, downtime and failed connections can cost productivity and raise maintenance expenses. This unit delivers weather and dust resistance with a NEMA 4 rating and NEC/CEC compliance, ensuring safe, long-term operation in non-hazardous locations. The compact single-gang form and die cast aluminum housing simplify installation in existing enclosures while delivering durable performance in mechanical rooms, facilities floors, and outdoor applications. With standard 6-15R configuration and Pauluhn's proven design, it supports efficient wiring, standardized spares, and reduced inventory complexity for maintenance teams.
Product Information
Extended Description
NRL96-2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle, Die cast aluminum, 6-15R, Single-gang, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle
Catalog Number
NRL96-2
UPC
662276498389
Product Length/Depth
3 in
Product Height
4.5 in
Product Width
1.31 in
Product Weight
0.77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Voltage rating
250 V AC
NEMA configuration
6-15R
Material
Die cast aluminum
Number of gangs
Single-gang
Pauluhn Industrial Watertight ANSI NEMA Wiring Devices catalog page
IF LBL 1562 - NRL80, NRL86, NRL96 Plugs and Receptacles
Eaton Specification Sheet - NRL96-2
Die-cast aluminum housing delivers rugged durability and corrosion resistance, reducing replacement cycles in harsh environments. This translates to longer service life and lower maintenance costs for facilities teams, with reliable operation in outdoor equipment and washdown areas. The 6-15R configuration ensures compatibility with widely used plugs, enabling faster swaps and standardized spares across multiple lines of equipment and minimizing downtime during routine maintenance. Rated for 250 V AC, this receptacle supports typical industrial control circuits and general-purpose outlets, enhancing system reliability without overprovisioning voltage. Its single-gang, compact footprint — 3 in depth, 4.5 in height, and 1.31 in width — fits standard electrical boxes, simplifying retrofit projects and reducing installation time. The NEMA 4 rating provides weather and dust resistance suitable for non-hazardous locations, protecting critical connections in mechanical rooms and outdoor enclosures. NEC/CEC compliance ensures safe wiring practices and easy interoperability with other Pauluhn devices, reducing training needs for maintenance staff and ensuring regulatory alignment. Pauluhn design advantages and compatibility with installation sheets like LBL 1562 enable straightforward, repeatable installations, improving inventory planning and troubleshooting efficiency across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds NRL96-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NRL96-2?
Enquire Now
FAQs
NRL96-2 is designed for standard single-gang boxes with a compact profile: 3 in depth, 1.31 in width, and 4.5 in height. It uses the 6-15R configuration and ships with a Pauluhn-style mounting pattern, making it straightforward to wire using typical conductors and lugs. For exact box compatibility, consult the LBL1562 installation sheet and the Pauluhn catalog pages for matching cutouts and mounting hardware.
Key specs include 250 V AC voltage rating, NEMA configuration 6-15R, die cast aluminum housing, single-gang design, weight around 0.77 lb, and dimensions of 3 in length, 4.5 in height, and 1.31 in width. UPC is 662276498389, and it adheres to NEC/CEC standards with a NEMA 4 rating for weather and dust resistance.
Yes. The NRL96-2 carries a NEMA 4 rating, indicating protection against windblown dust and water ingress from rain, as well as some corrosion exposure. It is intended for ordinary/non-hazardous locations and is appropriate for mechanical rooms, outdoor equipment housings, and other non-hazardous areas where reliable, sealed connections are desired.
The unit complies with NEC/CEC standards and carries a NEMA 4 rating for protective enclosures. It is designed for ordinary locations and integrates with Pauluhn’s family of watertight, ANSI-compliant wiring devices, enabling safe operation in non-hazardous environments without specialized explosion-proof features.
The die-cast aluminum housing and water/dust-resistant NEMA 4 design reduce corrosion and wear, lowering replacement and maintenance costs. The standard 6-15R configuration simplifies stock and spares, improving repair times. Overall, you gain reliable performance, fewer unplanned outages, and easier compliance with NEC/CEC wiring practices in non-hazardous facilities.
