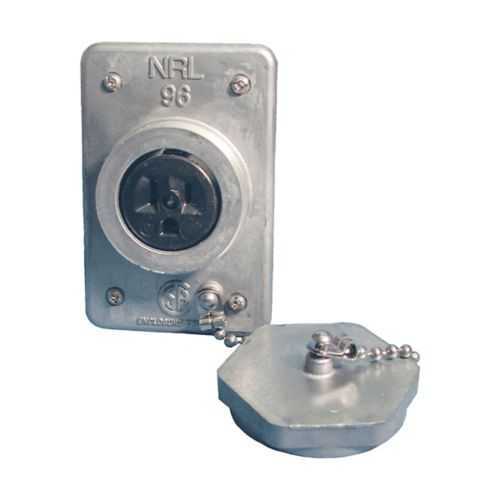

Eaton Crouse-Hinds NRL96-4 Receptacle - NEMA 6-20R, 250V
Part Number: NRL96-4
Quick Summary
NRL96-4 receptacle is a rugged 250 V AC power connector designed for industrial controls and outdoor equipment, delivering reliable single-gang power in demanding environments. Engineers often struggle with moisture, dust, and corrosion compromising connections; this unit uses a die-cast aluminum housing to resist harsh conditions and simplify maintenance. While the data notes NEC/CEC compliance and a NEMA 4 rating for weather resistance, it also aligns with area classification as Ordinary/Non-Hazardous Locations, ensuring safe operation in non-hazardous settings. As part of the Pauluhn NRL series, it complements a broader lineup of industrial wiring devices, delivering consistent performance and ease of integration in your control panels and enclosures.
Product Information
Extended Description
NRL96-4 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle, Die cast aluminum, 6-20R, Single-gang, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle
Catalog Number
NRL96-4
UPC
662276498402
Product Length/Depth
3 in
Product Height
4.5 in
Product Width
1.31 in
Product Weight
0.77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Voltage rating
250 V AC
NEMA configuration
6-20R
Material
Die cast aluminum
Number of gangs
Single-gang
Pauluhn Industrial Watertight ANSI NEMA Wiring Devices catalog page
IF LBL 1562 - NRL80, NRL86, NRL96 Plugs and Receptacles
Eaton Specification Sheet - NRL96-4
Feature → Die-cast aluminum housing provides robust mechanical protection and corrosion resistance, reducing replacement costs in harsh environments. Business Impact → Longer service life and lower maintenance downtime, leading to improved overall equipment effectiveness (OEE) for outdoor and indoor installations. Application → Ideal for outdoor control panels, wet/dust-prone environments, and process equipment enclosures that demand dependable power connections. Feature → 6-20R configuration with 250 V AC rating in a single-gang footprint offers standardized, safe connection points. Business Impact → Minimizes miswiring and simplifies wiring schematics, reducing installation time and error rates in control cabinets. Application → Suitable for industrial tools and motors in warehouses and manufacturing floors that require compact, code-compliant receptacles. Feature → NEMA 4 rating and NEC/CEC compliance provide weather resilience and regulatory alignment. Business Impact → Enhances safety compliance and reduces risk of water ingress, downtime, and non-compliance penalties. Application → Critical for surface-mited enclosures, outdoor-rated installations, and non-hazardous location projects. Feature → Pauluhn NRL series compatibility and documented installation guides (LBL1562) support seamless upgrades and standardization. Business Impact → Streamlines procurement and training, lowering total cost of ownership. Application → Retrofit projects converting older wiring devices to modern, standardized Pauluhn components. Feature → Compact footprint with 3 in depth, 4.5 in height, and 1.31 in width, weighing 0.77 lb. Business Impact → Space-efficient installations with lighter components reduce panel congestion and shipment costs. Application → Fits within single-gang mounting pattens in tight control panels and compact field applications. Feature → Includes UPC for traceability (662276498402). Business Impact → Improves inventory management and product authentication in procurement workflows. Application → Useful for ERP and MRP tagging in parts catalogs and compliance records.
Get a Quick Quote for a Eaton Crouse-Hinds NRL96-4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NRL96-4?
Enquire Now
FAQs
Yes, the NRL96-4 is part of the Pauluhn NRL series and supports the installation guidance provided in the LBL1562 instruction sheet. It shares mounting dimensions and connection practices with other NRL family receptacles, enabling straightforward upgrades and standardized installations in existing enclosures.
The NRL96-4 is rated for 250 V AC and configured as a NEMA 6-20R receptacle. This configuration is widely used for single-phase power connections in industrial equipment, offering a secure, weather-resistant connection in non-hazardous locations.
This receptacle is well-suited for control panels, outdoor machinery, and industrial wiring devices in warehouses and manufacturing floors. Its single-gang footprint, rugged die-cast aluminum housing, and NEMA 4 rating make it ideal for environments requiring reliable power connections with weather resistance.
The NRL96-4 adheres to NEC/CEC standards and carries a NEMA 4 rating for weather resistance. Area classification specifies Ordinary/Non-Hazardous Locations, ensuring suitability for non-hazardous industrial environments and compliant installation practices.
The die-cast aluminum construction minimizes corrosion and wear, reducing replacement frequency and maintenance costs. Its compatibility with the Pauluhn NRL series streamlines spare parts sourcing and training, delivering lower total cost of ownership through longer service life and easier, faster installations.
