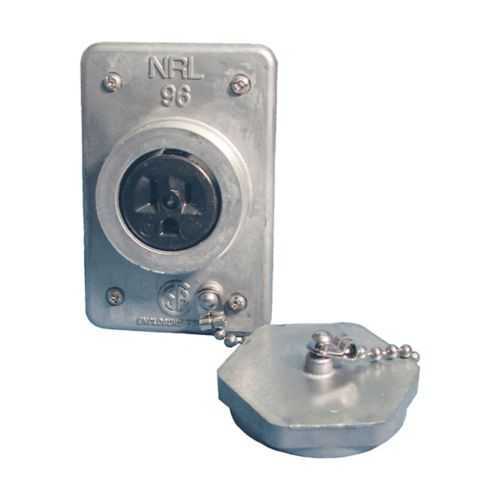

Eaton Crouse-Hinds NRL96-6 Receptacle - L6-15R, NEMA 4
Part Number: NRL96-6
Quick Summary
The Eaton Crouse-Hinds NRL96-6 Receptacle is a rugged 250 VAC connector designed for control panels and industrial equipment. Downtime and ingress risk in harsh environments frustrate field installations; this single-gang unit delivers a compact, weather-resistant solution that simplifies mounting and maintenance. It carries NEC/CEC standard compliance and a NEMA 4 rating, with a die cast aluminum enclosure for durability in outdoor or marine settings. The combination of a L6-15R configuration and a compact footprint supports quick retrofits and standardized sourcing, while the UPC and catalog data help procurement teams ensure correct stocking. For engineers and buyers, this receptacle translates to faster installs, fewer compatibility issues, and long-term reliability in everyday industrial applications.
Product Information
Extended Description
NRL96-6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle, Die cast aluminum, L6-15R, Single-gang, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn NRL 96 receptacle
Catalog Number
NRL96-6
UPC
662276498426
Product Length/Depth
3 in
Product Height
4.5 in
Product Width
1.31 in
Product Weight
0.77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4
Voltage rating
250 V AC
NEMA configuration
L6-15R
Material
Die cast aluminum
Number of gangs
Single-gang
Pauluhn Industrial Watertight ANSI NEMA Wiring Devices catalog page
IF LBL 1562 - NRL80, NRL86, NRL96 Plugs and Receptacles
Eaton Specification Sheet - NRL96-6
Feature: Die cast aluminum enclosure provides corrosion resistance and ruggedness in outdoor and marine environments, reducing maintenance cycles and downtime. Business Impact: Longer service intervals and fewer repair costs translate to lower total cost of ownership. Application: Ideal for control panels deployed outdoors or in harsh industrial areas where moisture and dust ingress are concerns. Feature: NEMA 4 rating delivers weatherproof protection against water and dust intrusion, lowering field-service calls in wet locations. Business Impact: Enhanced reliability and safer connections in rugged environments. Application: Marine installations, outdoor equipment, and conveyor or machine rooms with frequent washdowns. Feature: L6-15R configuration ensures compatibility with standard 250 VAC plugs and wiring, simplifying sourcing and wiring practices. Business Impact: Reduced procurement complexity and faster panel wiring. Application: General-purpose power receptacles in industrial automation. Feature: Single-gang footprint with dimensions of 3 in length, 4.5 in height, and 1.31 in width enables compact panel layouts. Business Impact: Saves enclosure space and enables retrofit in narrow or legacy panels. Application: Upgrade projects and new installations with limited interior space. Feature: NEC/CEC compliance and clear identification via UPC 662276498426 facilitate regulatory alignment and asset management. Business Impact: Streamlined approvals, easier inventory control, and consistent documentation. Application: Facilities and plant-wide electrical upgrades in compliance-driven environments.
Get a Quick Quote for a Eaton Crouse-Hinds NRL96-6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds NRL96-6?
Enquire Now
FAQs
NRL96-6 is a single-gang receptacle with a 3 in length body designed for common single-gang boxes. For installation, mount using standard screws, align the L6-15R mating orientation, and tighten hardware to ensure a secure fit. Use proper seals or gaskets to preserve NEMA 4 protection and follow NEC/CEC guidelines during wiring and grounding.
Key specs include catalog number NRL96-6, voltage rating 250 V AC, NEMA configuration L6-15R, material die cast aluminum, and a single-gang footprint. Dimensions are 3 in length, 4.5 in height, and 1.31 in width with a weight of 0.77 lb. UPC is 662276498426 for asset tagging and procurement.
The NRL96-6 specifies an area classification of Ordinary/Non-Hazardous Locations, making it suitable for standard industrial environments but not for hazardous locations. For environments requiring hazardous-area protection, select a model with appropriate explosion-proof ratings and approvals.
NRL96-6 complies with NEC/CEC standards and carries a NEMA 4 rating, ensuring weatherproof and dust-tight performance. This combination supports code-compliant installations in non-hazardous locations and aligns with common safety and performance requirements in industrial facilities.
The die cast aluminum construction and NEMA 4 protection reduce ingress-related wear and corrosion, lowering maintenance frequency and replacement costs. A standard, reliable L6-15R configuration simplifies spare-part stocking and installation, resulting in quicker repairs, reduced downtime, and a favorable return on investment in routine control-panel upgrades.
