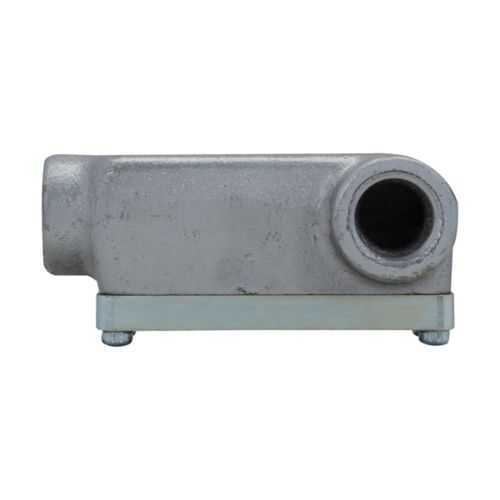

Eaton OELR1 Condulet OE Outlet Body - NEMA 7/9
Part Number: OELR1
Quick Summary
Condulet OE conduit outlet body is designed to provide rugged electrical terminations in hazardous locations. This enclosure simplifies wiring while protecting conductors from contamination, sparking, and ingress in classified spaces. With NEC/CEC compliance and a NEMA 7 & 9 rating, it meets essential safety standards for explosion‑proof service. The LR shaped, 1/2 inch trade size conduit outlet supports quick field installation, durable Feraloy iron alloy construction, and reliable covers for access. For engineers and maintenance teams, the OELR1 delivers consistent performance, reduced downtime, and long‑term cost savings in oil & gas, chemical processing, and other hazardous environments. The solution complements standard Condulet OE configurations, enabling scalable protection across facilities and assets.
Product Information
Extended Description
OELR1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet OE conduit outlet body with cover, Feraloy iron alloy, LR shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet OE conduit outlet body with cover
Catalog Number
OELR1
UPC
782274552408
Product Length/Depth
4.81 in
Product Height
2.44 in
Product Width
1.81 in
Product Weight
1.95 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
7 9
Shape
LR
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series OE and EKC Conduit Outlet Bodies catalog page
Condulet OE and EKC Explosionproof Conduit Outlet Bodies UL certification
Eaton Specification Sheet - OELR1
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy body provides outstanding durability in corrosive and impact‑prone environments → Business Impact: Extends service life in harsh industrial settings, lowering maintenance costs and replacement cycles → Application: Oil & gas, chemical plants, and other hazardous locations. Feature: LR shape with 1/2 inch trade size → Business Impact: Streamlines integration with common conduit systems, reducing installation time and inventory complexity → Application: Control panels and machinery with tight routing requirements. Feature: Conduit outlet body with cover for field access → Business Impact: Facilitates rapid wiring changes and inspection without compromising enclosure integrity → Application: Routine maintenance and emergency wiring updates. Feature: NEC/CEC compliance with hazardous location ratings including Class I/II and Division 1/2, plus Class III → Business Impact: Meets regulatory approvals and minimizes risk of non‑compliance penalties → Application: Projects requiring strict explosion‑proof and safety certifications. Feature: NEMA Rating 7 & 9 for explosion‑proof service → Business Impact: Improves protection against dust, moisture, and explosions, boosting plant reliability → Application: Hazardous locations across industrial facilities. Feature: Dimensions and weight indicate a compact, mountable enclosure (4.81 in length, 2.44 in height, 1.81 in width; 1.95 lb) → Business Impact: Easy integration into compact panels and tight spaces, with predictable handling during installation. Application: Space‑constrained electrical installations and retrofit projects. Feature: Catalog and specification depth available (spec sheet, catalog page, UL certification) → Business Impact: Accelerates procurement decisions and ensures traceable compliance during audits → Application: Design reviews, supplier qualification, and quality documentation.
Get a Quick Quote for a Eaton Crouse-Hinds OELR1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds OELR1?
Enquire Now
FAQs
The OELR1 uses a LR shape designed for 1/2 inch conduit, enabling compact, straightforward mounting in standard enclosures. Its dimensions (4.81 in L x 2.44 in H x 1.81 in W) fit tight panels and typical electrical boxes, while the cover provides quick access for wiring changes.
OELR1 is constructed from Feraloy iron alloy for durability in harsh environments. It accommodates a 1/2 inch trade size conduit, with overall dimensions of 4.81 inches in length, 2.44 inches in height, and 1.81 inches in width, weighing 1.95 pounds.
Yes. It carries NEC/CEC compliance with hazardous location ratings including Class I Division 1 & 2, Class II Division 1 & 2, and Class III. The unit also offers NEMA 7 and NEMA 9 ratings, ensuring explosion‑proof protection in classified environments.
The cover design allows rapid access for wiring and inspection, reducing maintenance time. Its compatibility with standard Condulet OE configurations helps minimize parts variety, improving procurement efficiency and installation consistency across sites.
Official Eaton documentation includes the OELR1 specification sheet, a catalog page for OE/EKC conduit outlet bodies, and UL certification references. These resources support accurate sizing, compliance verification, and auditing requirements.
