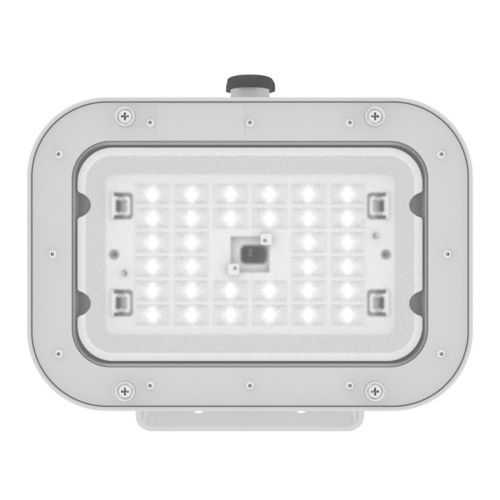

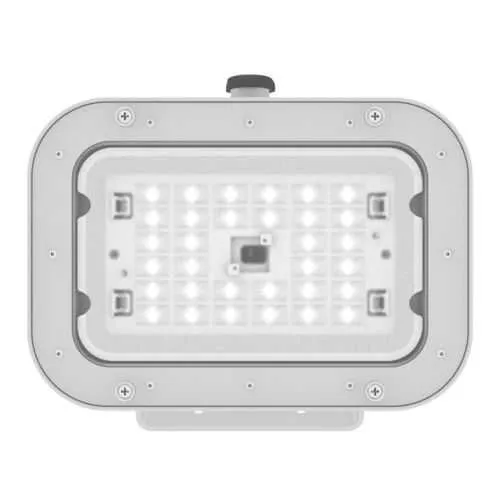

Eaton Crouse-Hinds PFMA-13-76-M20-UNV1-M2 LED Floodlight - IP67
Part Number: PFMA-13-76-M20-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA-13-76-M20-UNV1-M2
Category
Quick Summary
Eaton Crouse-Hinds PFMA-13-76-M20-UNV1-M2 LED floodlight delivers high-output illumination for outdoor industrial facilities. Engineers often contend with harsh environments, limited maintenance windows, and stringent codes that complicate reliable perimeter lighting. This luminaire is built to withstand harsh outdoor conditions with an NEMA 4X enclosure and IP67 ingress protection while meeting NEC/CEC standards. Coupled with a dimmable driver and an efficient 90W design, it delivers lower operating costs and predictable performance for outdoor yard, facility perimeter, and industrial-area lighting projects.
Product Information
Extended Description
PFMA-13-76-M20-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 0.91 - 0.32A, Cool white, 20mm entry, Heat and impact resistant glass lens, 13000 lumens, 154 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 90W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA-13-76-M20-UNV1-M2
UPC
662277153539
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
25.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
13000
Lumens per watt
154
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
20 mm
Lens material
Heat and impact resistant glass
Wattage
90W
Dimming
Dimmable driver
Power factor
> 0.90
Amperage Rating
0.91 - 0.32A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1978 - PFMA M2 9L-15L LED Luminaire
Crouse-Hinds series PFMA LED Floodlights IES photometric files
High-lumen output meets demanding outdoor coverage needs, delivering 13000 lumens at 154 lm/W from a compact 90W package. This combination reduces the number of fixtures required and lowers energy consumption, translating to meaningful cost savings on large outdoor sites such as plant perimeters and loading docks. The 7x6 optical distribution ensures uniform light spread, improving situational awareness and safety for workers during night operations. The cool white LED enhances color rendering and visibility, aiding asset identification and reducing maintenance errors in critical workflows. The die-cast aluminum housing and heat- and impact-resistant glass lens provide rugged protection against vibration, corrosion, and impact in harsh industrial environments, promoting longer intervals between service calls. Compatibility with 100–277 VAC and a dimmable driver supports flexible integration with existing power systems and energy-management strategies, enabling smoother implementation in retrofit projects. The yoke mounting and a 20 mm entry permit versatile installation options and straightforward wiring, while the IP67 and NEMA 4X ratings guarantee protection against dust, water, and corrosive conditions often found in outdoor facilities and non-hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA-13-76-M20-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA-13-76-M20-UNV1-M2?
Enquire Now
FAQs
The PFMA floodlight uses a versatile yoke mounting arrangement that allows freedom to aim and position the luminaire precisely where it is needed. This mounting method is compatible with standard outdoor mounting hardware and supports easy installation on towers, poles, or structural members commonly found in industrial facilities.
Yes. The PFMA-13-76-M20-UNV1-M2 is designed for ordinary/non-hazardous locations. It carries NEMA 4X protection and IP67 ingress protection, delivering reliable operation in dusty, wet, and harsh outdoor environments while meeting NEC/CEC compliance.
At 13000 lumens from a 90W LED source (≈154 lm/W), this fixture delivers high efficacy with reduced electrical demand. The dimmable driver enables better integration with lighting controls and energy-management strategies, lowering long-term energy costs and extending lamp life by running at optimal power levels.
This luminaire meets NEC/CEC standards and carries a NEMA 4X enclosure rating with IP67 ingress protection. It is intended for ordinary/non-hazardous locations and is built to withstand demanding industrial environments, ensuring regulatory compliance and safe operation.
Plan for a standard 100-277 VAC supply with 50/60 Hz power. The unit features a dimmable driver and a 20 mm entry for conduit or cable glands, simplifying wiring lay-out. Ensure the mounting surface provides stable support for the 25.1 lb fixture and that the chosen mounting height and angle optimize coverage with the 7x6 optics.
