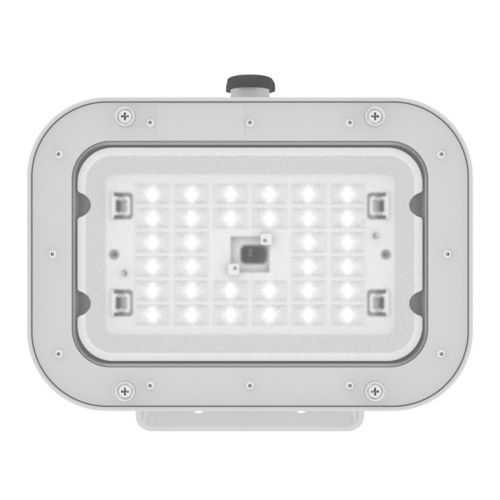

Eaton Crouse-Hinds PFMA-13-76-UNV3-M2 LED Floodlight - IP67
Part Number: PFMA-13-76-UNV3-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA-13-76-UNV3-M2
Category
Quick Summary
Eaton Crouse-Hinds Champ Pro PFMA LED floodlight provides high-output illumination for outdoor industrial spaces. Maintenance teams struggle with reliability in harsh environments, where vibration, moisture, and temperature swings can degrade performance. The luminaire features a NEMA 4X enclosure and IP67 ingress protection, plus a broad voltage range of 347–480 VAC to simplify electrical design and stocking. Its dimmable driver and die-cast aluminum housing improve energy efficiency, while the rugged glass lens resists heat and impact. This combination reduces maintenance cycles and extends service life, making it a dependable choice for facilities aiming to meet NEC/CEC requirements and sustain uptime.
Product Information
Extended Description
PFMA-13-76-UNV3-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 0.26 - 0.19A, Cool white, 3/4" entry, Heat and impact resistant glass lens, 13000 lumens, 154 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 347-480 Vac, 90W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA-13-76-UNV3-M2
UPC
662277153591
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
13000
Lumens per watt
154
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
90W
Dimming
Dimmable driver
Power factor
> 0.90
Amperage Rating
0.26 - 0.19A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1978 - PFMA M2 9L-15L LED Luminaire
Crouse-Hinds series PFMA LED Floodlights IES photometric files
Feature: High-output LED engine delivers 13000 lumens at 90W with 154 lm/W. Business Impact: High illumination with efficient power use reduces energy costs and minimizes heat load, extending luminaire life in hot industrial settings. Application: Outdoor yards, loading docks, and large work zones requiring uniform, glare-controlled lighting. Feature: Heat and impact resistant glass lens with die-cast aluminum housing. Business Impact: Enhanced durability lowers replacement cycles and maintenance spend in challenging environments. Application: Exposed industrial areas, exterior equipment bays, and perimeter lighting where weather and debris exposure is routine. Feature: 7x6 optical distribution and yoke mounting with 3/4" entry. Business Impact: Precise light control and flexible installation shorten commissioning time and enable easy aiming on walls, poles, or brackets. Application: Facility exteriors and outdoor walkways needing targeted coverage. Feature: Dimmable driver and PF > 0.90. Business Impact: Compatible with lighting controls and energy optimization programs, supporting demand-management strategies. Application: Facilities with occupancy-based or time-of-day zoning. Feature: IP67 and NEMA 4X protection with NEC/CEC compliance. Business Impact: Superior protection against dust, water, and corrosion ensures uptime in non-hazardous locations, reducing maintenance and replacement costs. Application: Harsh outdoor environments such as loading docks, parking lots, and exterior staging areas.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA-13-76-UNV3-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA-13-76-UNV3-M2?
Enquire Now
FAQs
PFMA-13-76-UNV3-M2 supports a versatile yoke mounting with a 3/4 inch conduit entry, enabling quick aiming and straightforward integration with walls, poles, or brackets. The die-cast aluminum housing provides rigidity, while the dimensions—16.12 inches long, 14.94 inches high—offer predictable illumination in outdoor perimeters. This design shortens on-site commissioning and simplifies retrofit projects.
This floodlight delivers 13000 lumens at 90W with a high efficiency of 154 lm/W and cool white color. It operates on 347-480 VAC at 50/60 Hz, features a dimmable driver, and has a PF greater than 0.90. The optical distribution is 7x6, with a heat and impact resistant glass lens and a die-cast aluminum enclosure suitable for outdoor use.
PFMA-13-76-UNV3-M2 is rated for Ordinary/Non-Hazardous Locations and features IP67 protection with a NEMA 4X enclosure. While highly durable outdoors, it is not intended for hazardous locations. Always verify the installation environment aligns with NEC/CEC and local codes when planning outdoor lighting for industrial facilities.
The fixture complies with NEC/CEC standards and is rated IP67 with a NEMA 4X enclosure, suitable for ordinary locations. It uses a dimmable driver and offers a wide voltage range of 347–480 VAC, ensuring compatibility with standard industrial electrical systems. These protections support reliable operation in harsh external environments while meeting industry codes.
The dimmable driver enables integration with controls and energy management, while the high lumens-per-watt ratio (154 lm/W) and 90W consumption reduce overall energy use. The rugged housing and lens minimize replacements due to heat or impact, lowering maintenance cycles. These factors collectively improve uptime and deliver a favorable return on investment for facility operators.
