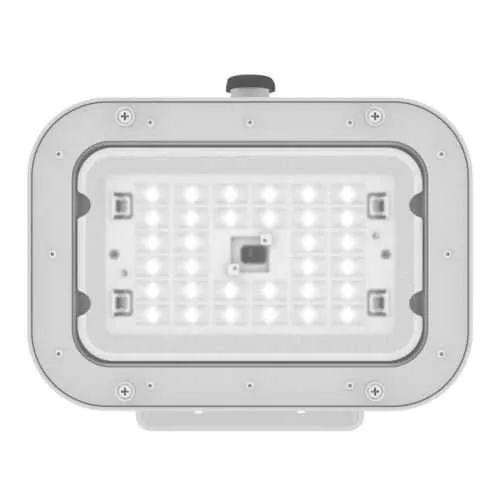

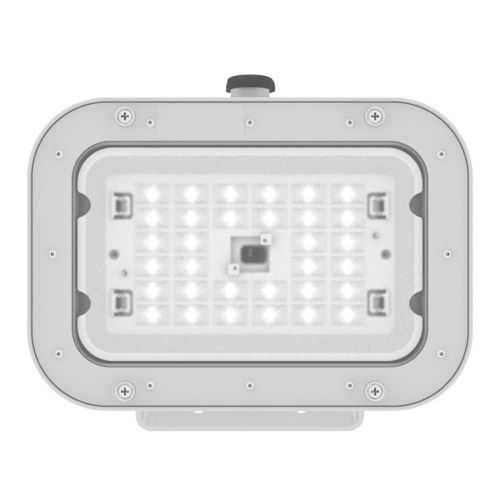

Eaton Crouse-Hinds PFMA-13-W-76-UNV1-M2 LED floodlight - IP67
Part Number: PFMA-13-W-76-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA-13-W-76-UNV1-M2
Category
Quick Summary
PFMA LED floodlight delivers high-output illumination for industrial sites and outdoor facilities. In rugged environments, unreliable lighting and frequent maintenance drive up downtime; this fixture is designed to minimize both with a robust housing and reliable optics. It meets IP67 ingress protection and NEMA 4X enclosure standards, providing durable performance in wet, dusty, and corrosive settings. The luminaire operates on a wide 100-277 Vac range with a dimmable driver, delivering consistent brightness while supporting energy-management strategies. For engineers and facility managers, this fixture offers a balance of powerful illumination, long life, and straightforward integration with existing controls and automation systems.
Product Information
Extended Description
PFMA-13-W-76-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 0.91 - 0.32A, Warm white, 3/4" entry, Heat and impact resistant glass lens, 13000 lumens, 154 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 90W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA-13-W-76-UNV1-M2
UPC
662277153621
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
13000
Lumens per watt
154
Color temperature
Warm white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
90W
Dimming
Dimmable driver
Power factor
> 0.90
Amperage Rating
0.91 - 0.32A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1978 - PFMA M2 9L-15L LED Luminaire
Crouse-Hinds series PFMA LED Floodlights IES photometric files
Feature → Business Impact → Application: 13000 lumens at 90W delivers high brightness with excellent efficiency (154 lm/W), reducing the number of fixtures required and lowering total cost of ownership for large-area lighting such as outdoor yards and loading docks. Application: industrial facilities seeking high-output area lighting with energy savings. Feature → Business Impact → Application: IP67 protection and NEMA 4X enclosure dramatically improve reliability in wet, dusty, and corrosive environments, lowering maintenance calls and extending service intervals. Application: outdoor perimeters, wet locations, and harsh plant exteriors. Feature → Business Impact → Application: Dimmable driver and 100-277 Vac compatibility simplify integration with building management and control systems, enabling smart dimming, occupancy sensing, and energy rebates. Application: retrofit projects and new installations in factories. Feature → Business Impact → Application: Yoke mounting, 3/4" entry, and 7x6 optical distribution enable flexible aiming and precise coverage for large-area lighting, reducing glare and improving visibility. Application: parking lots, walkways, and outdoor work areas. Feature → Business Impact → Application: Die-cast aluminum housing and heat/impact resistant glass lens maximize durability and heat dissipation, lowering replacement costs and maintaining lumen output in hot environments. Application: exterior floodlighting for industrial campuses and logistics hubs.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA-13-W-76-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA-13-W-76-UNV1-M2?
Enquire Now
FAQs
PFMA-13-W-76-UNV1-M2 provides a versatile yoke mount and a 3/4 inch entry for wiring. Installation typically involves securing the yoke to a stable structure, threading conductors through the entry, and connecting to a standard 100-277 VAC supply. Its luminaire design accommodates straightforward wiring for reliable, code-compliant operation.
The PFMA-13-W-76-UNV1-M2 delivers 13,000 lumens with an efficiency of 154 lumens per watt. This high brightness at modest power consumption supports wide-area illumination with lower energy costs, making it suitable for perimeter lighting, outdoor work zones, and loading docks.
Yes. The fixture carries IP67 protection and a NEMA 4X enclosure rating, designed for wet, dusty, and corrosive environments. It is ideal for outdoor industrial lighting, warehouses exteriors, and plant campuses where reliability and protection from the elements are critical.
This floodlight aligns with NEC/CEC standards for ordinary locations and operates at 50/60 Hz with a power factor greater than 0.90. It is rated for 100-277 VAC, using a dimmable driver to support control strategies, and features heat- and impact-resistant glass with a die-cast aluminum housing.
The robust die-cast aluminum housing, tough lens, and long-life LEDs reduce maintenance cycles and replacement costs. The 13,000-lumen output combined with energy-efficient operation lowers annual electricity spend, improves site safety, and supports long- term depreciation benefits for facilities investing in high-quality outdoor lighting.
