Eaton Crouse-Hinds PFMA-15-76-UNV1-M2 LED floodlight - IP67

Part Number: PFMA-15-76-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA-15-76-UNV1-M2

Quick Summary

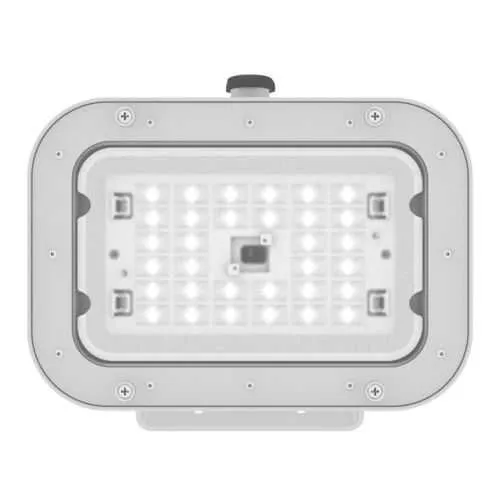

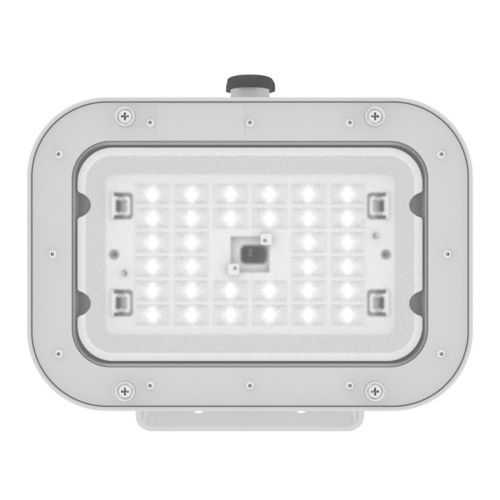

PFMA LED floodlight by Eaton Crouse-Hinds delivers high-output illumination for rugged industrial sites. This fixture addresses common challenges such as unreliable performance in harsh environments, difficult mounting, and limited control options. It carries critical certifications for safe, compliant operation, including IP67 ingress protection, NEMA 4X enclosure, and NEC/CEC standards, ensuring resilience against dust, water, and impact while aligning with typical electrical codes. With a versatile 100-277 VAC supply and a dimmable driver, it adapts to evolving site requirements and energy-management strategies. For engineers and procurement teams, the Champ Pro PFMA supports long service life, faster installation, and predictable maintenance budgets without sacrificing light quality or safety.

Product Information

Extended Description

PFMA-15-76-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 1.07 - 0.38A, Cool white, 3/4" entry, Heat and impact resistant glass lens, 15000 lumens, 154 lm/W, Die cast alum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 107W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA-15-76-UNV1-M2
UPC
662277153669
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
15000
Lumens per watt
154
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
107W
Dimming
Dimmable driver
Power factor
> 0.90
Amperage Rating
1.07 - 0.38A
Material
Die cast aluminum
High-lumen performance delivers 15000 lumens at 107W with 154 lm/W efficiency, reducing energy costs while maintaining ample illumination for large outdoor areas. This translates to lower operating expenses and cooler equipment rooms, essential for facilities near loading docks or outdoor work zones. The die-cast aluminum housing and heat- and impact-resistant glass lens provide rugged durability, minimizing maintenance and replacement cycles in harsh environments and extending mean time between failures. A dimmable driver enables precise lighting control and improved energy management, supporting integration with smart controls and occupancy sensors to meet sustainability targets. The 100-277 VAC input and 50/60 Hz compatibility simplify procurement and on-site wiring, enabling a single luminaire to serve multiple project requirements. The 7x6 optical distribution paired with a yoke mount ensures optimal light spread and flexible installation on angled structures, while the IP67 and NEMA 4X ratings offer reliable operation in wet, dusty, or wash-down environments. This combination addresses common objections about durability, efficiency, and lifecycle costs, providing a turnkey solution for industrial lighting upgrades.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA-15-76-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA-15-76-UNV1-M2? Enquire Now

FAQs

The PFMA-15-76-UNV1-M2 uses a yoke mounting method, enabling flexible installation on walls, poles, or overhead structures. The die-cast aluminum housing is designed to withstand vibration and environmental exposure, while the 3/4" entry provides straightforward conduit connections for rapid installs in industrial settings.
This luminaire operates from 100-277 VAC at 50/60 Hz and features a dimmable driver, allowing integration with control systems to reduce energy use during low-demand periods or to implement scene lighting strategies. The current draw ranges from 1.07 to 0.38 A, depending on dimming state and input voltage.
No. This LED floodlight is rated for Ordinary/Non-Hazardous Locations with a NEMA 4X enclosure and IP67 ingress protection, making it ideal for wet, dusty, or wash-down environments but not certified for hazardous area zones.
The fixture delivers 15000 lumens with a cool white color temperature, providing strong, clear illumination for outdoor industrial spaces while maintaining high efficiency at 154 lm/W.
Key certifications include NEC/CEC compliance, IP67 ingress protection, and NEMA 4X enclosure. It is suitable for Ordinary/Non-Hazardous Locations, ensuring regulatory alignment for industrial lighting projects.
