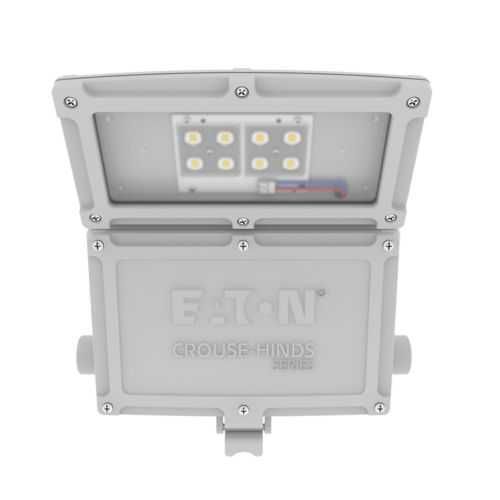

Eaton Crouse-Hinds PFMA-3-66-DG-UNV3-M2 Floodlight - NEMA 4X

Part Number: PFMA-3-66-DG-UNV3-M2
PFMA-3-66-DG-UNV3-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA-3-66-DG-UNV3-M2
Category

Quick Summary

PFMA-3-66-DG-UNV3-M2 LED floodlight provides rugged, high-output illumination for outdoor industrial areas. In demanding facilities, inconsistent lighting and fixture failures slow maintenance and compromise safety. This unit addresses those challenges with a die-cast aluminum housing, IP66/NEMA 4X protection, and NEC/CEC compliance to withstand moisture, dust, and Code requirements. With 30 W of power producing 3000 lumens at 111 lm/W, it trims energy use while delivering uniform coverage. The dimmable driver enables tailored illumination for task lighting, while the yoke mount supports flexible installation across warehouses, yards, and outdoor processing zones.

Product Information

Extended Description

PFMA-3-66-DG-UNV3-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 0.09A, Cool white, Dimmable driver, 50/60 Hz, Diffused glass lens, 3000 lumens, 111 lm/W, Die cast aluminum, Yoke mount, 6x6 optics, > 0.90 PF, 347-480 Vac, 30W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA-3-66-DG-UNV3-M2
UPC
662277147446
Product Length/Depth
14.1 in
Product Height
12.8 in
Product Width
12.6 in
Product Weight
14.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
3000
Lumens per watt
111
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
6x6
Lens material
Diffused glass
Wattage
30W
Dimming
Dimmable driver
Power factor
> 0.90
Amperage Rating
0.09 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ PFMA LED Floodlights - 3,000 to 7,000 lumens catalog page Champ PFMA LED Floodlights ABS certification IF 1967 - Champ PFMA LED M2 Floodlights - 3,000 to 7,000 lumens Crouse-Hinds series PFMA LED Floodlights IES photometric files
Feature: 30W LED engine delivers 3000 lumens with 111 lm/W. → Business Impact: Significantly reduces energy consumption and cooling load compared with legacy lighting, lowering operating costs. → Application: Outdoor industrial areas, loading docks, and facility perimeters where reliable brightness is essential. Feature: 347-480 VAC input with 50/60 Hz operation and dimmable driver. → Business Impact: Simplifies electrical integration across sites and enables flexible lighting control to match tasks. → Application: Retrofit and new installations in mixed-voltage facilities requiring adjustable light levels. Feature: 6x6 optical distribution with a diffused glass lens. → Business Impact: Uniform coverage with minimal hotspots, reducing maintenance re-aims and glare. → Application: Wide-area flood lighting for yards, entrances, and large work zones. Feature: Die-cast aluminum housing with a yoke mounting system. → Business Impact: Durable, corrosion-resistant construction that speeds installation and extends service life. → Application: Outdoor and washdown environments in harsh industrial spaces. Feature: Power factor > 0.90 and 0.09 A at 30 W. → Business Impact: Better electrical efficiency and lower peak demand, supporting utility incentives and cost savings. → Application: Facility-wide upgrades where energy performance and regulatory compliance matter.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA-3-66-DG-UNV3-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA-3-66-DG-UNV3-M2? Enquire Now

FAQs

The PFMA-3-66-DG-UNV3-M2 uses a sturdy yoke mounting system designed for straightforward alignment and secure attachment to standard structural supports. Its 347-480 VAC input and 50/60 Hz compatibility simplify electrical integration across diverse facilities. When planning a retrofit, ensure appropriate clearance for servicing, confirm IP66/NEMA 4X protection against washdowns, and verify mounting height and angle to achieve the desired 6x6 light distribution. The unit’s dimmable driver supports compatible controls for reduced energy use during off-peak periods.
Key specs include a 30 W LED engine delivering 3000 lumens at an efficiency of 111 lm/W, with a voltage rating of 347-480 VAC and a frequency range of 50/60 Hz. The optical distribution is 6x6 with a diffused glass lens, providing uniform coverage and reduced glare. It also features a dimmable driver and a power factor greater than 0.90 with an amperage of 0.09 A, aligning with energy efficiency and electrical system design goals.
PFMA-3-66-DG-UNV3-M2 is rated for Ordinary/Non-Hazardous Locations and features an IP66 ingress protection along with a NEMA 4X enclosure. While it excels in demanding outdoor and washdown environments, it is not specified for hazardous or classified locations. For hazardous-area applications, select luminaires with appropriate ATEX/IECEx or NEC Zone certifications and enclosure ratings tailored to the specific risk assessment.
This floodlight complies with NEC/CEC standards for electrical installations and carries a NEMA 4X enclosure rating for harsh environments. Its IP66 specification ensures protection against powerful water jets and dust ingress, while the Ordinary/Non-Hazardous location classification supports use in general industrial facilities. Additional documentation is available in Eaton’s brochures and installation sheets to confirm compliance with local codes and industry requirements.
Upgrading to this 30 W LED floodlight typically yields energy savings from reduced wattage and improved efficiency (111 lm/W) compared with legacy lighting. The long LED life minimizes maintenance cycles and fixture replacements, while the dimmable driver enables task-based lighting control to optimize usage. In high-traffic outdoor areas, reliable IP66/NEMA 4X protection reduces downtime due to weather exposure, contributing to lower total cost of ownership over the system lifecycle.
