Eaton Crouse-Hinds PFMA-9-76-UNV1-M2 LED Floodlight - IP67
Part Number: PFMA-9-76-UNV1-M2
Quick Summary

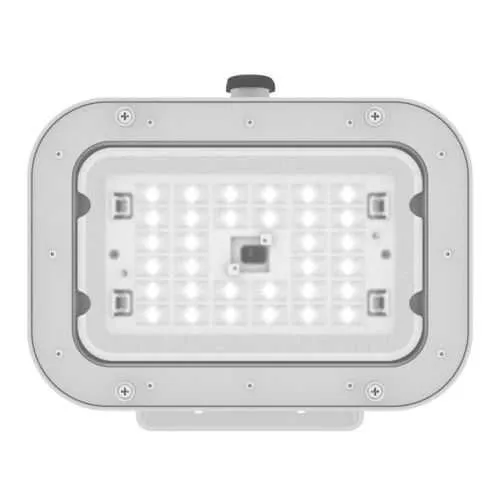

PFMA LED floodlight provides high-output illumination for harsh industrial environments and outdoor facilities. Many operators struggle with fixtures that fail in wet, dusty, or vibration-heavy settings, driving maintenance costs and downtime. The Champ Pro PFMA is built to endure these conditions with an IP67 ingress rating, NEMA 4X corrosion resistance, and NEC/CEC compliance for Ordinary/Non-Hazardous locations. Its 9000 lumens at 162 lm/W and a 58W LED engine deliver bright, uniform coverage with long service life. Durable die-cast aluminum housing with gray epoxy powder coat combines resilience with consistent performance. Easy yoke mounting and a 3/4" entry simplify installation in demanding industrial lighting applications, reducing install time and lifecycle costs.
Product Information
Extended Description
PFMA-9-76-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 0.59 - 0.22A, Cool white, 3/4" entry, Heat and impact resistant glass lens, 9000 lumens, 162 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 58W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA-9-76-UNV1-M2
UPC
662277153812
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.95 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
9000
Lumens per watt
162
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
58W
Dimming
Dimmable driver
Power factor
> 0.90
Amperage Rating
0.59 - 0.22A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1978 - PFMA M2 9L-15L LED Luminaire
Crouse-Hinds series PFMA LED Floodlights IES photometric files
Rugged die-cast aluminum housing provides durable, weatherproof protection that stands up to moisture, dust, and vibration, extending fixture life and lowering maintenance costs in outdoor and harsh indoor settings. This translates to lower total cost of ownership and fewer service calls in warehouses, loading docks, and exterior work areas. The PFMA delivers 9000 lumens at 58W with 162 lm/W efficiency, enabling significant energy savings and bright, uniform coverage for security and operational efficiency. A dimmable driver supports flexible control and integration with building automation, improving scene lighting and reducing energy waste in variable workloads. IP67 ingress protection and NEMA 4X corrosion resistance ensure reliable operation in wet or corrosive environments, preserving performance in coastal plants and chemically sensitive facilities. The 7x6 optical distribution focuses light where it’s needed, while the 100-277 VAC, 50/60 Hz power input supports regional electrical standards. A 3/4" entry and yoke mount simplify wiring and positioning, reducing installation time and error in retrofit projects. The durable heat and impact resistant glass lens protects optics from damage, helping maintain lumen output over time. Overall, this LED floodlight aligns with industrial lighting strategies to improve safety, compliance, and return on investment.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA-9-76-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA-9-76-UNV1-M2?
Enquire Now
FAQs
Yes. The PFMA-9-76-UNV1-M2 operates on 100-277 VAC with a 50/60 Hz frequency rating, making it suitable for diverse regional power systems and simplifying installation in retrofit projects.
The unit uses a Yoke mounting method, which allows easy aiming and orientation. A 3/4" entry supports straightforward wiring connections during installation.
It features IP67 ingress protection and a NEMA 4X enclosure rating for harsh environments, plus NEC/CEC standards compliance for ordinary/non-hazardous locations.
Yes. Its rugged aluminum housing, heat and impact resistant glass, IP67/NEMA 4X protection, and high lumen output make it ideal for outdoor and hazardous-free industrial areas requiring durable exterior lighting.
With 9000 lumens at 58W (162 lm/W) and a dimmable driver, you get strong illumination while reducing energy bills. The die-cast aluminum construction and long LED life limit maintenance and replacement costs over time.
