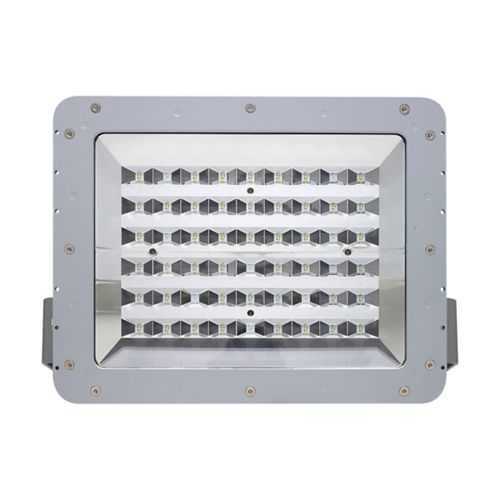

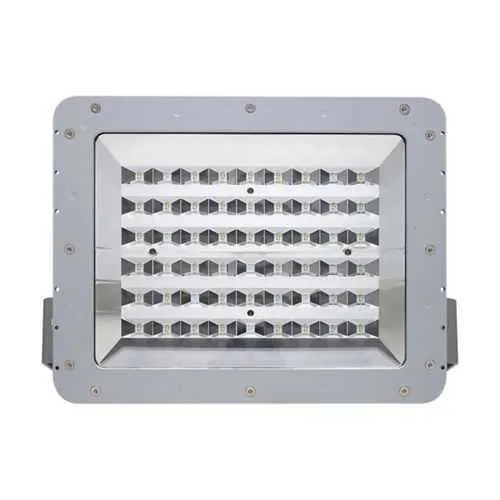

Eaton Crouse-Hinds PFMA13LWY-UNV1-76 Floodlight - IP66
Part Number: PFMA13LWY-UNV1-76
Quick Summary
PFMA13LWY-UNV1-76 is a Champ Pro LED floodlight delivering high-output industrial site illumination. Facilities often suffer downtime and elevated maintenance costs when outdoor lighting fails in dusty, damp, or vibration-prone areas. This luminaire is built for ordinary/non-hazardous locations and meets IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC IEC standards, ensuring reliable performance in demanding environments. With a dimmable driver and energy-efficient 93 W design delivering 13,000 lumens at 140 lm/W, it lowers operating costs while delivering consistent, wide-area coverage for warehouses, loading docks, and outdoor workspaces. Its robust die-cast aluminum housing and heat- and impact-resistant glass lens help minimize maintenance and replacement cycles.
Product Information
Extended Description
PFMA13LWY-UNV1-76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, Warm white, Dimmable driver, 3/4" entry, 400W equiv, Heat and impact resistant glass lens, 13000 lumens, 140 lm/W, Die cast alum, Yoke mount, 100-277 Vac, 108-250 Vdc, 93W, 7x6 optics
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA13LWY-UNV1-76
UPC
662276886384
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
13000
Lumens per watt
140
Color temperature
Warm white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
93W
Dimming
Dimmable driver
Equivalent luminaire
400W
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens catalog page
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
IF 1891 - Champ LED Floodlight PFMA
Eaton Specification Sheet - PFMA13LWY-UNV1-76
Feature: High output LED floodlight delivers 13,000 lumens at 93 W, achieving about 140 lm/W; Business Impact: Enables bright, energy-efficient illumination with lower electricity costs; Application: Large open areas like warehouses and exterior yards. Application: Supports wide-area visibility critical for safety and productivity in industrial settings. Feature: Dimmable driver; Business Impact: Enables integration with controls and occupancy-based lighting to reduce energy use during low-traffic periods; Application: Dock doors, staging zones, and perimeter lighting where adaptive lighting improves efficiency. Feature: Rugged housing and lens (die-cast aluminum, heat- and impact-resistant glass); Benefit: Enhanced durability in dusty, humid, and vibration-prone environments reduces maintenance downtime; Application: Outdoor facilities, washdown areas, and harsh industrial spaces. Feature: IP66 ingress protection and NEMA 4X enclosure; Benefit: Weatherproof, corrosion-resistant performance guarding against dust, water jets, and harsh conditions; Application: Outdoor facades, loading docks, and plant perimeters. Feature: 7x6 optical distribution with 3/4" entry; Benefit: Precise light shaping for uniform coverage and easy wiring; Application: Facility-wide retrofits and new installations with straightforward mounting using the yoke mount.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA13LWY-UNV1-76
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA13LWY-UNV1-76?
Enquire Now
FAQs
PFMA13LWY-UNV1-76 uses a versatile yoke mounting arrangement that supports secure wall or ceiling installations. Its 3/4" conduit entry simplifies wiring, and the die-cast aluminum housing provides solid mechanical support. For installation, mount the unit with appropriate hardware, connect the 100-277 VAC or 108-250 VDC supply, ensure the IP66 seal is intact, and verify the ambient conditions meet the ordinary/non-hazardous location rating before energizing.
Expect 13,000 lumens from a 93 W LED source, achieving about 140 lm/W with warm white output. It supports 50/60 Hz operation, voltage tolerance of 100-277 VAC and 108-250 VDC, and a dimmable driver. The fixture uses a 7x6 optical distribution and a heat- and impact-resistant glass lens for durable, wide-area illumination.
This fixture is rated for Ordinary/Non-Hazardous Locations and is not intended for hazardous environments. It complies with NEC/CEC IEC standards and provides robust IP66/NEMA 4X protection suitable for warehouses, outdoor yards, and non-hazardous production areas, helping you meet regulatory requirements while maintaining reliability.
The PFMA13LWY-UNV1-76 supports NEC/CEC IEC standards, IP66 ingress protection, and a NEMA 4X enclosure. Additional certification references include ABS and UL/ULc listings in the broader product family. Always verify local codes and site-specific requirements when planning installations.
The LED design provides long life with reduced maintenance compared with traditional luminaires, while the dimmable driver allows integration with controls to optimize energy use. With 13,000 lumens at 93 W and 140 lm/W efficiency, facilities typically see lower energy bills and fewer replacements, improving total cost of ownership across warehouses, docks, and outdoor spaces.
