PFMA15LWY-UNV1-76

Part Number: PFMA15LWY-UNV1-76
PFMA15LWY-UNV1-76
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA15LWY-UNV1-76
Category

Product Information

Extended Description

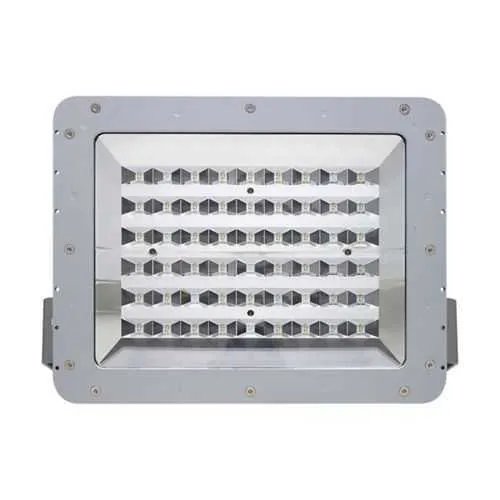

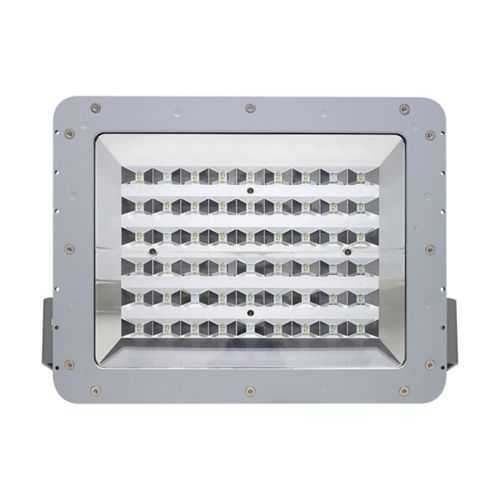

PFMA15LWY-UNV1-76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, Warm white, Dimmable driver, 3/4" entry, 450W equiv, Heat and impact resistant glass lens, 15000 lumens, 139 lm/W, Die cast alum, Yoke mt, 100-277 Vac, 108-250 Vdc, 108W, 7x6 optics
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA15LWY-UNV1-76
UPC
662276889293
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
31.8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
15000
Lumens per watt
139
Color temperature
Warm white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
108W
Dimming
Dimmable driver
Equivalent luminaire
450W
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series Champ PFMA LED Floodlights - 9,000 to 15,000 lumens catalog page Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification IF 1891 - Champ LED Floodlight PFMA Eaton Specification Sheet - PFMA15LWY-UNV1-76
