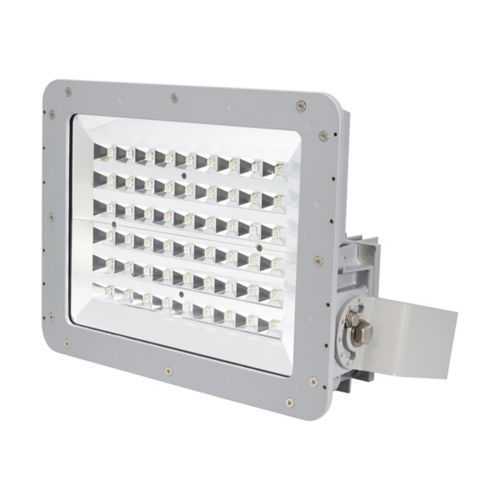

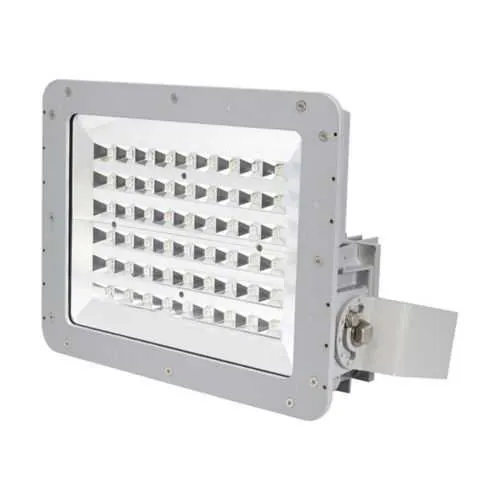

Eaton Crouse-Hinds PFMA20LCY/UNV1 76 LED Floodlight - IP66
Part Number: PFMA20LCY/UNV1 76
Quick Summary
PFMA20LCY/UNV1 76 LED floodlight is a high-output lighting solution for outdoor industrial facilities. Many maintenance teams struggle with reliability and energy costs when older fixtures fail in harsh environments. This unit delivers IP66 ingress protection, a NEMA 4X enclosure, and NEC/CEC compliance, helping you meet code and safety requirements with confidence. Its dimmable driver, wide voltage range of 100-277 Vac / 127-300 Vdc, and 115 lm/W efficiency reduce operating expenses while simplifying installation. With 20,000 lumens of cool white illumination and a rugged die-cast aluminum housing, it’s proven for exterior perimeters, loading docks, and outdoor work zones.
Product Information
Extended Description
PFMA20LCY/UNV1 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA high lumen LED floodlight, 1.76A, Cool white, Dimmable driver, 3/4", 600-750W equiv, Heat and impact resist glass lens, 20,000 lm, 115 lm/W, Die cast alum, 7x6 optics, 100-277 Vac, 127-300 Vdc, 177W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA20LCY/UNV1 76
UPC
662276648586
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
20000
Lumens per watt
115
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
177W
Dimming
Dimmable driver
Equivalent luminaire
600-750W
Power factor
> 0.90
Amperage Rating
1.76 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series industrial LED lighting solutions
Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
IF 1891 - Champ LED Floodlight PFMA
IF 1891 - Champ LED Floodlight PFMA
Eaton Specification Sheet - PFMA20LCY/UNV1 76
Feature: 20,000 lumens of LED output delivers bright, uniform illumination with long-range coverage. Business impact: significantly improves site visibility, reducing error rates and speeding material handling in outdoor areas. Application: ideal for exterior perimeters, loading docks, and outdoor work zones. Feature: high efficiency at 115 lumens per watt with a 177W input and a dimmable driver. Business impact: lowers energy use and cooling load while preserving lighting quality, contributing to lower total cost of ownership. Application: bulk lighting for large outdoor spaces and nighttime operations that require adjustable illumination levels. Feature: rugged IP66 enclosure with NEMA 4X protection and heat and impact resistant glass. Business impact: withstands water, dust, and harsh weather, reducing maintenance frequency and downtime. Application: outdoor facilities, wet locations, and industrial campuses where reliability matters. Feature: robust die-cast aluminum housing, 7x6 optical distribution, 3/4 inch entry, and yoke mounting for easy alignment. Business impact: simplifies installation and retrofit in existing sites, lowers installation labor costs, and allows precise aiming for targeted task lighting. Application: mounting on poles, walls, or ceilings around yards and docks. Feature: compliance with NEC/CEC, ordinary/non-hazardous area classification, IP66/NEMA 4X protection, and ABS certification documentation. Business impact: ensures regulatory compliance and risk reduction across facilities, while providing thorough documentation for audits. Application: new-build or retrofit projects in non-hazardous outdoor environments.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA20LCY/UNV1 76
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA20LCY/UNV1 76?
Enquire Now
FAQs
PFMA20LCY/UNV1 76 supports a universal voltage range of 100-277 VAC and 127-300 VDC, with a dimmable driver and a 50/60 Hz supply. For installation, connect to a compliant power source within these ranges and use the 3/4" entry with the yoke mount to target the desired outdoor area. Always follow local electrical codes.
Its IP66 ingress protection and NEMA 4X enclosure guard against water and dust while withstanding harsh weather. The heat and impact resistant glass lens protects optics, and the rugged die-cast aluminum housing provides durability for exterior perimeters, loading docks, and outdoor work zones, ensuring reliable operation with minimal maintenance.
This model adheres to NEC/CEC standards for non-hazardous locations, features IP66 protection and a NEMA 4X enclosure, and has documented ABS certification. These certifications support regulatory compliance and risk mitigation in typical industrial outdoor environments.
Plan for a yoke-mounted installation with a 3/4 inch entry. The unit measures 15.5 in long, 12 in high, and 7 in wide, weighs 32.5 lb, and runs on a universal voltage supply. Ensure mounting structure supports the weight and provide proper aiming for uniform exterior illumination.
With 20,000 lumens at 177W (≈115 lm/W) and a dimmable driver, you achieve significant energy savings versus traditional 600–750W luminaires. The rugged enclosure and lens protection reduce maintenance frequency, while long life and robust construction minimize downtime in outdoor environments, delivering lower total cost of ownership over time.
