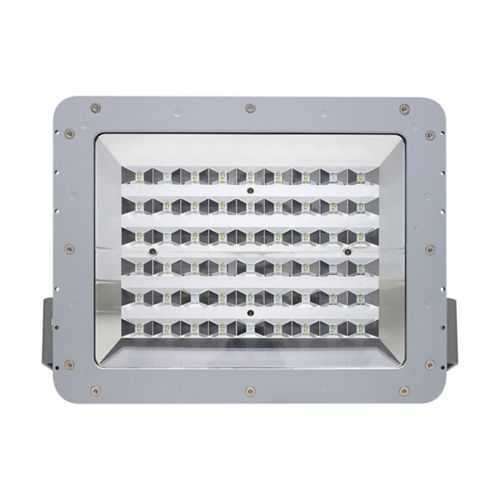

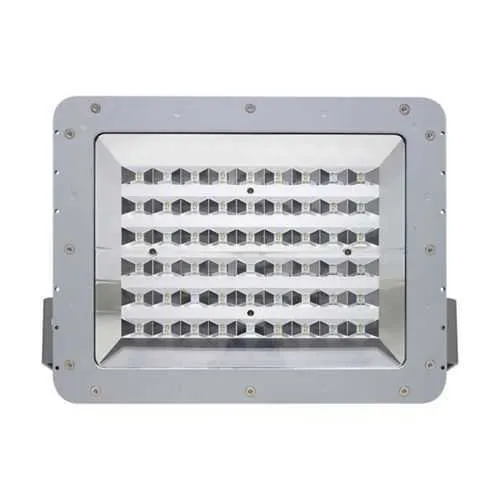

Eaton Crouse-Hinds PFMA20LCY/UNV1 76 M20 LED floodlight IP66

Part Number: PFMA20LCY/UNV1 76 M20
PFMA20LCY/UNV1 76 M20
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA20LCY/UNV1 76 M20
Category

Quick Summary

PFMA20LCY/UNV1 76 M20 LED floodlight delivers high-output illumination for industrial facilities and outdoor locations. Maintenance teams often struggle with reliability in harsh environments, where moisture, heat, and dust accelerate component wear. This fixture is NEC/CEC compliant, IP66 rated, and built in a NEMA 4X enclosure to withstand washdown and rugged conditions. With a dimmable driver and 20 mm entry size, it supports flexible installation across varying electrical systems while delivering energy savings. In short, it reduces downtime and procurement complexity by combining robust protection with powerful, efficient lighting.

Product Information

Extended Description

PFMA20LCY/UNV1 76 M20 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 1.76A, Cool, Dimmable driver, 20mm, 600-750W equiv, Heat and impact resistant glass lens, 20,000 lm, 115 lm/W, Die cast alum, 7x6 optics, Gray paint, 100-277 Vac, 127-300 Vdc, 177W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA20LCY/UNV1 76 M20
UPC
662276788886
Product Length/Depth
17.85 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
20000
Lumens per watt
115
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
20 mm
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
177W
Dimming
Dimmable driver
Equivalent luminaire
600-750W
Power factor
> 0.90
Amperage Rating
1.76 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification IF 1850 - Champ PFMA20L/25L LED Floodlights IF 1850 - Champ PFMA20L/25L LED Floodlights Eaton Specification Sheet - PFMA20LCY/UNV1 76 M20
High-lumen output provides broad-area coverage for outdoor yards, facility perimeters, and high-bay spaces, enabling safer operation and faster recognition of hazards. This translates to fewer fixtures required and lower energy costs thanks to the 20,000 lumen output at 115 lm/W from a 177W LED source. The wide voltage range of 100-277 Vac and 127-300 Vdc, paired with a dimmable driver, simplifies installation across sites with different power characteristics and enables demand-based lighting control to reduce energy spend. Rugged die-cast aluminum housing and a heat and impact resistant glass lens deliver true IP66 and NEMA 4X protection, improving reliability in washdown zones and exposed outdoor environments while lowering maintenance cycles. The 7x6 optical distribution focuses light where it’s needed, reducing glare and improving visibility in loading docks and perimeter fencing. A 20 mm entry and Yoke mounting boost installation convenience, enabling quick retrofits and flexible mounting options across varied industrial spaces.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA20LCY/UNV1 76 M20

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA20LCY/UNV1 76 M20? Enquire Now

FAQs

The PFMA20LCY/UNV1 76 M20 uses a versatile yoke mount and a 20 mm entry for conduit or gland entries. It supports a wide voltage range of 100-277 Vac and 127-300 Vdc, suitable for most industrial power systems. To install, attach the yoke, connect wiring per local codes, seal for IP66 protection, and verify mounting clearance for ventilation and maintenance.
This luminaire delivers 20,000 lumens at an efficiency of 115 lm/W from a 177W LED source. It operates in a 50/60 Hz environment, with a voltage tolerance of 100-277 Vac or 127-300 Vdc. The design provides durable illumination with a color temperature described as Cool white, suitable for high-contrast visibility in industrial settings.
Yes. It is rated IP66 and built in a NEMA 4X enclosure, enabling reliable operation in washdown and exposed outdoor environments. It is classified for Ordinary/Non-Hazardous Locations under NEC/CEC standards, making it well-suited for general industrial outdoor areas, parking lots, and perimeter lighting.
The fixture complies with NEC/CEC standards and offers NEC/CEC certification support. It carries IP66 ingress protection and a NEMA 4X enclosure rating, ensuring strong protection against dust and water. These certifications facilitate safe installation in non-hazardous outdoor environments and align with typical industrial code requirements.
LED PFMA floodlights deliver long lifecycle performance with substantially higher energy efficiency (20,000 lm at 115 lm/W) and a dimmable driver that supports zoning and demand-based control. This reduces energy bills and maintenance cycles, since LED fixtures require fewer replacements, less ballast maintenance, and lower heat-related wear compared with HID alternatives, delivering faster payback in outdoor industrial settings.
