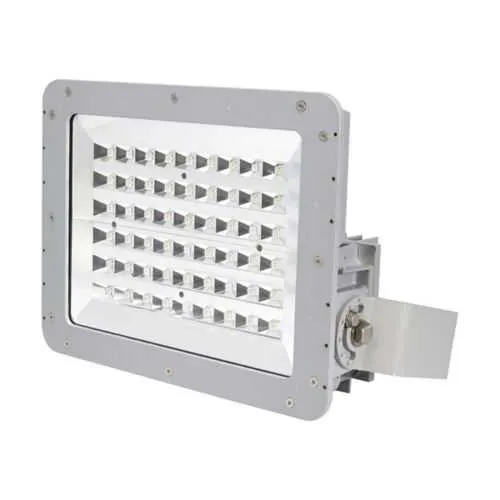

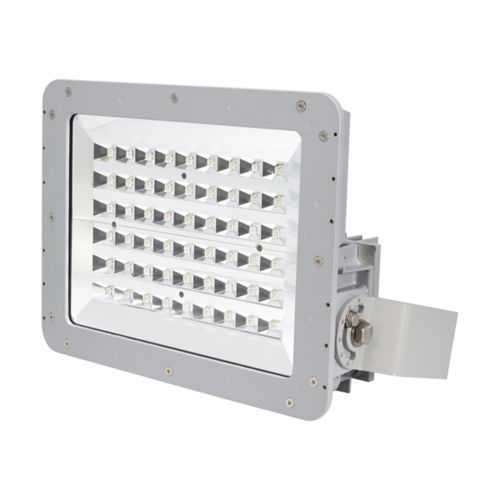

Eaton Crouse-Hinds PFMA20LCY/UNV34 76 LED Floodlight - IP66, 4X

Part Number: PFMA20LCY/UNV34 76
PFMA20LCY/UNV34 76
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA20LCY/UNV34 76
Category

Quick Summary

The Eaton Crouse-Hinds PFMA20LCY/UNV34 76 LED floodlight is a high-lumen lighting solution designed for industrial facilities and outdoor sites. It helps address maintenance headaches and rising energy costs by delivering robust, long-lasting illumination in challenging environments. With IP66 ingress protection, a NEMA 4X enclosure, and NEC/CEC compliance, this luminaire is built to withstand dust, water, and regulatory demands. Operating across 347–480 VAC with a dimmable driver, it blends energy efficiency with modern control compatibility. At 20,000 lumens and 115 lm/W, it reduces fixture counts and supports lower total cost of ownership while maintaining safe, consistent visibility for critical operations.

Product Information

Extended Description

PFMA20LCY/UNV34 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA high lumen LED floodlight, 0.52A, Cool white, Dimmable driver, 3/4", 600-750W equivalent, Heat and impact resistant glass lens, 20,000 lm, 115 lm/W, Die cast aluminum, 7x6 optics, 347-480 Vac, 177W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA20LCY/UNV34 76
UPC
662276648609
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
20000
Lumens per watt
115
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
177W
Dimming
Dimmable driver
Equivalent luminaire
600-750W
Power factor
> 0.90
Amperage Rating
0.52 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ PFMA LED Floodlights ABS certification Champ PFMA LED Floodlights ABS certification Champ PFMA LED Floodlights ABS certification IF 1891 - Champ LED Floodlight PFMA IF 1891 - Champ LED Floodlight PFMA Eaton Specification Sheet - PFMA20LCY/UNV34 76
High lumen output and efficiency translate to fewer fixtures required for large areas, reducing installation time and maintenance cycles. The PF > 0.90 and 177W consumption deliver strong energy savings relative to traditional 600-750W equivalents, supporting lower operating costs on industrial sites. The 347–480 VAC range and dimmable driver simplify integration with existing power systems and controls, enabling better lighting controls and demand management. The die-cast aluminum housing, heat and impact resistant glass lens, and Gray finish provide reliable performance in harsh environments, protecting against corrosion and impact while keeping aesthetics consistent on outdoor facilities. IP66 and NEMA 4X ratings ensure continued operation in dusty, wet, and harsh outdoor locations, reducing downtime and service calls. The 7x6 optical distribution concentrates light where needed, improving site safety for areas like loading docks and warehouses. The 3/4" entry and Yoke mounting enable quick, flexible installation on standard frames, while the long lifecycle minimizes replacement costs and labor.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA20LCY/UNV34 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA20LCY/UNV34 76? Enquire Now

FAQs

Installation is straightforward with the PFMA20LCY/UNV34 76’s 3/4 inch entry size and Yoke mounting. The unit’s 15.5 in length, 12 in height, and 7 in width fit standard mounting frames, and its 32.5 lb weight helps with on-site handling. The luminaire operates across 347–480 VAC and features a dimmable driver, enabling integration with existing controls and lighting management systems without requiring special transformers or recalibration.
The PFMA20LCY/UNV34 76 produces 20,000 lumens at 177W, delivering about 115 lm/W. It has a power factor greater than 0.90 and an amperage rating of 0.52 A, with a voltage range of 347–480 VAC and 50/60 Hz. This combination delivers high brightness with efficient energy use, reducing running costs and helping meet power quality and efficiency targets in industrial facilities.
Yes. The unit features IP66 ingress protection and a NEMA 4X enclosure, making it suitable for outdoor yards and harsh indoor environments. It is classified for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards, ensuring it meets typical regulatory and safety requirements for industrial lighting installations.
The PFMA floodlight includes NEC/CEC compliance, IP66 and NEMA 4X ratings, and access to multiple documentation sources such as installation sheets, ABS certification reports, and UL-related data. These resources support safe commissioning, ongoing maintenance planning, and regulatory traceability for industrial lighting projects.
With 20,000 lumens and a long-lifecycle LED design, the PFMA reduces the number of fixtures needed and minimizes maintenance cycles. The dimmable driver allows you to tailor lighting to occupancy or time-of-day needs, saving energy. The rugged die-cast aluminum construction, heat and impact resistant glass, and protective IP66/NEMA 4X ratings further extend service intervals and reduce replacement costs over the life of the installation.
