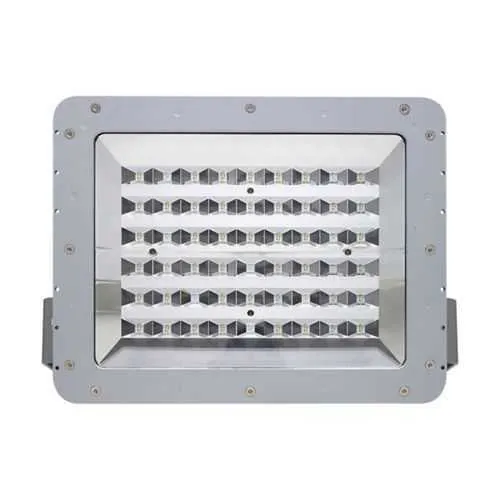

Eaton Crouse-Hinds PFMA20LWY/UNV1 76 LED Floodlight - IP66

Part Number: PFMA20LWY/UNV1 76
PFMA20LWY/UNV1 76
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA20LWY/UNV1 76
Category

Quick Summary

PFMA20LWY/UNV1 76 LED floodlight from Eaton Crouse-Hinds delivers high-output illumination for industrial facilities and outdoor locations. Engineers often wrestle with corrosive atmospheres, washdown requirements, and unreliable power quality that lead to outages and rising maintenance costs. Reliability is reinforced by IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC compliance, ensuring safe operation in ordinary and non-hazardous locations. The dimmable driver and broad voltage range simplify multi-site deployment and energy management, while the rugged die-cast aluminum housing supports long service life; overall, this fixture delivers predictable performance and lower total cost of ownership for lighting upgrades and new builds.

Product Information

Extended Description

PFMA20LWY/UNV1 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 1.76A, Warm white, Dimmable driver, 3/4", 600-750W equiv, Heat and impact resist glass lens, 20,000 lm, 115 lm/W, Die cast alum, 7x6 optics, Gray paint, 100-277 Vac, 127-300 Vdc, 177W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA20LWY/UNV1 76
UPC
662276706811
Product Length/Depth
17.85 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
20000
Lumens per watt
115
Color temperature
Warm white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
177W
Dimming
Dimmable driver
Equivalent luminaire
600-750W
Power factor
> 0.90
Amperage Rating
1.76 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ PFMA LED Floodlights ABS certification Champ PFMA LED Floodlights ABS certification Champ PFMA LED Floodlights ABS certification IF 1891 - Champ LED Floodlight PFMA IF 1891 - Champ LED Floodlight PFMA Eaton Specification Sheet - PFMA20LWY/UNV1 76
High-output LED performance drives business value. Feature → Business Impact → Application: 20,000 lumens at 115 lm/W with a 177W LED array provides bright, wide-area coverage for outdoor yards, loading docks, and perimeter lighting, reducing the number of fixtures and lowering maintenance cycles. Feature → Energy efficiency and control → Application: 100-277 Vac and 127-300 Vdc compatibility with a dimmable driver enables precise lighting control and energy savings across varied electrical installations. Feature → Durability for harsh environments → Application: Die-cast aluminum housing, heat and impact resistant glass, IP66 and NEMA 4X protection support washdowns, dust resistance, and corrosion resistance in chemical plants and offshore sites. Feature → Installation efficiency → Application: 3/4 inch entry and Yoke mounting simplify retrofits and new installations, reducing install time and labor costs while delivering 7x6 optical distribution for targeted illumination. Feature → Compliance and performance reliability → Application: NEC/CEC standards with strong power quality (PF > 0.90) ensures compliant operation and minimal rework across regulated sites.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA20LWY/UNV1 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA20LWY/UNV1 76? Enquire Now

FAQs

The unit uses a 3/4 inch entry and a Yoke mounting system for straightforward wall or mast installation. Plan for a 17.85 inch length, 12 inch height, and 7 inch width, and connect to a suitable 100-277 Vac or 127-300 Vdc supply. Ensure IP66-rated seals and a washdown-friendly surface for outdoor or marine environments.
It operates at 177W with 20,000 lumens and a luminous efficacy of 115 lm/W. The amperage is 1.76 A, and the power factor is greater than 0.90. Voltage range covers 100-277 Vac and 127-300 Vdc, with a 50/60 Hz frequency, and a dimmable driver for lighting control.
Yes. It is rated IP66 and NEMA 4X, and lists Ordinary/Non-Hazardous location classification, making it suitable for outdoor, industrial yards, walkways, and loading areas where dust and water resistance are essential.
The fixture adheres to NEC/CEC standards and includes IP66 ingress protection and NEMA 4X enclosure. Documentation also covers ABS and UL-related certification references in the provided downloads, supporting compliance with regional regulatory requirements.
With 20,000 lumens at 115 lm/W and a dimmable, wide-range driver, you gain energy efficiency and precise control, reducing utility costs. Its durable die-cast aluminum housing and heat-resistant lens extend service life, lowering replacement frequency and maintenance labor in harsh environments.
