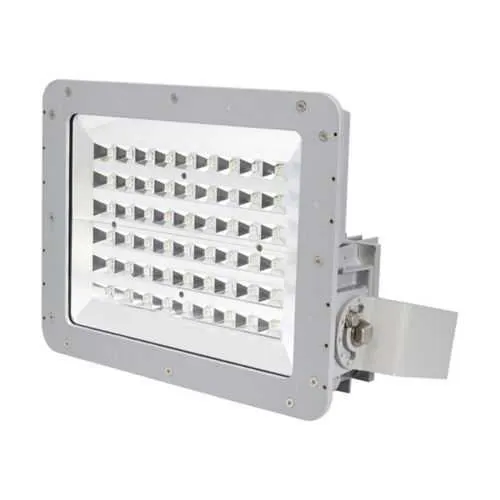

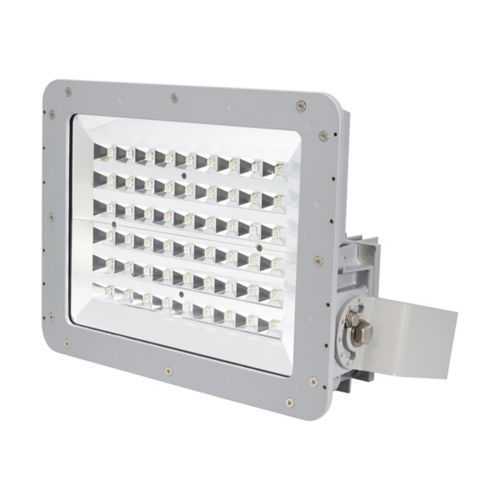

Eaton Crouse-Hinds PFMA25LCY/UNV1 76 LED Floodlight - IP66
Part Number: PFMA25LCY/UNV1 76
Quick Summary
The Eaton Crouse-Hinds PFMA25LCY/UNV1 76 LED floodlight is a high-lumen outdoor lighting solution designed for heavy industrial sites. Operators often struggle with reliability, glare, and costly maintenance in exposed work zones. This fixture meets IP66 and NEMA 4X standards and NEC/CEC compliance to help you stay compliant. With 25,000 lumens at 217 watts and a dimmable driver, it delivers energy-efficient, reliable performance for outdoor lighting. Durable die-cast aluminum housing and heat-resistant glass reduce maintenance while supporting fast, trouble-free installation. Designed for 50/60 Hz operation across a wide voltage range, it fits both new builds and retrofits. In practice, facilities can shorten project timelines thanks to straightforward wiring, mounting options, and robust field performance.
Product Information
Extended Description
PFMA25LCY/UNV1 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA high lumen LED floodlight, 2.18A, Cool white, Dimmable driver, 3/4", 750-1000W equiv, Heat and impact resist glass lens, 25,000 lm, 117 lm/W, Die cast alum, 7x6 optics, 100-277 Vac, 127-300 Vdc, 217W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA25LCY/UNV1 76
UPC
662276648623
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
36.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
117
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
217W
Dimming
Dimmable driver
Equivalent luminaire
750-1000W
Power factor
> 0.90
Amperage Rating
2.18 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
IF 1850 - Champ PFMA20L/25L LED Floodlights
IF 1850 - Champ PFMA20L/25L LED Floodlights
Eaton Specification Sheet - PFMA25LCY/UNV1 76
Feature: High lumen output up to 25,000 lumens and 217W input; Business Impact: Delivers bright, uniform illumination over large outdoor areas, reducing shadowed zones and enhancing site safety; Application: Outdoor yards, loading docks, and perimeters. Feature: Dimmable driver; Business Impact: Enables precise lighting control to balance energy use and occupancy needs, cutting operating costs; Application: Plant ramps and access roads where lighting levels vary by time of day. Feature: 7x6 optical distribution; Business Impact: Optimizes light placement for wide-area coverage with minimal glare, improving workflow visibility; Application: Outdoor work zones and staging areas. Feature: IP66 and NEMA 4X enclosure; Business Impact: Provides rugged protection against dust, water ingress, and corrosion in harsh environments; Application: Wet, dusty industrial sites. Feature: Die-cast aluminum housing and heat-resistant glass; Business Impact: Extends product life and reduces maintenance cycles, lowering total cost of ownership; Application: Exterior floodlighting for industrial facilities.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA25LCY/UNV1 76
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA25LCY/UNV1 76?
Enquire Now
FAQs
PFMA25LCY/UNV1 76 uses a 3/4 inch entry and a Yoke mounting method, enabling straightforward installation on standard support structures. It operates over a wide voltage range of 100-277 VAC and 127-300 VDC, and features a dimmable driver for flexible lighting control. This makes retrofits and new installations efficient, minimizing downtime and wiring complexity while ensuring reliable performance in industrial environments.
The PFMA25LCY/UNV1 76 carries IP66 ingress protection and a NEMA 4X enclosure for robust outdoor and corrosive-area performance. It conforms to NEC/CEC standards for safe electrical installation and operation in non-hazardous locations. These certifications support compliance and mitigate risk in industrial facilities, with additional ABS and UL/Canada references available in documentation.
This LED floodlight delivers 25,000 lumens at a competitive 117 lumens per watt, using a 217W input. Its 7x6 optical distribution enables broad, uniform coverage, while a cool white color temperature ensures good contrast and visibility. The dimmable driver allows adjustment to energy targets and occupancy patterns, supporting energy savings without sacrificing site safety.
Yes, PFMA25LCY/UNV1 76 is designed for Ordinary/Non-Hazardous Locations and is rated IP66 for ingress protection with a NEMA 4X enclosure. This combination provides reliable moisture and dust resistance and protection against corrosion, making it ideal for outdoor industrial areas such as yards, docks, and perimeter lighting where weather exposure is a concern.
LED technology and a long service life reduce maintenance cycles and labor costs, while dimmable operation lowers energy consumption during low-traffic periods. The robust die-cast aluminum housing and heat-resistant glass further extend lifespan in harsh environments. Overall, you can expect lower total cost of ownership and faster return on investment through reduced energy use and fewer field service calls.
