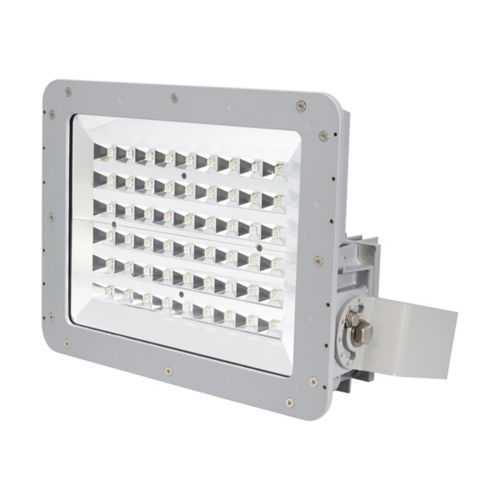

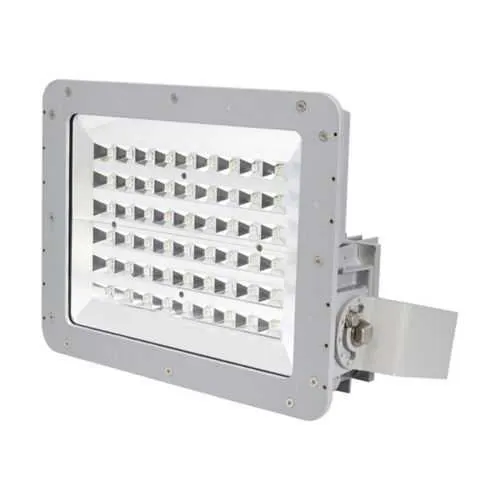

Eaton Crouse-Hinds PFMA25LCY/UNV1 76 S891 LED Floodlight - IP66

Part Number: PFMA25LCY/UNV1 76 S891
PFMA25LCY/UNV1 76 S891
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA25LCY/UNV1 76 S891
Category

Quick Summary

PFMA25LCY/UNV1 LED floodlight delivers high-lumen area illumination for harsh industrial environments. Maintenance downtime and water ingress risk challenge plant reliability, especially in outdoor spaces. With IP66 and NEMA 4X protection, plus UL certification and NEC/CEC alignment, this fixture meets rigorous codes and harsh conditions. In practice, its dimmable driver, wide voltage range, and durable housing translate into energy savings, simpler installs, and longer service life. This combination supports faster commissioning, reduced maintenance cycles, and predictable performance across temperature and supply variations. Whether upgrading yards, loading docks, or outdoor work zones, the PFMA25LCY/UNV1 helps facilities meet safety standards while controlling operating costs.

Product Information

Extended Description

PFMA25LCY/UNV1 76 S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA high lumen LED floodlight, 2.18A, Cool white, Dimmable driver, 3/4", 750-1000W equiv, Diffused glass lens, 25,000 lumens, 117 lm/W, Die cast aluminum, 7x6 optics, 100-277 Vac, 127-300 Vdc, 217W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA25LCY/UNV1 76 S891
UPC
662276648630
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
117
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Diffused glass
Finish color
Gray
Wattage
217W
Dimming
Dimmable driver
Equivalent luminaire
750-1000W
Power factor
> 0.90
Amperage Rating
2.18 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification IF 1891 - Champ LED Floodlight PFMA IF 1891 - Champ LED Floodlight PFMA Eaton Specification Sheet - PFMA25LCY/UNV1 76 S891
Feature: 25,000 lumens at 217W with 117 lm/W efficiency. Business Impact: High-visibility lighting reduces accidents and improves workflow in industrial sites, while delivering substantial energy savings compared to legacy HID solutions. Application: Ideal for outdoor yards, parking aprons, loading docks, and large facility perimeters requiring reliable, high-output LED floodlighting. Feature: Dimmable driver with a broad voltage range (100-277 Vac, 127-300 Vdc). Business Impact: Enables flexible control strategies, occupancy sensing, and daylight harvesting to lower energy use and extend equipment life. Application: Suitable for facilities with variable power infrastructure or control systems across multiple zones. Feature: IP66 ingress protection and NEMA 4X enclosure with a diffused glass lens. Business Impact: Robust weatherproofing and impact resistance reduce maintenance cycles and replacement costs in harsh environments. Application: Outdoor and non-hazardous locations exposed to dust, rain, or spray zones. Feature: 7x6 optical distribution. Business Impact: Delivers uniform coverage with minimized hot spots, enhancing safety and productivity in high-traffic areas. Application: Perimeter lighting, outdoor corridors, and vehicle-traffic corridors around industrial plants. Feature: Die-cast aluminum housing and gray finish. Business Impact: Durable construction resists corrosion and temperature swings, lowering lifecycle costs. Application: Tough outdoor environments and marine-adjacent facilities where weather exposure is a concern. Feature: Mounting versatility with a Yoke, 3/4" entry and compact footprint (15.5 in L, 12 in H, 7 in W). Business Impact: Simplifies installation and retrofit projects, reducing labor time and on-site disruption. Application: Roof mounts, wall brackets, or pedestal adaptions in industrial facilities. Feature: 25,000 lumens, cool white color temperature. Business Impact: Crisp lighting that supports accurate asset recognition, signage readability, and worker safety. Application: General area illumination for warehouses, yards, and outdoor workspaces.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA25LCY/UNV1 76 S891

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA25LCY/UNV1 76 S891? Enquire Now

FAQs

The fixture uses a Yoke mounting with a 3/4" entry. Its dimensions (15.5 in L, 12 in H, 7 in W) and 32.5 lb weight facilitate retrofit and new installs. Use standard mounting hardware compatible with the yoke and ensure a secure surface for outdoor/indoor applications. This enables quick alignment and reliable targeting of the 7x6 optical distribution.
It delivers 25,000 lumens at 217W with an efficiency of 117 lm/W. The unit operates across a wide voltage range of 100-277 Vac and 127-300 Vdc and features a dimmable driver. The power factor is greater than 0.90, and the frequency rating is 50/60 Hz, making it suitable for diverse facility power systems.
Yes. It is IP66 rated with a NEMA 4X enclosure, designed for ordinary/non-hazardous locations. This combination provides robust weatherproofing and protection against dust and heavy washdown, making it ideal for outdoor yards, ramps, and loading zones.
The fixture aligns with NEC/CEC standards and UL-certified components, with IP66 ingress protection and a NEMA 4X housing. These certifications support compliance in many industrial facilities and reduce risk during audits or safety inspections.
The LED technology and durable die-cast aluminum housing minimize replacement cycles and maintenance costs. The dimmable driver enables energy optimization, supporting faster payback in facilities pursuing energy management and occupancy-based lighting strategies.
