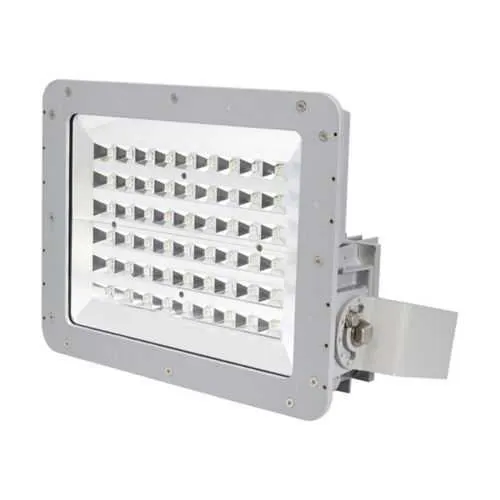

Eaton Crouse-Hinds PFMA25LCY/UNV34 76 LED Floodlight - IP66

Part Number: PFMA25LCY/UNV34 76
PFMA25LCY/UNV34 76
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA25LCY/UNV34 76
Category

Quick Summary

PFMA25LCY/UNV34 76 LED floodlight from Eaton Crouse-Hinds provides high-output illumination for industrial sites. Facilities often struggle with short lamp life, maintenance demands, and inconsistent performance in harsh environments; this fixture addresses those challenges with rugged die-cast aluminum housing and a sealed glass lens. Built for ordinary/non-hazardous locations, it carries IP66 ingress protection and a NEMA 4X enclosure, plus NEC/CEC compliance for safe operation in regulated settings. The unit supports a dimmable driver and a broad voltage window, enabling integration with control systems and reducing wiring complexity. With 25,000 lumens, 117 lm/W efficiency, and a 217W load, it delivers reliable brightness while helping lower energy costs across large-area applications.

Product Information

Extended Description

PFMA25LCY/UNV34 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA high lumen LED floodlight, 0.63A, Cool white, Dimmable driver, 3/4", 750-1000W equiv, Heat and impact resistant glass lens, 25,000 lumens, 117 lm/W, Die cast aluminum, 7x6 optics, 347-480 Vac, 217W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA25LCY/UNV34 76
UPC
662276648647
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
117
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
217W
Dimming
Dimmable driver
Equivalent luminaire
750-1000W
Power factor
> 0.90
Amperage Rating
0.19A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification IF 1850 - Champ PFMA20L/25L LED Floodlights IF 1850 - Champ PFMA20L/25L LED Floodlights Eaton Specification Sheet - PFMA25LCY/UNV34 76
High lumen output and efficiency deliver the brightness needed while minimizing installed wattage. This translates to lower total cost of ownership and fewer fixtures to service in large facilities, parking areas, and outdoor workyards. The dimmable driver enables flexible lighting control, improving energy savings and comfort when used with occupancy sensors or building management systems in warehouses and outdoor facilities. The wide voltage range of 347-480 Vac with 50/60 Hz reduces transformer requirements and simplifies retrofit projects across campuses or plants. Rugged IP66 ingress protection and a NEMA 4X enclosure, paired with heat and impact resistant glass and a die-cast aluminum housing, ensure long service life in harsh environments with minimal maintenance. Easy installation is supported by a 3/4" entry, yoke mounting, and a compact footprint that fits standard mounting hardware for rapid deployment on new builds or upgrades.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA25LCY/UNV34 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA25LCY/UNV34 76? Enquire Now

FAQs

The PFMA25LCY/UNV34 76 is designed with a yoke mounting method and a 3/4" entry. It supports standard mounting hardware and wiring within a broad 347-480 VAC supply, 50/60 Hz, allowing straightforward integration into existing outdoor or industrial sites without special adapters.
This fixture operates at 347-480 VAC, 50/60 Hz, drawing 217W with an amperage of 0.19A. It delivers 25,000 lumens with a lumen-per-watt efficiency of 117 and a power factor greater than 0.90, providing strong brightness with energy efficiency suitable for large-area illumination.
Yes. It is rated IP66 and NEMA 4X, designed for ordinary/non-hazardous locations. This makes it appropriate for outdoor yards, parking lots, and facility exteriors where dust, water jets, and harsh conditions may be present, while meeting NEC/CEC standards for safe operation.
The unit provides 25,000 lumens with a measured efficiency of 117 lm/W, at 217W. This combination yields strong, uniform illumination across large areas, reducing the number of fixtures required and lowering ongoing energy costs in industrial settings.
With a rugged die-cast aluminum housing, heat and impact resistant glass lens, and a long service life, the PFMA25LCY/UNV34 minimizes maintenance cycles. The dimmable driver and wide voltage range support integration with controls, enabling energy savings and a faster return on investment in facilities with extensive outdoor lighting needs.
