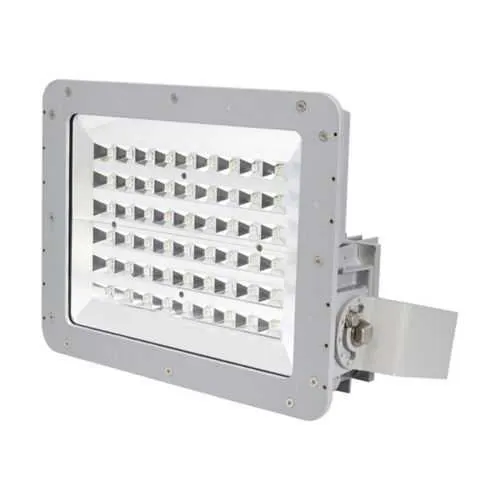

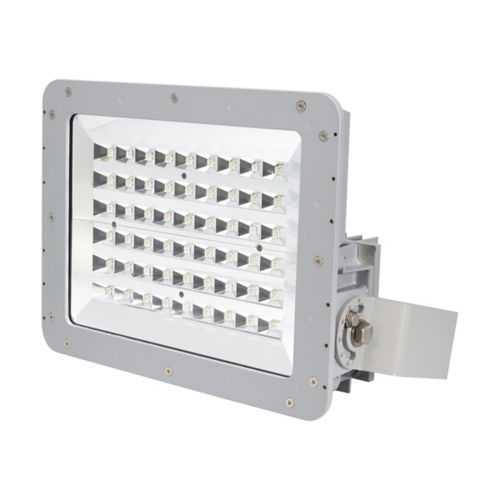

Eaton Crouse-Hinds PFMA25LCY/UNV34 LED Floodlight - IP66

High lumen output delivers wide-area illumination with fewer fixtures, driving lower total installed cost and improved site safety. The PFMA25LCY/UNV34 emits 25,000 lumens at 117 lm/W from a 217 W source, enabling large areas to be covered with reliable light in outdoor industrial settings such as yards and staging areas. Dimmable driver and electrical compatibility enable flexible control and energy savings. With a 347-480 VAC rating and 50/60 Hz operation, the luminaire integrates with common plant power systems, and the dimming capability supports occupancy-based or scheduled lighting schemes, reducing waste and extending ballast life. Durable housing and lens protect the investment. The die-cast aluminum enclosure, IP66 ingress protection, and NEMA 4X rating resist dust, water, and corrosion in harsh environments, while a diffused glass lens provides uniform illumination and minimized maintenance. Installation and mounting advantages. A Yoke mounting and a 3/4" entry simplify alignment and conduit connections, while the unit’s 15.5" length, 12" height, and 7" width and 32.5 lb weight convey a robust, field-installable solution suitable for mounting on structures or poles. Compliance and lifecycle efficiency. NEC/CEC alignment, Ordinary/Non-Hazardous location classification, and UL certification support regulatory compliance, while the high lumen efficiency and long life reduce total cost of ownership through better energy performance and fewer replacements.
