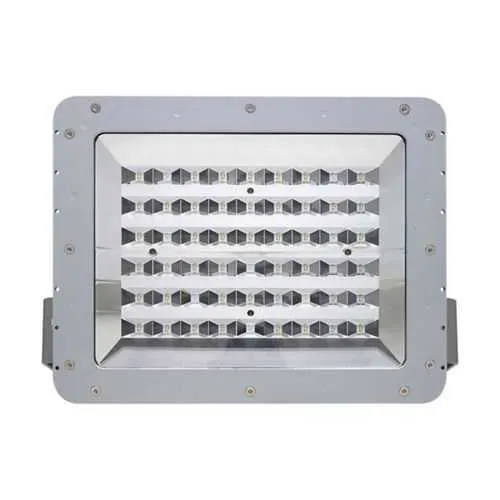

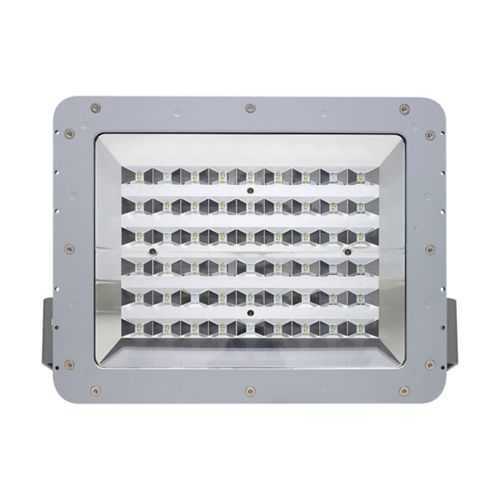

PFMA25LCY/UNV34 LED Floodlight - Eaton Crouse-Hinds IP66

Part Number: PFMA25LCY/UNV34 76 S891 BZ
PFMA25LCY/UNV34 76 S891 BZ
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA25LCY/UNV34 76 S891 BZ
Category

Quick Summary

PFMA25LCY/UNV34 LED floodlight provides high-output illumination for industrial outdoor areas. Engineers often struggle with reliable performance in harsh environments and complex wiring projects. This fixture carries IP66 ingress protection, NEMA 4X corrosion resistance, and NEC/CEC compliance, with Canadian certification reports supporting cross-border installations. The dimmable driver and 347–480 VAC input simplify wiring in mixed-voltage facilities, while the heat- and impact-resistant glass lens survives tough conditions. By combining efficiency—25,000 lumens at 117 lm/W—with rugged construction and easy mounting, it helps facilities reduce energy costs, downtime, and maintenance cycles while meeting safety and regulatory requirements. It’s a versatile choice for mid- to large-scale projects.

Product Information

Extended Description

PFMA25LCY/UNV34 76 S891 BZ Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA high lumen LED floodlight, 0.63A, Cool white, Dimmable driver, 3/4" entries, 750-1000W equiv, Diffused glass lens, 25,000 lm, 117 lm/W, Die cast alum, 7x6 optics, Bronze paint, 347-480 Vac, 217W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA25LCY/UNV34 76 S891 BZ
UPC
662276686304
Product Length/Depth
17.85 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
117
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Diffused glass
Finish color
Epoxy painted RAL 7032
Wattage
217W
Dimming
Dimmable driver
Equivalent luminaire
750-1000W
Power factor
> 0.90
Amperage Rating
0.19A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ PFMA LED Floodlights ABS certification Champ PFMA LED Floodlights ABS certification Champ PFMA LED Floodlights ABS certification IF 1891 - Champ LED Floodlight PFMA IF 1891 - Champ LED Floodlight PFMA Eaton Specification Sheet - PFMA25LCY/UNV34 76 S891 BZ
Powerful lumens with efficient performance drive lower total cost of ownership. The PFMA25LCY/UNV34 delivers 25,000 lumens at 117 lm/W from a 217 W input, enabling brighter coverage with reduced energy consumption for outdoor yards and large facilities. With a dimmable driver and a 347–480 VAC rating, it supports flexible electrical planning and compatible control strategies, improving site-wide lighting management and safety. The die-cast aluminum housing and heat- and impact-resistant glass lens provide rugged durability in harsh environments, leading to fewer replacements and lower maintenance costs. The 7x6 optical distribution and gray finish optimize glare control and aesthetics while withstanding weather exposure. Its Yoke mounting and 25 mm entry size simplify installation and future repositioning, improving project ROI and deployment speed. The IP66 and NEMA 4X ratings reassure compliance for non-hazardous outdoor locations, reducing risk during audits and inspections. In-field compatibility with existing high bay and outdoor lighting systems minimizes integration challenges and accelerates deployment.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA25LCY/UNV34 76 S891 BZ

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA25LCY/UNV34 76 S891 BZ? Enquire Now

FAQs

The floodlight features a Yoke mounting method, with a 25 mm entry size, allowing straightforward orientation adjustment and compatibility with standard mounting hardware used in industrial sites.
It operates from 347–480 VAC at 50/60 Hz, draws approximately 0.19 A, and uses a dimmable driver for flexible control. With 217 W input and 25,000 lumens, it pairs efficiently with centralized or zone lighting controls.
Yes. It is IP66 protected and NEMA 4X rated, designed for ordinary/non-hazardous locations. The die-cast aluminum housing and heat- and impact-resistant glass lens withstand weather, dust, and incidental impacts.
The fixture carries NEC/CEC compliance, NEMA 4X, IP66, and Canadian certification reports, supporting safe installation in cross-border projects and formal regulatory audits.
With 25,000 lumens at 117 lm/W and a robust housing, the PFMA25LCY/UNV34 offers long-life illumination and reduced maintenance cycles, helping lower total cost of ownership in high-usage areas.
