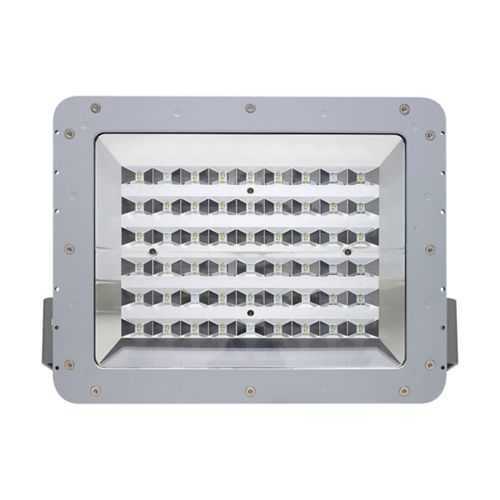

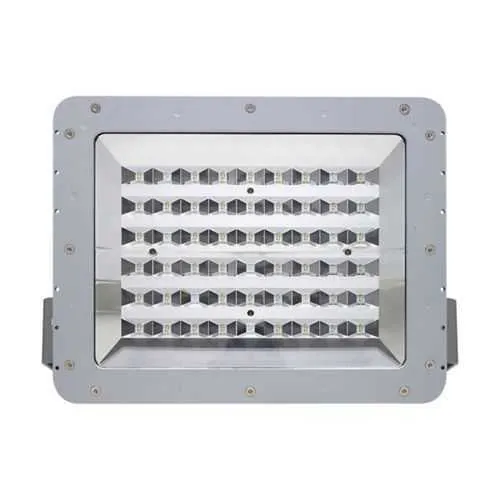

Eaton PFMA LED Floodlight PFMA25LWY/UNV1 - IP66/NEMA 4X

High-output LED performance translates to substantial energy savings and wider coverage. The PFMA25LWY/UNV1 delivers 25,000 lumens at 217 watts with an efficiency of approximately 117 lm/W, providing a 750–1000W equivalent retrofit for large outdoor areas. This means fewer fixtures, lower energy bills, and easier maintenance planning for facilities with expansive yards, docks, or exterior perimeters. The diffused glass lens and 7x6 optics deliver uniform illumination across broad surfaces, improving safety and operational visibility in demanding environments. Voltage versatility and dimmability simplify integration with control systems. It accepts 100-277 Vac and 127-300 Vdc across 50/60 Hz, enabling global deployment from a single spec. The dimmable driver supports modern lighting controls and occupancy scheduling, reducing energy use without compromising required illumination levels on loading areas, parking lots, and outdoor work zones. Rugged enclosure safeguards performance in harsh sites. IP66 ingress protection and a NEMA 4X-rated housing provide dust, water, and corrosion resistance for Ordinary/Non-Hazardous locations per NEC/CEC, while the die-cast aluminum body and diffused glass reduce maintenance needs. The weatherproof design helps ensure reliable operation in rain, wind, and dusty industrial environments. Installation and compatibility advantages make deployment faster. The fixture uses a 3/4" entry and a Yoke mounting method for versatile mounting on walls or poles, with a Gray finish that resists fading in outdoor conditions. The 217W rating and sturdy construction support long service life and easier retrofits from legacy 750–1000W fixtures. Quality resources are available to accelerate specification and procurement, including 3D design SP3D packages, brochures, catalogs, and installation sheets.
