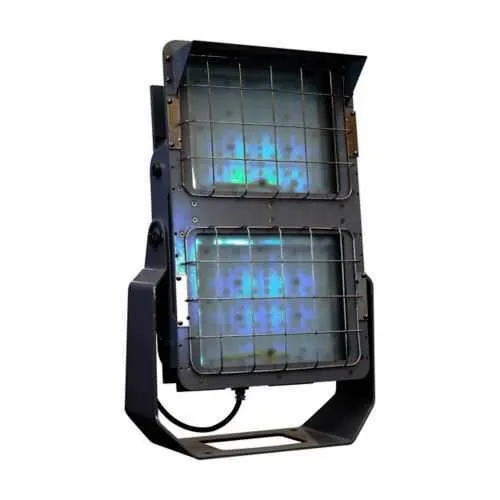

Eaton Crouse-Hinds PFMA40LCY/UNV1 76 LED Floodlight - IP66
Part Number: PFMA40LCY/UNV1 76
Quick Summary
LED floodlight delivers high-output, reliable illumination for demanding industrial sites. Operators often struggle with equipment downtime due to unreliable lighting, glare, and difficult maintenance in harsh environments. Key certifications support confidence in rugged performance, including NEC/CEC compliance, IP66 ingress protection, and NEMA 4X enclosure strength. This solution also emphasizes long life, dimmable control, and universal voltage compatibility, delivering lower operating costs and simpler procurement for facilities managers and engineers alike.
Product Information
Extended Description
PFMA40LCY/UNV1 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 3.35A, Cool white, Dimmable, 3/4" entries, 1500W+ equiv, Heat and impact resistant glass lens, 40000 lm, 119 lm/W, Die cast alum, 7x6 optic, Gray paint, 100-277 Vac, 127-300 Vdc, 340W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA40LCY/UNV1 76
UPC
662276661578
Product Length/Depth
15.35 in
Product Height
24 in
Product Width
17.28 in
Product Weight
77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
40000
Lumens per watt
119
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
340 W
Dimming
Dimmable driver
Equivalent luminaire
1500W+
Power factor
> 0.90
Amperage Rating
3.35 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series DLC approved lighting products
Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
Champ PFMA LED Floodlights ABS certification
IF 1891 - Champ LED Floodlight PFMA
IF 1891 - Champ LED Floodlight PFMA
Eaton Specification Sheet - PFMA40LCY/UNV1 76
Lumens and efficiency drive measurable outcomes in large facilities: the PFMA40LCY/UNV1 76 outputs 40,000 lumens with a high 119 lumens per watt, delivering equivalent lighting to a 1500W+ system while consuming only 340W. Business impact: reduced energy consumption, lower utility bills, and extended interval between bulb replacements in high-traffic industrial areas. Application: suitable for outdoor yards, plant exteriors, and loading docks where glare control and wide distribution are essential. Dimmable driver enables on-demand lighting control, improving process visibility and safety while optimizing energy usage during non-peak hours. Compatibility with 100-277 VAC and 127-300 VDC supports global installations and simplifies stocking for international projects. The 7x6 optical distribution and heat- and impact-resistant glass lens ensure consistent performance in dusty, wet environments, reducing maintenance headaches and downtime for maintenance teams. Mounting via a robust Yoke and 3/4" entries provides flexible, secure installation across ceiling, wall, or mast mounts, accelerating project timelines and ensuring compliance with site standards.
Get a Quick Quote for a Eaton Crouse-Hinds PFMA40LCY/UNV1 76
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFMA40LCY/UNV1 76?
Enquire Now
FAQs
Install using the built-in Yoke mounting with 3/4" entry points for flexible orientation. Its 77 lb weight requires secure mounting hardware and, if installed outdoors or in dusty environments, ensure the IP66-rated enclosure remains sealed. Plan for a location with minimal exposure to physical impact while providing easy access for maintenance and cleaning of the heat-dissipating aluminum housing.
The floodlight accepts 100-277 VAC and 127-300 VDC, supporting global electrical standards. It features a dimmable driver to enable energy savings and scene control in warehouses or outdoor areas. With a current rating of 3.35 A and a wattage of 340 W, it achieves high-efficiency illumination (40000 lm, 119 lm/W) while maintaining consistent performance across its voltage range.
Yes. The unit is rated IP66 and NEMA 4X, designed for outdoor and industrial environments. It is classified for Ordinary/Non-Hazardous Locations, making it appropriate for warehouses, exterior facilities, and process areas where dust, moisture, and temperature variations are present.
The fixture adheres to NEC/CEC standards and is built for durable, field-ready installations. It has ABS certification references, and UL/CSA documentation support its use in North American markets. This combination provides confidence in regulatory compliance, safety, and long-term reliability in industrial settings.
The 40,000-lumen output with 340 W input delivers high efficiency (119 lm/W) and a dimmable driver that reduces energy use during off-peak hours. Its die-cast aluminum housing and heat-resistant glass lens enhance durability, lowering maintenance frequency. The 7x6 optical distribution provides excellent beam control, reducing rework and glare, which translates to improved worker safety and lower replacement costs over the luminaire’s life cycle.
