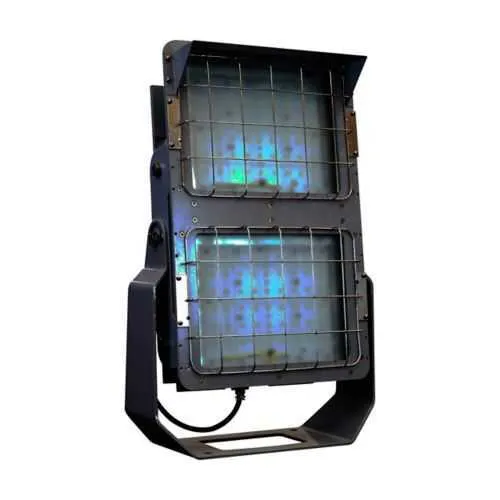

Eaton Crouse-Hinds PFMA40LCY/UNV1 LED Floodlight - IP66

Part Number: PFMA40LCY/UNV1 76 M25
PFMA40LCY/UNV1 76 M25
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA40LCY/UNV1 76 M25
Category

Quick Summary

The Eaton Crouse-Hinds PFMA40LCY/UNV1 LED floodlight is a high-output lighting solution designed for industrial facilities. Engineers often struggle with rugged environments, glare control, and maintenance cycles that disrupt production. This fixture delivers IP66 ingress protection, NEMA 4X ruggedness, and NEC/CEC compliance, ensuring safe operation in harsh zones. With a 40,000-lumen rating, 119 lm/W efficiency, a dimmable driver, and a wide voltage range (100–277 VAC, 127–300 VDC), it scales to mid- and high-bay applications while reducing energy and maintenance costs. Its die-cast aluminum housing, heat-resistant glass, and 7x6 optic dispersion deliver reliable performance from cold environments to warm industrial spaces.

Product Information

Extended Description

PFMA40LCY/UNV1 76 M25 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 3.35A, Cool white, Dimmable, 25mm entries, 1500W+ equiv, Heat and impact resistant glass lens, 40000 lm, 119 lm/W, Die cast alum, 7x6 optic, Gray paint, 100-277 Vac, 127-300 Vdc, 340W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA40LCY/UNV1 76 M25
UPC
662276661561
Product Length/Depth
15.35 in
Product Height
24 in
Product Width
17.28 in
Product Weight
77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
40000
Lumens per watt
119
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
25 mm
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
340 W
Dimming
Dimmable driver
Equivalent luminaire
1500W+
Power factor
> 0.90
Amperage Rating
3.35 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification IF 1847 - Champ PFMA40L/50L LED Floodlights IF 1847 - Champ PFMA40L/50L LED Floodlights Eaton Specification Sheet - PFMA40LCY/UNV1 76 M25
The PFMA40LCY/UNV1 LED floodlight delivers exceptional lumen density, enabling you to reduce fixture counts while maintaining uniform coverage across large industrial spaces. This translates to lower capital expenditure and operating costs, especially in warehouses and outdoor yards. The dimmable driver supports integration with control systems, enabling demand-based lighting strategies that further cut energy bills and extend lamp life. A broad input range of 100-277 VAC and 127-300 VDC simplifies global deployments, reducing stocking complexity and installation time for multi-site facilities. Built to endure harsh environments, IP66 and NEMA 4X ratings protect against dust, water ingress, and corrosion, resulting in fewer maintenance events and less downtime. The die-cast aluminum body, gray finish, and heat- and impact-resistant glass lens resist weathering and impact, ensuring consistent performance. The 7x6 optical distribution delivers even illumination with controlled glare, while the yoke mounting supports precise positioning for high-bay and exterior lighting scenarios. For projects requiring fast ROI, PFMA40LCY/UNV1 offers reliable light output, longer service life, and compatibility with common industrial controls, reducing lifecycle costs and simplifying retrofits.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA40LCY/UNV1 76 M25

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA40LCY/UNV1 76 M25? Enquire Now

FAQs

PFMA40LCY/UNV1 uses a versatile yoke mounting method that allows angular adjustment to achieve uniform coverage in both indoor high-bay spaces and outdoor areas. The 25 mm entry size supports straightforward conduit and wiring connections, reducing installation time and compatibility issues with existing fixtures.
The fixture accepts a wide voltage range of 100–277 VAC and 127–300 VDC, with a 50/60 Hz frequency rating, enabling global installations. It features a dimmable driver, allowing integration with controls for occupancy, daylight, or energy-management strategies while preserving required illumination levels when needed.
Yes. PFMA40LCY/UNV1 is rated IP66 and NEMA 4X, providing excellent protection against dust ingress and water jets and offering rugged performance in ordinary/non-hazardous locations. This makes it well-suited for harsh production floors, outdoor yards, and wash-down zones where reliability matters most.
With 40,000 lumens and 119 lm/W efficiency, you can illuminate large areas with fewer fixtures, cutting energy costs. The long LED life and robust housing reduce maintenance cycles and replacement needs, delivering lower total cost of ownership for industrial facilities over time.
Official resources include UL certification pages, installation sheets, and the Eaton specification sheet. You can also access product brochures and the Champ PFMA catalog pages through Eaton’s Lighting & Controls literature, ensuring compliance with NEC/CEC standards and Canadian certifications as needed.
