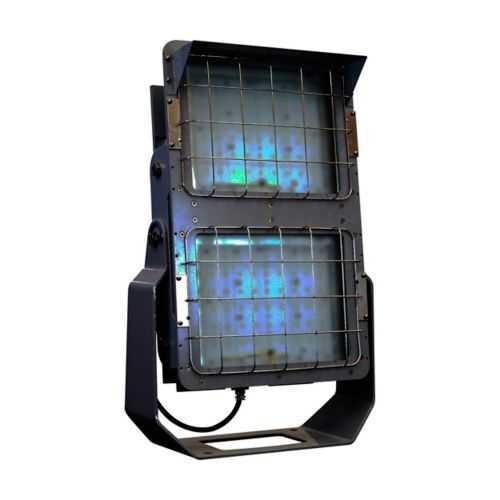

Eaton Crouse-Hinds PFMA50LCY/UNV1 76 Floodlight - IP66

Part Number: PFMA50LCY/UNV1 76
PFMA50LCY/UNV1 76
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA50LCY/UNV1 76
Category

Quick Summary

PFMA50LCY/UNV1 76 LED floodlight delivers high-output area lighting for outdoor industrial sites. For engineers facing uptime pressure, glare, maintenance cycles, and voltage variability can erode productivity. It carries IP66 ingress protection, NEMA 4X rugged housing, and NEC/CEC compliance for ordinary/non-hazardous locations, ensuring dependable performance in challenging environments. The fixture pushes 50,000 lumens at up to 126 lm/W with a 7x6 optical distribution, delivering uniform coverage for yards, loading docks, and perimeters. With a dimmable driver and wide voltage range (100-277 VAC, 127-300 VDC), installation is flexible across global sites, and the die-cast aluminum body minimizes maintenance while maximizing long-term lifecycle cost savings.

Product Information

Extended Description

PFMA50LCY/UNV1 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 4.14A, Cool white, Dimmable, 3/4" entries, 1500W+ equiv, Heat and impact resistant glass lens, 50000 lm, 126 lm/W, Die cast alum, 7x6 optic, Gray paint, 100-277 Vac, 127-300 Vdc, 400W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA50LCY/UNV1 76
UPC
662276661530
Product Length/Depth
15.35 in
Product Height
24 in
Product Width
17.28 in
Product Weight
77 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
50000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
2 x 8.7W
Dimming
Dimmable driver
Equivalent luminaire
1500W+
Power factor
> 0.90
Amperage Rating
4.14 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series industrial LED lighting solutions Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures UL certification IF 1891 - Champ LED Floodlight PFMA IF 1891 - Champ LED Floodlight PFMA Eaton Specification Sheet - PFMA50LCY/UNV1 76
High lumen output and efficiency drive fewer fixtures and lower energy use, delivering consistent, wide-area coverage for outdoor industrial spaces. The 50,000 lumen output at 126 lm/W reduces total installed lighting and accelerates ROI in docks, yards, and facility perimeters. A dimmable driver and broad voltage range enable seamless integration with control systems and site-wide lighting strategies, cutting energy costs while maintaining required illuminance. Rugged die-cast aluminum construction with heat- and impact-resistant glass, combined with IP66 protection and a NEMA 4X rating, minimizes maintenance needs and withstands harsh outdoor conditions, reducing downtime and replacement cycles. The 7x6 optical distribution provides uniform light spill and minimizes glare, supporting safety standards in plant walkways and loading zones. 3/4" entry fittings and a Yoke mounting offer flexible, code-compliant installation across multiple configurations, improving job-site efficiency. Overall, this luminaire aligns with industrial LED lighting solutions to meet regulatory requirements while delivering long-term total cost of ownership benefits.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA50LCY/UNV1 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA50LCY/UNV1 76? Enquire Now

FAQs

The fixture supports Yoke mounting and 3/4 inch conduit entries for flexible installation. It operates on 100-277 VAC or 127-300 VDC with 50/60 Hz, allowing easy integration with regional electrical standards and control systems.
It delivers 50,000 lumens with an efficacy of approximately 126 lm/W, providing high-visibility coverage for large outdoor areas while keeping energy consumption low.
Yes. It is rated IP66 for ingress protection and NEMA 4X for rugged outdoor durability, with an Ordinary/Non-Hazardous location rating suitable for facility perimeters and yards.
The luminaire complies with NEC/CEC standards, has IP66 ingress protection, and a NEMA 4X enclosure, with UL certifications documented in the provided installation and certification literature, ensuring code compliance and reliable performance.
Dimmable operation, high LED efficiency, and a robust die-cast housing reduce energy use and maintenance downtime, while the long service life and reduced fixture counts lower total cost of ownership over the facility’s lifecycle.
