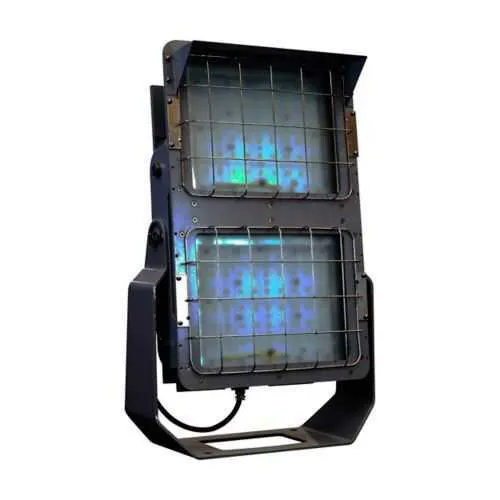

Eaton Crouse-Hinds PFMA50LCY/UNV34 76 BZ Floodlight - IP66

Part Number: PFMA50LCY/UNV34 76 BZ
PFMA50LCY/UNV34 76 BZ
Manufacturer
Eaton Crouse-Hinds
Part number
PFMA50LCY/UNV34 76 BZ
Category

Quick Summary

PFMA50LCY/UNV34 76 BZ LED floodlight provides high-output illumination for demanding industrial sites. Manufacturers struggle with reliable performance in harsh environments and costly maintenance downtime. This luminaire delivers rugged, long-life operation with IP66 and NEMA 4X protection, NEC/CEC compliance, and suitability for ordinary/non-hazardous locations. The bronze epoxy finish and die-cast aluminum housing withstand corrosion, while a heat- and impact-resistant glass lens supports 50,000 lumens at 126 lm/W with a dimmable driver. Designed for 347–480 VAC and 50/60 Hz, it offers flexible installation via a 3/4" entry and yoke mounting, making it an ideal choice for high-bay and outdoor floodlighting applications. In short, it combines reliability with energy efficiency for industrial lighting programs.

Product Information

Extended Description

PFMA50LCY/UNV34 76 BZ Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight, 1.54A, Cool white, Dimmable driver, 3/4", 1500W+ equiv, Heat and impact resistant glass lens, 50000 lm, 126 lm/W, Die cast alum, 7x6 optics, Bronze paint, 347-480 Vac, 400W
Product Name
Eaton Crouse-Hinds series Champ Pro PFMA LED floodlight
Catalog Number
PFMA50LCY/UNV34 76 BZ
UPC
662276661486
Product Length/Depth
15.35 in
Product Height
24 in
Product Width
17.28 in
Product Weight
32.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
50000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Epoxy painted RAL 7032
Wattage
2 x 8.7W
Dimming
Dimmable driver
Equivalent luminaire
1500W+
Power factor
> 0.90
Amperage Rating
1.54 A
Material
Die cast aluminum
SP3D Design Package - Champ Pro PFMA LED Industrial Floodlights Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ PFMA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification Champ Pro PFM LED, Pauluhn Apex Industrial LED, Industrial High Bay LED and Weatherproof LED Light Fixtures Canadian certification IF 1891 - Champ LED Floodlight PFMA IF 1891 - Champ LED Floodlight PFMA Eaton Specification Sheet - PFMA50LCY/UNV34 76 BZ
PFMA50LCY/UNV34 76 BZ LED floodlight packs 50,000 lumens at 126 lm/W, delivering broad area coverage and reduced energy costs through high efficiency. Business Impact: lowers total cost of ownership by reducing watts per lumen while maintaining brightness; Application: large outdoor yards and expansive indoor facilities where uniform illumination is critical. The dimmable driver and wide voltage range (347–480 VAC) offer installation flexibility and better control integration. Business Impact: supports utility and facility optimization programs; Application: integration with dimming systems and energy-management schemes. Die-cast aluminum housing with a bronze epoxy finish provides rugged durability and corrosion resistance in demanding environments. Business Impact: minimizes maintenance and replacement cycles; Application: outdoor process plants, refineries, and mining sites. IP66 and NEMA 4X protection ensure robust ingress protection against dust and water. Business Impact: improves uptime in harsh weather conditions; Application: exposed outdoor locations and wet industrial settings. The 7x6 optical distribution and heat- and impact-resistant glass lens deliver precise light control for safe, compliant illumination. Business Impact: reduces nuisance lighting and enhances safety compliance; Application: high-velocity production lines and outdoor loading areas. The 3/4" entry and yoke mounting enable easy, versatile installation on poles, brackets, or ceilings. Business Impact: simplifies retrofits and new-build projects; Application: retrofit of legacy lighting or new build floodlighting systems.

Get a Quick Quote for a Eaton Crouse-Hinds PFMA50LCY/UNV34 76 BZ

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PFMA50LCY/UNV34 76 BZ? Enquire Now

FAQs

This floodlight uses a 3/4" entry and a versatile Yoke mounting, enabling straightforward integration on poles, brackets, or ceilings. It supports a broad voltage range of 347–480 VAC and a dimmable driver, which simplifies control system integration and enables staged lighting during commissioning or outages. With a 15.35 in length, 24 in height, and 17.28 in width, it fits most standard industrial mounting footprints.
Key specs include 50,000 lumens, 126 lm/W efficiency, cool white color, 347–480 VAC input at 50/60 Hz, and a dimmable driver. The unit delivers 2 x 8.7 W light modules, total system wattage around 400 W, and an equivalent of 1500 W+ luminaire performance. It uses a 7x6 optical distribution for focused coverage and a heat- and impact-resistant glass lens.
Yes. The PFMA50LCY/UNV34 76 BZ is IP66 weather-rated and NEMA 4X protected, making it suitable for outdoor and demanding industrial locations. It carries an Ordinary/Non-Hazardous area classification and NEC/CEC standards alignment, ensuring reliable operation in non-hazardous industrial environments and compliance with relevant electrical codes.
The fixture is supported by multiple certifications and literature, including NEC/CEC compliance and NEMA/IP ratings (IP66, 4X). Access to Canadian certifications and UL-listed documentation is provided via the downloadable marketing and certification packages, with installation instructions and specification sheets available to verify compliance during audits and regulatory reviews.
With 50,000 lumens at 126 lm/W and a long-lifecycle LED design, the PFMA50LCY/UNV34 76 BZ reduces energy use and maintenance cycles compared with legacy luminaires. The dimmable driver enables tuning to actual site needs, decreasing energy waste, while the robust die-cast housing and glass lens lower replacement costs and downtime in harsh environments.
