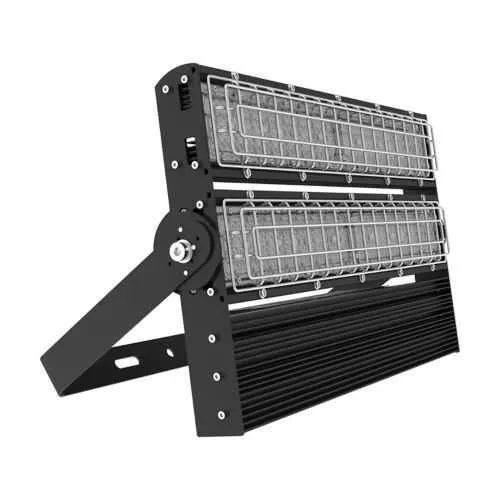

Eaton PFME30LCY-UNV1-66 LED Floodlight - NEC/CEC
Part Number: PFME30LCY-UNV1-66
Quick Summary
PFME LED floodlight is a high-output fixture designed for industrial outdoor lighting and general area illumination. It delivers 30,000 lumens with 127 lm/W efficiency and supports a wide voltage range for universal field deployment. The main challenge for engineers is replacing HID fixtures without downtime or compromising safety; this product provides a durable, low-maintenance alternative. Compliant with NEC/CEC standards and suitable for Ordinary/Non-Hazardous Locations, it offers reliable performance for plant yards, loading docks, and exterior walkways. With a dimmable driver and straightforward mounting, it enables energy savings and improved lighting quality across shifts, driving down total cost of ownership while enhancing worker visibility.
Product Information
Extended Description
PFME30LCY-UNV1-66 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PFME LED floodlight, Cool white, Dimmable driver, 750W-1000W HID equivalent, 50/60 Hz, Polycarbonate lens, 30000 lumens,127 lm/W, Aluminum,Yoke mount,Standard 120° angle, >0.90 PF,120-277 Vac,127-400 Vdc,242W
Product Name
Eaton Crouse-Hinds series PFME LED floodlight
Catalog Number
PFME30LCY-UNV1-66
UPC
662276966826
Product Length/Depth
20.16 in
Product Height
12.5 in
Product Width
4.17 in
Product Weight
15.057572 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
LED
Lumens
30000
Lumens per watt
127
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
120-277 Vac, 127-400 Vdc
Frequency rating
50/60 Hz
Optical distribution
Standard 120° angle
Dimming
Dimmable driver
Wattage
242W
Equivalent luminaire
750W-1000W HID
Power factor
> 0.90
Material
Aluminum
Lens material
Polycarbonate
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds PFME LED Floodlights catalog page
IF 1926 - PFME Industrial LED Floodlight
Eaton Specification Sheet - PFME30LCY-UNV1-66
Feature: High lumen output and efficiency. Business Impact: 30,000 lumens at 127 lm/W reduces energy use versus traditional HID lighting, lowering operating costs and cooling load. Application: outdoor area lighting in yards and ramps where uniform illumination is critical. Feature: Universal voltage and dimmable driver. Business Impact: 120-277 Vac and 127-400 Vdc operation simplifies procurement and wiring; dimming enables integration with occupancy sensors and BAS for further energy savings. Application: retrofit projects and new builds across sites with diverse power infrastructure. Feature: Durable construction. Business Impact: Aluminum housing with a polycarbonate lens delivers corrosion and impact resistance, extending service life in harsh outdoor environments. Application: exterior lighting around warehouses and production facilities. Feature: Optical design and mounting. Business Impact: Standard 120° distribution and yoke mount provide flexible aiming and fast installation, reducing commissioning time. Application: general area lighting with reliable coverage. Feature: Compliance and certifications. Business Impact: NEC/CEC compliance and Ordinary/Non-Hazardous Locations rating ensure regulatory alignment and safe operation; simplifies procurement documentation. Application: industrial facilities seeking compliant lighting solutions.
Get a Quick Quote for a Eaton Crouse-Hinds PFME30LCY-UNV1-66
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFME30LCY-UNV1-66?
Enquire Now
FAQs
Install using the provided yoke mounting hardware, ensuring level aiming for even coverage. Connect to a suitable 120-277 Vac or 127-400 Vdc supply, following NEC wiring practices. Use a dimmable driver if reducing energy consumption with sensors or building automation. Verify mounting points are secure and weatherproof to maintain the fixture’s IP integrity and performance.
The fixture provides 30,000 lumens at 127 lm/W efficacy, with a 242W power draw. It operates at 50/60 Hz and supports 120-277 Vac or 127-400 Vdc. The light uses a dimmable driver, with a cool white color temperature, and a standard 120° optical distribution for broad area coverage.
Yes. It is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it appropriate for exterior industrial areas such as yards, loading docks, and walkways, where reliable, high-quality lighting is required without special hazard protections.
The PFME30LCY-UNV1-66 is designed to align with NEC/CEC standards and is certified for Ordinary/Non-Hazardous Locations. These certifications support regulatory compliance in general industrial facilities and simplify procurement documentation for facility managers.
With 30,000 lumens and a long service life, the PFME30LCY-UNV1-66 reduces replacement frequency and maintenance costs. Its energy efficiency (127 lm/W) and HID-equivalent performance can yield significant energy savings, improving ROI especially in continuous-duty outdoor applications such as yards and exterior corridors.
