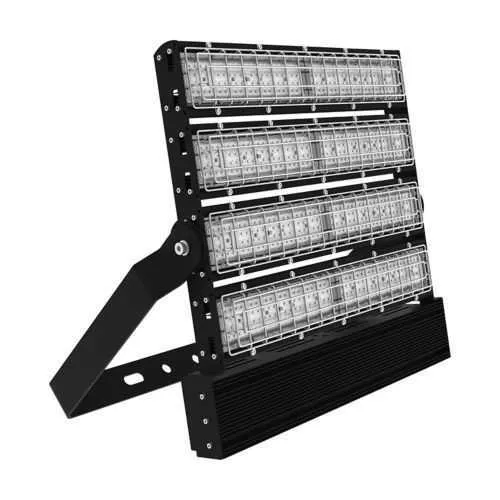

Eaton Crouse-Hinds PFME60LCY-UNV1-66 LED Floodlight -PF>0.90
Part Number: PFME60LCY-UNV1-66
Quick Summary
Eaton Crouse-Hinds PFME60LCY-UNV1-66 LED floodlight is a high-output exterior lighting solution designed for industrial facilities and outdoor sites. Engineers often struggle with HID replacements that fail in harsh environments, produce glare, and escalate maintenance costs. This luminaire meets NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, featuring a rugged aluminum housing and a polycarbonate lens. Its dimmable driver and wide voltage range simplify cross-region deployments, while delivering 60,000 lumens with excellent efficiency. By combining reliable performance with predictable illumination, it supports safer operations, reduced energy spend, and simpler procurement for multi-site industrial programs.
Product Information
Extended Description
PFME60LCY-UNV1-66 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PFME LED floodlight, Cool white, Dimmable driver, 1500W+ HID equivalent, 50/60 Hz, Polycarbonate lens, 60000 lumens, 128 lm/W, Aluminum, Yoke mount, Standard 120° angle, > 0.90 PF, 120-277 Vac, 127-400 Vdc, 485W
Product Name
Eaton Crouse-Hinds series PFME LED floodlight
Catalog Number
PFME60LCY-UNV1-66
UPC
662276966864
Product Length/Depth
20.16 in
Product Height
21.3 in
Product Width
4.17 in
Product Weight
33.289802 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
LED
Lumens
60000
Lumens per watt
128
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
120-277 Vac, 127-400 Vdc
Frequency rating
50/60 Hz
Optical distribution
Standard 120° angle
Dimming
Dimmable driver
Wattage
485W
Equivalent luminaire
1500W+ HID
Power factor
> 0.90
Material
Aluminum
Lens material
Polycarbonate
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds PFME LED Floodlights catalog page
IF 1926 - PFME Industrial LED Floodlight
Eaton Specification Sheet - PFME60LCY-UNV1-66
Feature: High lumen output of 60,000 lumens with a 128 lm/W efficacy and a 485 W draw. Business Impact: Fewer fixtures required to achieve the same light levels, lowering installation time and maintenance costs in large outdoor areas. Application: Perimeters, yards, and plant exteriors where bright, uniform illumination is critical. Feature: Dimmable driver and a voltage range of 120-277 VAC and 127-400 VDC. Business Impact: Flexible integration across regional electrical systems, enabling centralized control and energy management. Application: Global manufacturing campuses with diverse power standards. Feature: Standard 120° optical distribution. Business Impact: Broad, even coverage reduces dark spots and glare, improving safety and workflow. Application: Wide loading docks and vehicle circulation paths. Feature: Durable aluminum housing with a polycarbonate lens. Business Impact: Robust outdoor resistance and long service life, lowering replacement cycles. Application: Harsh outdoor environments and damp locations. Feature: Yoke mounting and easy alignment. Business Impact: Quick installation and precise aiming without specialized tools. Application: Facade lighting, outdoor work zones, and outdoor storage areas. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location classification. Business Impact: Simplified safety approvals and reliable operation in standard industrial settings. Application: Industrial facilities requiring compliant exterior lighting. Feature: HID-replacement value with 1500W+ HID equivalence. Business Impact: Reduced energy consumption and maintenance compared to legacy HID systems. Application: Upgrading existing HID installations to LED with minimal disruption. Keywords included: LED floodlight, 60,000 lumens, dimmable, 120-277 VAC, 127-400 VDC, 485W, aluminum housing, polycarbonate lens, yoke mount, ordinary locations, NEC/CEC, 128 lm/W.
Get a Quick Quote for a Eaton Crouse-Hinds PFME60LCY-UNV1-66
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFME60LCY-UNV1-66?
Enquire Now
FAQs
The PFME60LCY-UNV1-66 uses a convenient yoke mount and supports a wide input range of 120-277 VAC or 127-400 VDC, at 50/60 Hz. It’s designed to replace HID luminaires with a similar footprint and mounting pattern, simplifying retrofit projects. Ensure proper wiring connections per the installation sheets and maintain adherence to NEC/CEC guidelines for Ordinary/Non-Hazardous Locations.
Expect up to 60,000 lumens with an efficiency of 128 lm/W, producing bright, uniform illumination over large exterior areas. The 485 W power draw provides a high-output HID-equivalent replacement, while the 120° beam distribution reduces the need for multiple fixtures. The dimmable driver enables fine-tuning of light levels to match task needs and energy targets.
Yes. The fixture is certified for Ordinary/Non-Hazardous Locations and aligned with NEC/CEC standards, supporting safe operation in typical industrial environments. Its robustness and dimmable driver also help meet energy codes and lighting retrofit requirements, while its aluminum housing and polycarbonate lens provide enduring outdoor performance.
Upgrading to the PFME60LCY-UNV1-66 yields energy savings from high-efficiency LEDs and realistic payback through reduced wattage vs. HID equivalents (1500W+). The dimmable driver and long LED life lower maintenance cycles and spare-parts usage. Multi-site deployments benefit from consistent performance, lower failure rates, and easier global procurement.
Plan for a yoke-mount installation with proper clearances to avoid heat buildup and ensure unobstructed beam distribution. Confirm supply voltage matches the 120-277 VAC / 127-400 VDC range and that controls are configured for dimming if required. Refer to the instruction sheets and the Eaton PFME datasheet for wiring diagrams, mounting torque, and safety precautions.
