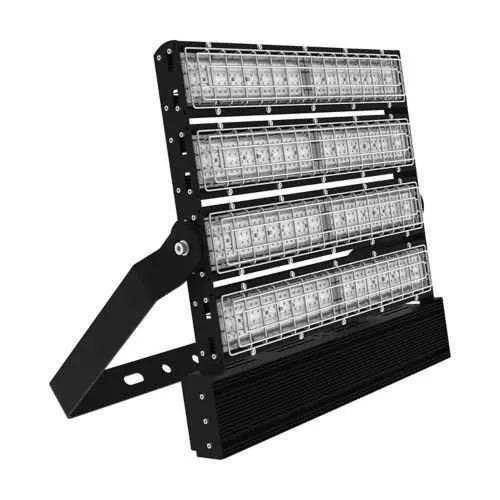

Eaton PFME60LCY-UNV34-66 LED Floodlight - Dimmable Driver
Part Number: PFME60LCY-UNV34-66
Manufacturer
Eaton Crouse-Hinds
Part number
PFME60LCY-UNV34-66
Category
Quick Summary
Eaton PFME60LCY-UNV34-66 LED floodlight delivers high-output illumination for industrial facilities. Engineered for reliability, this fixture helps you reduce energy waste and maintenance costs in outdoor or large-area settings. It complies with NEC/CEC standards for Ordinary/Non-Hazardous Locations and supports 50/60 Hz operation with a dimmable driver, making it suitable for a range of control schemes. Designed with an aluminum housing and polycarbonate lens, it offers robust durability while delivering broad coverage. This solution aligns with modern facility-societal goals for safer perimeters and lower total cost of ownership, while integrating smoothly with existing high-bay or outdoor lighting plans and replacement programs.
Product Information
Extended Description
PFME60LCY-UNV34-66 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PFME LED floodlight, Cool white, Dimmable driver, 1500W+ HID equivalent, 50/60 Hz, Polycarbonate lens, 60000 lumens, 128 lm/W, Aluminum, Yoke mount, Standard 120° angle, > 0.90 PF, 277-480 Vac, 485W
Product Name
Eaton Crouse-Hinds series PFME LED floodlight
Catalog Number
PFME60LCY-UNV34-66
UPC
662276966871
Product Length/Depth
20.16 in
Product Height
21.3 in
Product Width
4.17 in
Product Weight
33.289802 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
LED
Lumens
60000
Lumens per watt
128
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
277-480 Vac
Frequency rating
50/60 Hz
Optical distribution
Standard 120° angle
Dimming
Dimmable driver
Wattage
485W
Equivalent luminaire
1500W+ HID
Power factor
> 0.90
Material
Aluminum
Lens material
Polycarbonate
Crouse-Hinds PFME LED Floodlights brochure
Crouse-Hinds PFME LED Floodlights brochure
Crouse-Hinds PFME LED Floodlights catalog page
IF 1926 - PFME Industrial LED Floodlight
Eaton Specification Sheet - PFME60LCY-UNV34-66
Feature: High-lumen LED output with broad 120° optical distribution → Business impact: Delivers extensive area coverage with fewer fixtures, reducing capital and ongoing energy costs in large outdoor spaces or warehouses. Application: Perimeter lighting, loading docks, and yard illumination. Feature: Dimmable driver and 485W consumption for 60000 lumens → Business impact: Enables precise lighting control, energy savings, and compliance with lighting layouts that require reduced power during low-occupancy periods. Application: Facility maintenance areas and timed lighting schedules. Feature: Wide voltage range 277-480 Vac and 50/60 Hz compatibility → Business impact: Simplifies procurement and stocking, enabling a single platform for multi-site deployments and retrofits. Application: Facilities with mixed electrical infrastructures. Feature: Rugged aluminum housing with polycarbonate lens → Business impact: Improves corrosion resistance and impact durability, lowering maintenance costs in harsh environments. Application: Outdoor, wet-dusty, and industrial sites. Feature: Yoke mounting with standard 120° distribution → Business impact: Easy installation and alignment with existing mounting hardware, reducing installation time and labor costs. Application: New builds and retrofit projects in factories and outdoor campuses.
Get a Quick Quote for a Eaton Crouse-Hinds PFME60LCY-UNV34-66
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFME60LCY-UNV34-66?
Enquire Now
FAQs
Installation is simplified by the yoke mounting method, which allows flexible aiming for the standard 120° optic. The aluminum housing and rugged, polycarbonate lens support outdoor and industrial environments. Ensure power is supplied within the 277-480 Vac range and that mounting height and spacing follow site lighting plans to achieve the desired uniformity.
Key specs include 485W power consumption, 60000 lumens output, 128 lm/W efficacy, voltage rating of 277-480 Vac, frequency 50/60 Hz, and a dimmable driver. The fixture maintains a power factor greater than 0.90, supporting efficient operation across its operating range.
Yes. The fixture is specified for Ordinary/Non-Hazardous Locations with NEC/CEC standards compliance, making it appropriate for general industrial facilities, warehouses, and outdoor yards that do not require explosion-proof or hazardous-area ratings.
Optical distribution is standard 120°, with a polycarbonate lens and an aluminum housing for robust outdoor performance. The unit weighs approximately 33.29 lb, with dimensions around 20.16 in (L) x 4.17 in (W) x 21.3 in (H). These attributes support wide-area coverage and durable operation in demanding environments.
Upgrading yields energy efficiency through high lumen output with 128 lm/W efficacy, reduced maintenance due to long LED life and durable construction, and flexible control via a dimmable driver. The wide voltage compatibility simplifies multi-site rollouts, lowers stocking complexity, and improves lighting reliability for perimeters, docks, and large outdoor workspaces.
