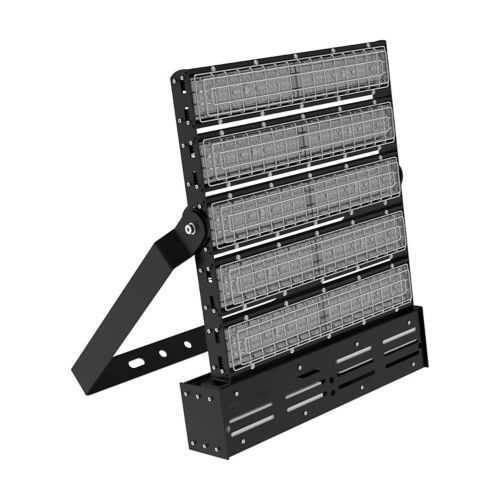

Eaton Crouse-Hinds PFME75LCY-UNV1-66 Floodlight - NEC/CEC
Part Number: PFME75LCY-UNV1-66
Quick Summary
PFME75LCY-UNV1-66 Floodlight delivers high-output area illumination for industrial facilities. Engineers struggle with HID replacements, maintenance downtime, and energy costs in demanding factory environments. It meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with a dimmable driver and wide voltage range to support modern control schemes. Designed to integrate with existing lighting strategies, it delivers reliable performance and a lower total cost of ownership for LED floodlight deployments in factories.
Product Information
Extended Description
PFME75LCY-UNV1-66 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PFME LED floodlight, Cool white, Dimmable driver, 1500W+ HID equivalent, 50/60 Hz, Polycarbonate lens, 75000 lumens, 131 lm/W, Aluminum, Yoke mount, Standard 120° angle, > 0.90 PF, 120-277 Vac, 127-400 Vdc, 604W
Product Name
Eaton Crouse-Hinds series PFME LED floodlight
Catalog Number
PFME75LCY-UNV1-66
UPC
662276966895
Product Length/Depth
20.16 in
Product Height
26.49 in
Product Width
4.17 in
Product Weight
41.182351 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
LED
Lumens
75000
Lumens per watt
131
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
120-277 Vac, 127-400 Vdc
Frequency rating
50/60 Hz
Optical distribution
Standard 120° angle
Dimming
Dimmable driver
Wattage
604W
Equivalent luminaire
1500W+ HID
Power factor
> 0.90
Material
Aluminum
Lens material
Polycarbonate
Crouse-Hinds PFME LED Floodlights brochure
Crouse-Hinds PFME LED Floodlights brochure
Crouse-Hinds PFME LED Floodlights catalog page
IF 1926 - PFME Industrial LED Floodlight
Eaton Specification Sheet - PFME75LCY-UNV1-66
High-lumen LED solution: The PFME75LCY-UNV1-66 delivers 75,000 lumens at 131 lm/W with a 604W input, providing true HID replacement capability. Business impact: reduces the number of fixtures required and lowers maintenance cycles, translating to significant lifecycle cost savings in large facilities and outdoor lots. Application: ideal for wide-area illumination in industrial yards and plant floors, delivering uniform light with minimal operator intervention. Dimmable driver and controls compatibility: The unit features a dimmable driver compatible with common lighting control schemes, enabling precise in-field brightness and energy optimization. Business impact: supports occupancy sensors and scheduled dimming to cut energy use without sacrificing safety. Application: compatible with 50/60 Hz systems and standard control networks across industrial sites, delivering consistent performance in mixed-voltage environments.Universal voltage and robust performance: Voltage rating of 120-277 Vac and 127-400 Vdc covers global and regional electrical standards, supplemented by 50/60 Hz operation. Business impact: simplifies procurement, reduces inventory, and facilitates retrofits without re-wiring. Application: ideal for campuses, warehouses, and outdoor facilities where supply variability exists.Durable construction and optics: Aluminum housing with a polycarbonate lens supports harsh environments, while standard 120° optical distribution ensures broad coverage. Business impact: improves reliability and reduces replacement costs in demanding locations. Application: suitable for Ordinary/Non-Hazardous Locations and rugged outdoor applications where impact resistance and weathering matter.Installation and compliance advantages: Yoke mounting and NEC/CEC compliance streamline retrofits and new builds. Business impact: accelerates project timelines and minimizes compliance risk. Application: fits common mounting patterns on existing structures and is ready for integration with building management systems.
Get a Quick Quote for a Eaton Crouse-Hinds PFME75LCY-UNV1-66
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFME75LCY-UNV1-66?
Enquire Now
FAQs
The PFME75LCY-UNV1-66 uses a standard yoke mounting and standard mounting patterns common to industrial floodlights. It supports a wide voltage range (120-277 VAC, 127-400 VDC) and a standard 120° optical distribution. For retrofit projects, verify mounting clearances, bracket compatibility, and ceiling or mast attachment points to ensure secure installation and optimal light distribution.
This floodlight complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. Such classifications help ensure regulatory alignment for general industrial facilities and non-hazardous environments, while maintaining favorable energy and lighting performance. No hazardous-area rating is claimed for this model.
Yes. It provides an HID replacement equivalent of 1500W+ for long-throw illumination with higher efficiency (75000 lumens at 131 lm/W). The dimmable driver supports integration with existing controls, sensors, and scheduling, enabling zone lighting, reduced peak demand, and improved visibility without changing control architecture.
The fixture delivers high lumen output at 604W with a PF > 0.90, reducing fixture counts and energy waste. Long LED life minimizes maintenance and lamp replacement costs, while dimmable operation lowers energy use during off-peak or non-urgent periods. Overall, this translates to lower total cost of ownership in warehouses, yards, and plant interiors.
The dimmable driver and universal voltage range support diverse electrical systems and control schemes, simplifying retrofits across sites with mixed supply voltages. Whether upgrading a single area or an entire facility, the ability to dim and adapt to 120-277 VAC or 127-400 VDC reduces installation risk and speeds up project timelines.
