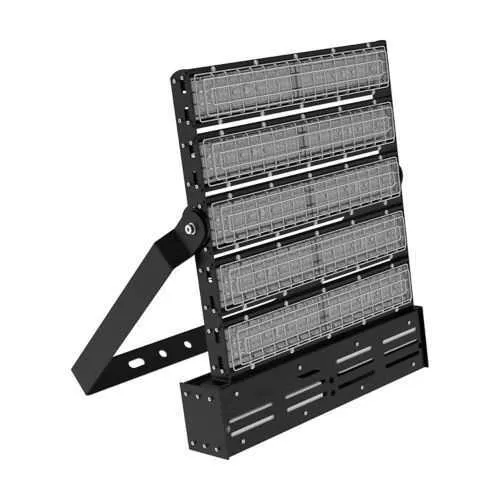

Eaton PFME75LCY-UNV34-66 LED Floodlight - Dimmable
Part Number: PFME75LCY-UNV34-66
Manufacturer
Eaton Crouse-Hinds
Part number
PFME75LCY-UNV34-66
Category
Quick Summary
PFME75LCY-UNV34-66 LED floodlight from Eaton Crouse-Hinds delivers high-output illumination for industrial facilities. This fixture addresses the common challenge of HID replacement cycles, providing reliable, energy-efficient lighting with reduced maintenance. It is designed for Ordinary/Non-Hazardous locations under NEC/CEC standards, featuring an aluminum housing and a polycarbonate lens for durable performance. By combining a dimmable driver with high lumen output, broad area coverage, and easy yoke mounting, it supports project goals for safety, efficiency, and reduced operating costs in manufacturing, warehousing, and outdoor spaces.
Product Information
Extended Description
PFME75LCY-UNV34-66 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PFME LED floodlight, Cool white, Dimmable driver, 1500W+ HID equivalent, 50/60 Hz, Polycarbonate lens, 75000 lumens, 131 lm/W, Aluminum, Yoke mount, Standard 120° angle, > 0.90 PF, 277-480 Vac, 604W
Product Name
Eaton Crouse-Hinds series PFME LED floodlight
Catalog Number
PFME75LCY-UNV34-66
UPC
662276966901
Product Length/Depth
20.16 in
Product Height
26.49 in
Product Width
4.17 in
Product Weight
42.284662 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp type
LED
Lumens
75000
Lumens per watt
131
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
277-480 Vac
Frequency rating
50/60 Hz
Optical distribution
Standard 120° angle
Dimming
Dimmable driver
Wattage
604W
Equivalent luminaire
1500W+ HID
Power factor
> 0.90
Material
Aluminum
Lens material
Polycarbonate
Crouse-Hinds PFME LED Floodlights brochure
Crouse-Hinds PFME LED Floodlights brochure
Crouse-Hinds PFME LED Floodlights catalog page
IF 1926 - PFME Industrial LED Floodlight
Eaton Specification Sheet - PFME75LCY-UNV34-66
High-output LED with 75,000 lumens and 131 lm/W delivers large-area illumination while consuming 604W, enabling fewer fixtures and lower lifecycle costs in warehouses and outdoor facilities. Business impact: reduced capex and maintenance; Application: industrial yards, loading docks, and facility perimeters. Dimmable driver supports compatible lighting controls, enabling energy savings and smarter occupancy-based lighting strategies. Business impact: better energy management; Application: facilities with control systems or scheduled dimming. Standard 120° optical distribution ensures uniform coverage, minimizing dark spots and the need for over-illumination. Business impact: consistent visibility for worker safety; Application: production floors and outdoor work zones. Aluminum housing and polycarbonate lens provide robust durability against vibration and weather in harsh environments. Business impact: longer service intervals and lower replacement costs; Application: outdoor lighting and process-area illumination with yoke mounting for flexible installs. NEC/CEC compliance and Ordinary/Non-Hazardous locations rating give engineering teams confidence in code alignment. Business impact: regulatory readiness and smoother approvals; Application: plant facilities and distribution areas. The compact footprint and compatible mounting reduce installation time and optimize retrofit projects, supporting faster deployment with existing electrical infrastructure. Business impact: project acceleration and lower commissioning risk; Application: retrofits from HID to LED with minimal downtime.
Get a Quick Quote for a Eaton Crouse-Hinds PFME75LCY-UNV34-66
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PFME75LCY-UNV34-66?
Enquire Now
FAQs
The PFME75LCY-UNV34-66 operates on a 277–480 VAC supply and uses a dimmable driver compatible with common control schemes. Its yoke mount and 50/60 Hz operation simplify retrofits and new installs in industrial spaces, reducing wiring complexity and allowing straightforward integration with existing electrical infrastructure.
Key specs include 75,000 lumens with an efficiency of 131 lm/W, a 604W input, cool white color temperature, and a standard 120° optical distribution. It supports dimming and operates from 277 to 480 VAC at 50/60 Hz, making it suitable for a wide range of industrial environments.
This fixture is specified for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards. It is not rated for hazardous locations, so applications requiring explosion-proof or specialized containment should consider alternative models or additional enclosure options.
The unit includes a dimmable driver designed to work with compatible lighting controls and schemes. For best results, pair it with controls rated for 277–480 VAC fixtures and follow Eaton Crouse-Hinds installation guidelines to ensure proper dimming performance and consistent lumen output.
LED technology provides longer life and reduced maintenance intervals compared with HID lamps, translating to lower maintenance labor and lamp-replacement costs. Higher efficacy (131 lm/W) and a high lumen output enable fewer fixtures for the same area, delivering faster payback and improved total cost of ownership in warehouses, yards, and general industrial lighting.
