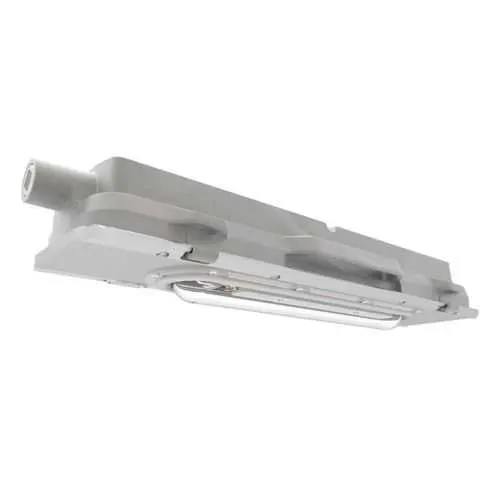

Eaton Crouse-Hinds PLLA2CS-UNV1-S903D-EM1-M2 Luminaire - 4X

Part Number: PLLA2CS-UNV1-S903D-EM1-M2
PLLA2CS-UNV1-S903D-EM1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PLLA2CS-UNV1-S903D-EM1-M2
Category

Quick Summary

Eaton Crouse-Hinds PLLA2CS-UNV1-S903D-EM1-M2 LED fixture delivers reliable, efficient illumination for industrial facilities. Engineers often struggle with limited space, maintenance downtime, and noncompliant lighting in harsh environments. It carries IP67/IP66 ingress protection, a NEMA 4X rating, and NEC/CEC compliance, with integral emergency battery back-up. In practice, this means safer operation, longer maintenance intervals, and lower lifecycle costs for modern facilities. The 4000 lumen output at 132 lm/W and 30 W power ensure strong, uniform coverage across shop floors. Universal mounting, diffused polycarbonate lens, and a copper-free aluminum housing simplify installation while boosting durability and service life. Plus, the integral emergency battery back-up supports code-compliant emergency illumination without extra components. The integration-friendly voltage range of 120-277 Vac and 127/250 Vdc enables rapid upgrades and multi-site deployments.

Product Information

Extended Description

PLLA2CS-UNV1-S903D-EM1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PLLA linear LED, Cool, 3/4", Natural alum finish, 2 ft, Diff polycarb lens, 4000 lm, 132 lm/W, Copper-free alum, Ceil/swivel mt, Wide, >0.92 PF, Integral emerg battery, 120-277 Vac, 127/250 Vdc, 30W
Product Name
Eaton Crouse-Hinds series Champ Pro PLLA linear LED light fixture
Catalog Number
PLLA2CS-UNV1-S903D-EM1-M2
UPC
786689716837
Product Length/Depth
24 in
Product Height
6.57 in
Product Width
7.13 in
Product Weight
19.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP67 IP66
Lamp type
LED
Color temperature
Cool white
Lamp length
2 ft
Lumens
4000
Lumens per watt
132
Optical distribution
Wide
Mounting Method
Ceiling/swivel
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Diffused polycarbonate
Entry size
3/4"
Finish
Natural aluminum
Material
Copper-free aluminum
Wattage
30W
Power factor
> 0.92
Special features
Integral emergency battery back-up
Crouse-Hinds series Champ PLLA LED Linear brochure Crouse-Hinds series Champ PLLA LED Linear brochure Crouse-Hinds series Champ PLLA LED Linear brochure Crouse-Hinds series Champ Pro PLLA LED Linear catalog page Champ Pro PLLA Industrial Linear LED Light Fixtures UL certification (PLLA4 with Battery Back-up) Champ Pro PLLA Industrial Linear LED Light Fixtures UL certification (PLLA4 with Battery Back-up) Champ Pro PLLA Industrial Linear LED Light Fixtures UL certification (PLLA4 with Battery Back-up) Champ Pro PLLA Industrial Linear LED Light Fixtures UL certification (PLLA4 with Battery Back-up) IF 1941 - Champ Linear PLLA M2 LED Light Engine Fixtures IF 1941 - Champ Linear PLLA M2 LED Light Engine Fixtures IF 1941 - Champ Linear PLLA M2 LED Light Engine Fixtures Champ Pro PLLA LED Industrial Linear Champ Pro PLLA LED Industrial Linear
The PLLA2CS-UNV1-S903D-EM1-M2 delivers 4000 lumens at 132 lm/W from a compact 30 W design, reducing fixture counts and lowering energy costs while maintaining excellent coverage for manufacturing floors and corridors. This high efficiency translates to measurable ROI through lower electricity use and minimized cooling load in typical industrial spaces. The IP67/IP66 ingress protection and NEMA 4X rating protect against dust, water sprays, and washdown environments, decreasing maintenance frequency and replacement expenses for facilities with rigorous cleanliness requirements. Ceiling/swivel mounting and a diffused polycarbonate lens enable flexible installation and uniform light distribution, reducing glare and hot spots across racks, tooling, and mezzanines. Copper-free aluminum housing, natural finish, and a 24 in length simplify field wiring and inventory management. The unit supports 120-277 Vac, 127/250 Vdc, and 50/60 Hz, enabling multi-site deployments with minimal wiring changes. An integral emergency battery back-up adds compliance for emergency lighting without requiring separate packs, improving safety and simplifying maintenance budgets. Together, these features deliver consistent color temperature, predictable lumen maintenance, and a streamlined deployment path for Champ Pro PLLA luminaires across industrial facilities.

Get a Quick Quote for a Eaton Crouse-Hinds PLLA2CS-UNV1-S903D-EM1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PLLA2CS-UNV1-S903D-EM1-M2? Enquire Now

FAQs

This fixture uses a ceiling/swivel mounting with a 3/4" entry for standard conduit and raceway configurations. The copper-free aluminum housing, 24 in length, and diffused polycarbonate lens support quick alignment, minimal drilling, and easy integration with common industrial ceiling grids and electrical boxes. Plan for a robust support bracket and verify IP67/IP66 ratings align with your washdown or dusty environments.
The PLLA2CS-UNV1-S903D-EM1-M2 outputs 4000 lumens at 132 lm/W with a 30 W draw, delivering bright, uniform illumination. It operates from 120-277 Vac and 127/250 Vdc at 50/60 Hz with a PF > 0.92, reducing energy costs and improving power quality in mixed-voltage facilities. These specs support fewer fixtures for equivalent coverage and better reliability across varying plant loads.
Yes. The unit features IP67/IP66 ingress protection and a NEMA 4X rating, making it appropriate for Ordinary/Non-Hazardous Locations and challenging environments where dust, moisture, and cleaning processes are common. NEC/CEC compliance further ensures safe, code-conforming installation across industrial sites.
The luminaire adheres to NEC/CEC standards and carries NEMA 4X and IP67/IP66 protections, with UL-certified emergency battery backup capabilities. It is designed for ordinary locations with a robust build that withstands typical industrial exposure, simplifying regulatory compliance and audits for manufacturing and distribution facilities.
Integral emergency back-up reduces the need for external battery packs and minimizes wiring and maintenance complexity. This delivers faster code-compliant emergency lighting installation, lowers total installed cost, and improves safety readiness during power outages, contributing to faster ROI and lower lifecycle maintenance costs.
