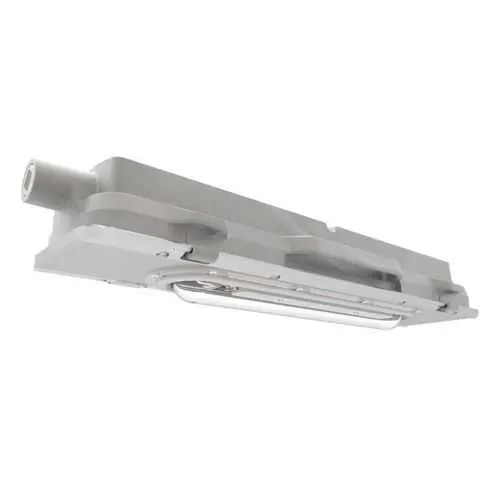

Eaton Crouse-Hinds PLLA2P12-UNV1-M2 Linear LED Light Fixture - IP66/IP67

Part Number: PLLA2P12-UNV1-M2
PLLA2P12-UNV1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PLLA2P12-UNV1-M2
Category

Quick Summary

PLLA2P12-UNV1-M2 is a linear LED light fixture designed for industrial illumination in harsh, non-hazardous locations. For engineers and procurement teams, reliability, ingress protection, and energy efficiency are persistent pain points in facility lighting. This unit delivers IP66 and IP67 protection, NEMA 4X durability, and NEC/CEC compliance, with UL Marine certifications supporting extreme environments. Coupled with 4000 lumens at 132 lm/W and a flexible 120–277 Vac/127/250 Vdc supply, it supports fast retrofits and reduces spare-part inventories, while delivering clear, uniform light for outdoor yards, walkways, and general industrial spaces.

Product Information

Extended Description

PLLA2P12-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PLLA linear LED light fixture, Cool white, 3/4" entries, Natural alum finish, 2 ft, Glass lens, 4000 lm, 132 lm/W, Copper-free alum, Pole mount, 1.25" dia, Wide, >0.92 PF, 120-277 Vac, 127/250 Vdc, 30W
Product Name
Eaton Crouse-Hinds series Champ Pro PLLA linear LED light fixture
Catalog Number
PLLA2P12-UNV1-M2
UPC
786689660987
Product Length/Depth
24 in
Product Height
7.56 in
Product Width
7.13 in
Product Weight
15.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Color temperature
Cool white
Lamp length
2 ft
Lumens
4000
Lumens per watt
132
Optical distribution
Wide
Mounting Method
Pole mount, 1.25" diameter
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Glass
Entry size
3/4"
Finish
Natural aluminum
Material
Copper-free aluminum
Wattage
30W
Power factor
> 0.92
Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Global LED lighting portfolio Crouse-Hinds series Champ Pro PLLA LED Linear catalog page Champ Pro PLLA Industrial Linear LED Light Fixtures UL certification (Marine) Champ Pro PLLA Industrial Linear LED Light Fixtures UL certification (Marine) Champ Pro PLLA Industrial Linear LED Light Fixtures UL certification (Marine) IF 1941 - Champ Linear PLLA M2 LED Light Engine Fixtures IF 1941 - Champ Linear PLLA M2 LED Light Engine Fixtures IF 1941 - Champ Linear PLLA M2 LED Light Engine Fixtures Eaton Specification Sheet - PLLA2P12-UNV1-M2 Eaton Specification Sheet - PLLA2P12-UNV1-M2
High-efficiency output translates directly to lower energy costs and reduced heat load in busy facilities. With 4000 lumens at 132 lm/W in a compact 2 ft form factor, this fixture delivers ample brightness for aisles, yards, and outdoor work areas. Durability is built in with IP66/IP67 protection and a NEMA 4X enclosure, ensuring reliable operation in washdowns and harsh weather. The robust copper-free aluminum housing with a natural finish resists corrosion and supports long service life in chemical plants, offshore facilities, and outdoor locations. Flexible power options simplify installation and reduce spare parts: 120–277 Vac, 50/60 Hz, and 127/250 Vdc, while the 2 ft length, 1.25" diameter pole-mount compatibility, and glass lens provide easy retrofits and wide optical distribution. Comprehensive documentation, including installation sheets and spec guides, accelerates commissioning and ensures code-compliant installations. This fixture’s performance aligns with NEC/CEC requirements, UL marine certifications, and industry best practices for LED linear lighting in industrial facilities.

Get a Quick Quote for a Eaton Crouse-Hinds PLLA2P12-UNV1-M2

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds PLLA2P12-UNV1-M2? Enquire Now

FAQs

Installation requires a 2 ft long luminaire with a pole-mount option for 1.25 inch diameter supports. The unit uses a 3/4 inch entry and a glass lens, with a copper-free aluminum housing rated for IP66/IP67 and NEMA 4X environments. Plan for mounting height and coverage to achieve the 4000 lumen output with a wide distribution, and ensure power wiring supports 120–277 Vac (50/60 Hz) or 127/250 Vdc where applicable.
Yes. The PLLA2P12-UNV1-M2 is designed for a broad input range of 120–277 Vac at 50/60 Hz, plus 127/250 Vdc options in certain configurations. This wide voltage tolerance simplifies site wiring, reduces inventory of multiple drivers, and supports reliable performance across typical industrial power systems while maintaining a high power factor (>0.92).
This fixture is built for ordinary/non-hazardous locations and supports challenging environments through IP66/IP67 ingress protection and a NEMA 4X enclosure. It performs well in washdown areas, damp outdoor locations, and exposed industrial spaces, including chemical plants and facilities requiring marine-grade certification compatibility. The copper-free aluminum construction adds corrosion resistance in demanding environments.
Key benefits include 4000 lumens at 132 lm/W efficiency, a 2 ft form factor, and wide optical distribution with a glass lens for uniform lighting. The fixture’s 120–277 Vac input and durable IP66/IP67 protection enable reliable operation with reduced maintenance and lower energy consumption. This supports safer, more productive workspaces and cost-effective retrofits in existing facilities.
A comprehensive package is available, including installation instructions IF1941/IF1938/IF1948, Eaton specification sheets, and the PLLA LED catalog pages. Additional certifications referenced include UL certification (Marine) and NEC/CEC compliance. Access to PDFs and catalogs from Eaton’s lighting portfolio aids pre-approval, commissioning, and ongoing maintenance planning.
