PLLA4CW-UNV1-S903-M2

Part Number: PLLA4CW-UNV1-S903-M2
PLLA4CW-UNV1-S903-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PLLA4CW-UNV1-S903-M2
Category

Product Information

Extended Description

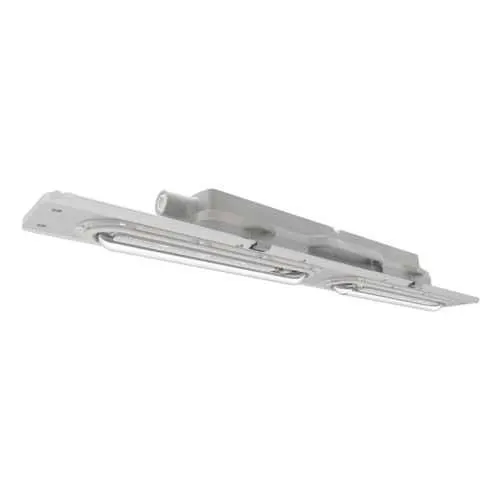

PLLA4CW-UNV1-S903-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PLLA linear LED light fixture, Cool white, 3/4" entries, Natural alum finish, 4 ft, Polycarb lens, 8000 lm, 135 lm/W, Copper-free alum, Ceil/wall mt offset, Wide, >0.94 PF, 120-277 Vac, 127/250 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Champ Pro PLLA linear LED light fixture
Catalog Number
PLLA4CW-UNV1-S903-M2
UPC
786689661090
Product Length/Depth
39 in
Product Height
8.08 in
Product Width
7.13 in
Product Weight
19.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Color temperature
Cool white
Lamp length
4 ft
Lumens
8000
Lumens per watt
135
Optical distribution
Wide
Mounting Method
Ceiling/wall offset
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Entry size
3/4"
Finish
Natural aluminum
Material
Copper-free aluminum
Wattage
59W
Power factor
> 0.94
