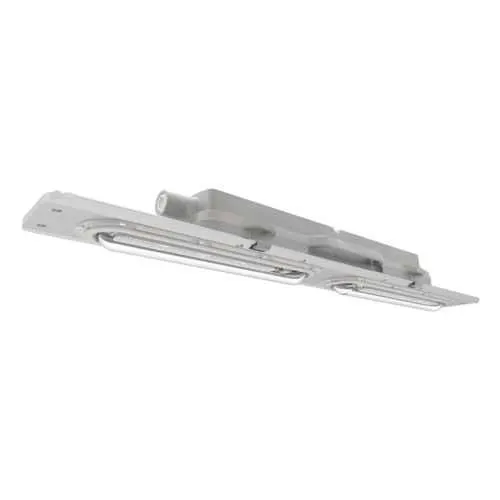

Eaton Crouse-Hinds PLLAW4-CW-UNV1-S903-SRG1-M2 LED Linear Light Fixture - IP66/IP67
Part Number: PLLAW4-CW-UNV1-S903-SRG1-M2
Manufacturer
Eaton Crouse-Hinds
Part number
PLLAW4-CW-UNV1-S903-SRG1-M2
Category
Quick Summary
PLLAW4-CW-UNV1-S903-SRG1-M2 LED linear light fixture delivers high-efficiency industrial illumination for harsh environments. For engineers and maintenance teams, downtime and frequent replacements are major cost drivers in non-hazardous facilities. This luminaire combines rugged copper-free aluminum housing, a polycarbonate lens, and a natural aluminum finish to withstand washdown and vibration while preserving optical performance. It carries critical certifications for safe, compliant operation in ordinary locations, including NEC/CEC standards, NEMA 4X protection, and IP66/IP67 ingress protection, ensuring reliability in challenging spaces. The design also emphasizes energy efficiency and installation ease, with 120-277 VAC or 127/250 VDC operation, 50/60 Hz, and ceiling/wall offset mounting. This makes it a strong fit for industrial lighting solutions, delivering uptime and lower operating costs.
Product Information
Extended Description
PLLAW4-CW-UNV1-S903-SRG1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PLLA linear LED, Warm white, 3/4" entries, Natural alum finish, 4 ft, Polycarb lens, 8000 lm, 135 lm/W, Copper-free alum, Ceil/wall mt offset, Wide, >0.94 PF, ≥10kV surge, 120-277 Vac, 127/250 Vdc, 59W
Product Name
Eaton Crouse-Hinds series Champ Pro PLLA linear LED light fixture
Catalog Number
PLLAW4-CW-UNV1-S903-SRG1-M2
UPC
786689806965
Product Length/Depth
39 in
Product Height
8.08 in
Product Width
7.13 in
Product Weight
23.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Color temperature
Warm white
Lamp length
4 ft
Lumens
8000
Lumens per watt
135
Optical distribution
Wide
Mounting Method
Ceiling/wall offset
Voltage rating
120-277 Vac, 127/250 Vdc
Frequency rating
50/60 Hz
Lens material
Polycarbonate
Entry size
3/4"
Finish
Natural aluminum
Material
Copper-free aluminum
Wattage
59W
Power factor
> 0.94
Special features
120-277 VAC integrated ≥ 10kV surge protection module
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Champ Pro PLLA LED Linear catalog page
Champ Pro PLLA Industrial Linear LED Light Fixtures Canadian certification
Champ Pro PLLA Industrial Linear LED Light Fixtures Canadian certification
Champ Pro PLLA Industrial Linear LED Light Fixtures Canadian certification
IF 1938 - Champ Pro Linear PLLA M2 LED Fixtures
IF 1938 - Champ Pro Linear PLLA M2 LED Fixtures
IF 1938 - Champ Pro Linear PLLA M2 LED Fixtures
Champ Pro PLLA LED Industrial Linear
Champ Pro PLLA LED Industrial Linear
Feature: 8000 lumens at 59W with 135 lm/W; Business Impact: high-efficiency output reduces energy consumption while maintaining bright, uniform illumination; Application: factory floors and wide-coverage corridors. Feature: IP66/IP67 ingress protection and NEMA 4X rating; Business Impact: superior protection against dust, water, and corrosion reduces downtime in washdown areas; Application: chemical and general industrial spaces. Feature: 4 ft lamp length and 39 in housing length with a 3/4" entry; Business Impact: broad spatial coverage with flexible mounting options lowers installation time and ballast requirements; Application: overhead and wall-mounted applications. Feature: 120-277 VAC input or 127/250 VDC operation; Business Impact: flexible power compatibility reduces inventory and retrofit complexity; Application: multi-site facilities with varying electrical systems. Feature: integrated surge protection ≥ 10 kV and PF > 0.94; Business Impact: enhanced reliability and protection for sensitive control electronics; Application: critical manufacturing lines and process areas. Feature: copper-free aluminum housing, natural aluminum finish; Business Impact: long-term corrosion resistance lowers maintenance costs; Application: environments with washdowns and potential exposure to moisture.
Get a Quick Quote for a Eaton Crouse-Hinds PLLAW4-CW-UNV1-S903-SRG1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PLLAW4-CW-UNV1-S903-SRG1-M2?
Enquire Now
FAQs
The fixture is designed for ceiling or wall offset mounting with a 39 in body length and a 4 ft lamp. Install using standard mounting hardware compatible with the 3/4" entry. It supports 120-277 VAC or 127/250 VDC operation and 50/60 Hz, allowing straightforward retrofits on existing runs without additional wiring adapters.
It combines IP66/IP67 ingress protection with a NEMA 4X enclosure and a copper-free aluminum housing, plus a polycarbonate lens. These features resist dust, water, and corrosion, ensuring reliable operation in washdown zones and harsh environments typical of industrial facilities.
Plan for either 120-277 VAC or 127/250 VDC supply with 50/60 Hz. The luminaire delivers 59W and 8000 lm with a PF greater than 0.94, and includes an integrated surge protection module rated ≥10 kV, helping protect connected controls and extending life in demanding electrical infrastructures.
The unit is certified for NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Location use. Its NEMA 4X rating and IP66/IP67 ingress protection provide the necessary safety margin in typical industrial spaces that do not require hazardous-area certifications.
Documentation is available through Eaton’s resources: installation sheets IF 1938/IF 1948/IF 1941, the Champ Pro PLLA LED spec guide, and the PLLA photometric data. These assets walk you through mounting, wiring, and performance verification to support fast, compliant commissioning.
