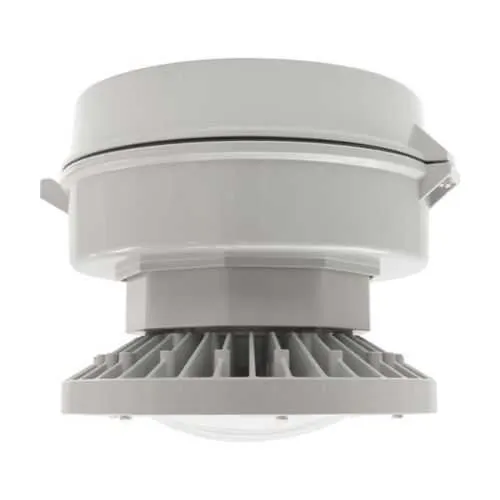

Eaton Crouse-Hinds PVMA5L/UNV1 Champ Pro PVMA LED - Type V
Part Number: PVMA5L/UNV1S903
Quick Summary
PVMA5L/UNV1 is a Champ Pro LED light fixture designed for low-bay industrial lighting in harsh environments. Operators struggle with unreliable illumination in non-hazardous facility areas and rising maintenance costs. It meets NEC/CEC and IEC standards and is certified for ordinary/non-hazardous locations, helping ease regulatory acceptance. The unit combines energy-efficient performance with a rugged die-cast aluminum housing and heat-resistant glass lens to withstand demanding plants. With 5000 lumens and a 75 lm/W efficiency, it lowers operating costs while maintaining high visibility. This LED solution integrates seamlessly with 120–277 VAC or 127–300 VDC power, supporting standard downstream gear and common mounting practices in warehouses and manufacturing spaces.
Product Information
Extended Description
PVMA5L/UNV1S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture, Cool white, 150W MH, 50/60 Hz, Polycarbonate lens, 5000 lumens, 122 lm/W, Die cast aluminum, No mounting module, Type V optics, >0.90 PF, 48W
Product Name
Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture
Catalog Number
PVMA5L/UNV1S903
UPC
662276826243
Product Length/Depth
10.18 in
Product Height
7.1 in
Product Width
10.18 in
Product Weight
13.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
Lumens
5000
Lumens per watt
75
Color temperature
Cool white
Mounting Method
No mounting module
Optical distribution
Type V
Voltage rating
120-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Material
Die cast aluminum
Lens material
Polycarbonate
Wattage
48W
Equivalent luminaire
150W MH
Power factor
> 0.90
Eaton Crouse-Hinds PVMA5L/UNV1S903 3D drawing
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED catalog page
Champ Pro PVMA Low Bay Industrial LED Light Fixtures Canadian certification
Champ Pro PVMA Low Bay Industrial LED Light Fixtures Canadian certification
IM0454 - Champ Pro PVMA LED
Champ Pro PVMA Low Bay Industrial LED
Champ Pro PVMA Low Bay Industrial LED
High-efficiency LED platform delivers 5000 lumens at 48W, delivering about 75 lm/W. This directly reduces energy costs and minimizes heat generation in occupied spaces, extending equipment life. Ideal for general industrial spaces such as warehouses and factory floors where reliable visibility matters. Rugged die-cast aluminum housing paired with heat and impact resistant glass lens reduces maintenance in harsh environments. This durability translates to longer service intervals and safer operation in areas with vibration or exposure. Type V optical distribution provides broad, uniform coverage. With fewer fixtures needed, total installed cost and wiring complexity drop. Suitable for open-ceiling layouts and high-bay configurations. Wide voltage range 120–277 VAC and 127–300 VDC plus 50/60 Hz compatibility simplifies procurement and reduces inventory for multinational facilities. No mounting module required. Installation is faster and less expensive with standard mounting hardware, reducing downtime during retrofit projects.
Get a Quick Quote for a Eaton Crouse-Hinds PVMA5L/UNV1S903
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PVMA5L/UNV1S903?
Enquire Now
FAQs
PVMA5L/UNV1 uses no mounting module, simplifying installation. For retrofits or new builds, use standard mounting hardware compatible with your ceiling or frame system. This approach reduces part variety and speeds up installation, while maintaining secure, vibration-resistant mounting in warehouses and manufacturing spaces.
Key specs include 5000 lumens at 48W (about 75 lm/W), cool white color, and a voltage range of 120–277 VAC or 127–300 VDC with 50/60 Hz. The optical distribution is Type V, and the power factor is greater than 0.90, ensuring efficient operation and compliance with power-quality requirements in typical industrial facilities.
Yes. PVMA5L/UNV1 is rated for Ordinary/Non-Hazardous Locations and uses a robust die-cast aluminum housing with heat and impact resistant glass. This makes it well-suited for warehouses, production floors, and other general industrial spaces that require dependable, compliant lighting without specialized hazardous-location certification.
The fixture aligns with NEC/CEC IEC standards and is certified for ordinary/non-hazardous locations. This supports regulatory acceptance across regions, simplifies approvals for facility upgrades, and reduces risk when integrating the luminaire into existing electrical systems and safety programs.
The LED solution delivers energy savings (5000 lm at 48W with ~75 lm/W) and reduced maintenance due to long-life LED technology. The combination of high efficiency, durable housing, and robust optics lowers operating costs, minimizes downtime, and lowers total cost of ownership for warehouses and factories over the fixture’s service life.
