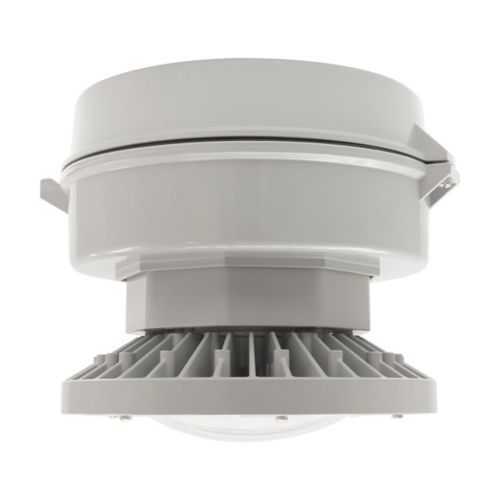

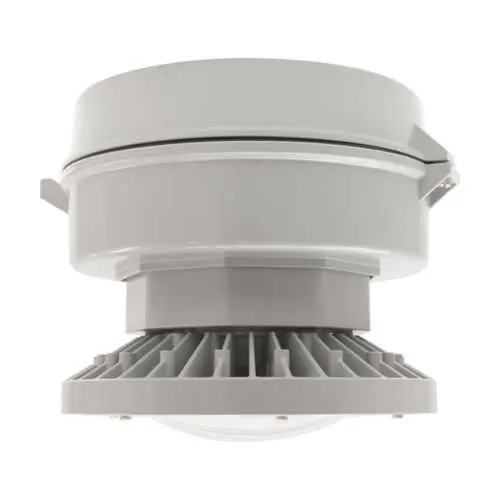

Eaton Crouse-Hinds PVMA5L2TW/UNV1 LED Fixture-PF>0.90
Part Number: PVMA5L2TW/UNV1
Quick Summary
PVMA5L2TW/UNV1 LED light fixture delivers high-efficiency illumination for industrial spaces. Engineers often struggle with legacy HID systems that waste energy and require frequent maintenance. This fixture meets NEC/CEC/IEC standards and UL certifications, making it suitable for Ordinary/Non-Hazardous Locations. It supports broad voltage ranges 120–277 Vac and 127–300 Vdc with 50/60 Hz operation, delivering a reliable 5000-lumen output. The die-cast aluminum housing, heat and impact resistant glass lens, and Type V optics contribute to long life and uniform brightness. The design also aligns with retrofit projects by matching lumen output to legacy 150W HID, while PF > 0.90 helps minimize electrical losses and ensure site reliability.
Product Information
Extended Description
PVMA5L2TW/UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture, Cool white, 150W MH, 50/60 Hz, Heat and impact resistant glass lens, 5000 lumens, 122 lm/W, Die cast aluminum, Wall mount, Type V optics, >0.90 PF, 3/4" trade size, 48W
Product Name
Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture
Catalog Number
PVMA5L2TW/UNV1
UPC
662276822054
Product Length/Depth
13.96 in
Product Height
9.5 in
Product Width
10.18 in
Product Weight
16.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
Lumens
5000
Lumens per watt
75
Color temperature
Cool white
Mounting Method
Wall
Trade size
100-240 Vac, 127-250 Vdc
Optical distribution
Type V
Voltage rating
120-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Wattage
48W
Equivalent luminaire
150W MH
Power factor
> 0.90
Eaton Crouse-Hinds PVMA5L2TW/UNV1 3D drawing
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED catalog page
Champ Pro PVMA Low Bay Industrial LED Light Fixtures UL certification
Champ Pro PVMA Low Bay Industrial LED Light Fixtures UL certification
IM0454 - Champ Pro PVMA LED
Eaton Specification Sheet - PVMA5L2TW/UNV1
Eaton Specification Sheet - PVMA5L2TW/UNV1
Feature: High lumen output and efficiency (5000 lm, 48W, 75 lm/W). Business impact: Reduces energy consumption and cooling load, lowering operating costs in warehouses and manufacturing floors. Application: General area lighting and task lighting in industrial spaces. Feature: Rugged die-cast aluminum housing and heat/impact resistant glass lens. Business impact: Extends service life in vibration-prone environments and reduces maintenance frequency. Application: Harsh factory settings, wall-mounted luminaires near equipment. Feature: Flexible electrical compatibility (120-277 Vac, 127-300 Vdc) and 50/60 Hz operation. Business impact: Simplifies multi-site deployments and inventory, speeding up installation and reducing panel diversity. Application: Retrofit projects across regional facilities. Feature: Type V optical distribution for uniform brightness. Business impact: Minimizes hot spots, improves worker safety, and supports standards-compliant lighting layouts. Application: Racking areas, aisles, and general production zones. Feature: PF > 0.90 and HID-equivalent performance (150W MH). Business impact: Meets energy codes while preserving light quality and lumen parity, reducing lifecycle costs. Application: Replacements and retrofits from legacy HID systems. Feature: Wall mounting and standard 3/4" trade size. Business impact: Easy installation with existing hardware, lowering labor time and disruption. Application: Retrofit in warehouses, manufacturing floors, and service bays.
Get a Quick Quote for a Eaton Crouse-Hinds PVMA5L2TW/UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PVMA5L2TW/UNV1?
Enquire Now
FAQs
PVMA5L2TW/UNV1 is designed for simple wall mounting with a standard 3/4 inch trade size and compatible with 120-277 Vac or 127-300 Vdc supply. Plan for a direct power connection, secure the housing to the wall, and align Type V optics for uniform distribution. Ensure site power is de-energized during installation and verify wiring matches the voltage range on site.
You can expect around 5000 lumens with a 48W input, yielding approximately 75 lm/W. The fixture operates at 50/60 Hz with PF greater than 0.90 and uses cool white LED for clear visibility. The Type V optical distribution helps create uniform lighting across general industrial areas.
Yes. The product is specified for Ordinary/Non-Hazardous Locations and carries NEC/CEC/IEC standards, along with UL certifications. It is designed for wall-mounted, general lighting in non-hazardous industrial settings, providing reliable performance with compliant electrical characteristics.
PVMA5L2TW/UNV1 complies with NEC/CEC/IEC standards and carries UL certification for industrial lighting. This includes UL listings for Champ Pro PVMA Low Bay fixtures, supporting safe operation in U.S. and Canadian markets and aligning with industry regulatory requirements.
The LED PVMA5L2TW/UNV1 reduces energy usage versus legacy HID systems (5000 lm at 48W) and offers long life with a rugged housing, lowering maintenance and replacement costs. Its wide voltage range and easy retrofit capability also minimize commissioning time and site disruption, delivering predictable operating costs over the life of the installation.
