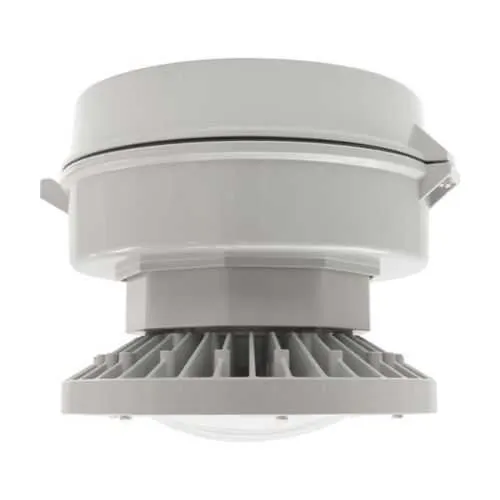

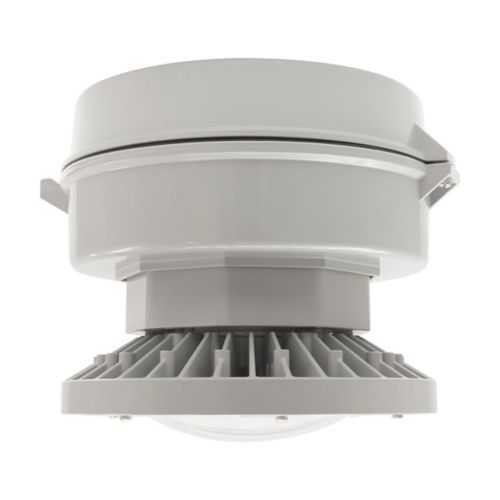

Eaton Crouse-Hinds PVMA5LJ/UNV1 LED - NEC/CEC
Part Number: PVMA5LJ/UNV1
Quick Summary
PVMA5LJ/UNV1 is an LED light fixture engineered for reliable low-bay illumination in industrial facilities, delivering consistent brightness in harsh environments. Operators often face glare, frequent maintenance, and energy waste when lighting becomes the bottleneck on production lines; this fixture addresses those pain points with a rugged lens, die-cast aluminum housing, and long service life. It complies with NEC/CEC/IEC standards, and carries UL certification for Canada, making it suitable for ordinary/non-hazardous locations. In practice, its 1-1/2 inch trade size, 25° stanchion mounting, Type V optics, and high power factor translate into safer installation, predictable performance, and lower total cost of ownership across industrial settings. The result is improved visibility, reduced downtime, and meaningful energy savings.
Product Information
Extended Description
PVMA5LJ/UNV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture, 150W MH, 50/60 Hz, Heat and impact resistant glass lens, 5000 lumens, 122 lm/W, Die cast aluminum, Stanchion 25° angled, Type V optics, >0.90 PF, 1-1/2" trade size, 48W
Product Name
Eaton Crouse-Hinds series Champ Pro PVMA LED light fixture
Catalog Number
PVMA5LJ/UNV1
UPC
662276822061
Product Length/Depth
14.57 in
Product Height
11.26 in
Product Width
7.86 in
Product Weight
15.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
Lumens
5000
Lumens per watt
75
Color temperature
Cool white
Mounting Method
Stanchion 25° angled
Trade size
1-1/2"
Optical distribution
Type V
Voltage rating
120-277 Vac, 127-300 Vdc
Frequency rating
50/60 Hz
Material
Die cast aluminum
Lens material
Heat and impact resistant glass
Wattage
48W
Equivalent luminaire
150W MH
Power factor
> 0.90
Eaton Crouse-Hinds PVMA5LJ/UNV1 3D drawing
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED brochure
Crouse-Hinds series Champ Pro PVMA LED catalog page
Champ Pro PVMA Low Bay Industrial LED Light Fixtures Canadian certification
Champ Pro PVMA Low Bay Industrial LED Light Fixtures Canadian certification
IM0454 - Champ Pro PVMA LED
Eaton Specification Sheet - PVMA5LJ/UNV1
Eaton Specification Sheet - PVMA5LJ/UNV1
Feature: 5000 lumen output at 75 lm/W combines high intensity with efficiency; Business Impact: lower energy consumption per lumen and reduced operating costs; Application: ideal for long shifts in warehouses and manufacturing floors. Feature: Die-cast aluminum housing with a heat and impact resistant glass lens; Business Impact: rugged durability reduces maintenance cycles and extends service life; Application: strong performance in harsh factory environments. Feature: Wide electrical compatibility—120-277 Vac and 127-300 Vdc across 50/60 Hz with PF > 0.90; Business Impact: consistent brightness and minimal power quality issues amid mixed power systems; Application: retrofit and new builds in mixed facility power architectures. Feature: Type V optical distribution with 1-1/2" trade size and 25° angled stanchion mounting; Business Impact: broad coverage and flexible mounting simplify installation and retrofit projects; Application: low bay areas requiring uniform illumination. Feature: Ordinary/Non-Hazardous Location rating with NEC/CEC/IEC compliance and UL Canada certification; Business Impact: regulatory assurance and safe operation, reducing risk during audits; Application: industrial spaces where compliance and straight-forward maintenance matter. The overall design is aligned with Champ Pro PVMA families for easy integration and scalable lighting upgrades.
Get a Quick Quote for a Eaton Crouse-Hinds PVMA5LJ/UNV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds PVMA5LJ/UNV1?
Enquire Now
FAQs
PVMA5LJ/UNV1 uses a 1-1/2 inch trade size and a stanchion mounting with a 25° angle, aligning with the Champ Pro PVMA family for straightforward retrofits. The Type V optical distribution ensures consistent coverage, while the rugged die-cast aluminum housing supports easy integration into existing low-bay installations without major rework.
Core specs include 5000 lumens at 75 lm/W, PF > 0.90, voltage rating 120-277 Vac and 127-300 Vdc, frequency 50/60 Hz, and 48W wattage. The luminaire uses heat and impact resistant glass and Type V optics for wide distribution, enabling reliable operation in ordinary/non-hazardous environments.
Yes. The product is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC/IEC standards, making it suitable for warehouses, manufacturing floors, and similar non-hazardous industrial spaces where safety, visibility, and energy efficiency are priorities.
The luminaire complies with NEC/CEC/IEC standards and carries UL Canadian certification, supporting regulatory compliance in North American facilities. This combination provides confidence for audits and maintenance programs in industrial settings.
The fixture delivers energy-efficient lighting (5000 lumens at 75 lm/W) with a high PF, reducing energy costs and electrical noise. Its rugged construction lowers maintenance frequency, and its compatibility with the Champ Pro line simplifies upgrades, delivering lower total cost of ownership and improved uptime for operations.
